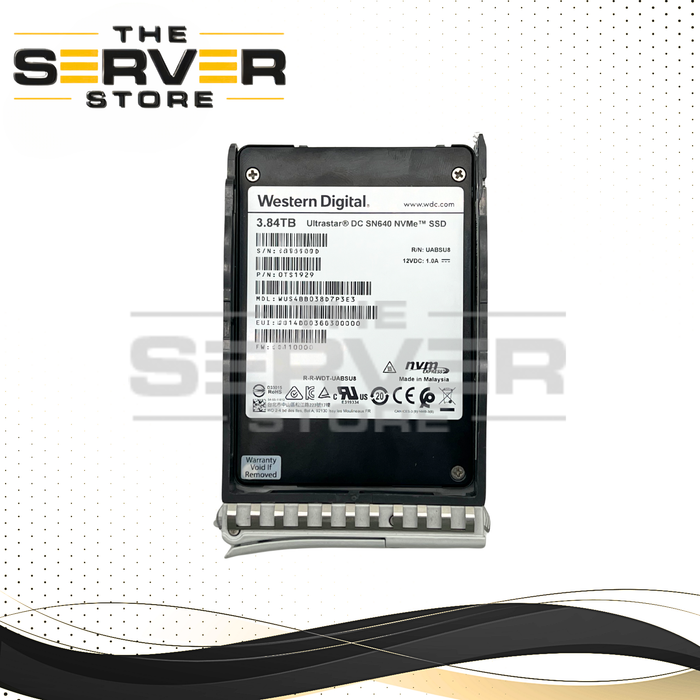

Western Digital (WD / HGST) 3.84TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD Ultrastar DC SN640 Series WUS4BB038D7P3E3 for Cisco UCS Server (Cisco UCS Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | WUS4BB038D7P3E3 |
| Manufacturer | Western Digital / HGST |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSDs) |
| Model | Ultrastar DC SN640 Series |
| Form Factor | SFF 2.5" SSD (Cisco UCS Tray Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Western Digital (WD / HGST) 3.84TB NVMe U.2 PCIe Gen3 x4 RI SFF 2.5" SSD Ultrastar DC SN640 WUS4BB038D7P3E3
Cisco UCS Compatible (Cisco UCS Drive Tray Included)
The Western Digital Ultrastar DC SN640 WUS4BB038D7P3E3 is a high-performance enterprise NVMe SSD engineered for cloud computing, virtualization, software-defined storage, content delivery networks, and modern data center deployments.
Featuring 3.84TB of enterprise storage capacity, the Ultrastar DC SN640 delivers exceptional reliability, ultra-low latency, and consistent performance for read-intensive workloads. Built with advanced 96-Layer BiCS4 3D TLC NAND Flash, this U.2 SSD utilizes a PCIe Gen 3.1 x4 NVMe 1.3 interface to provide the speed and responsiveness required for mission-critical server applications.
With sequential read speeds of up to 3,100 MB/s, sequential write speeds of up to 1,800 MB/s, and up to 434,000 random read IOPS, the SN640 is optimized for virtualized environments, cloud infrastructure, enterprise databases, and high-density storage platforms.
Designed for enterprise reliability, the drive includes advanced features such as Power Loss Protection (PLP), End-to-End Data Path Protection, Hot-Swap Support, and Instant Secure Erase (ISE). With a 2 million hour MTBF, 0.8 DWPD endurance rating, and 5,744 TBW, this SSD is built to deliver dependable long-term performance.
Cisco UCS Tray Compatibility

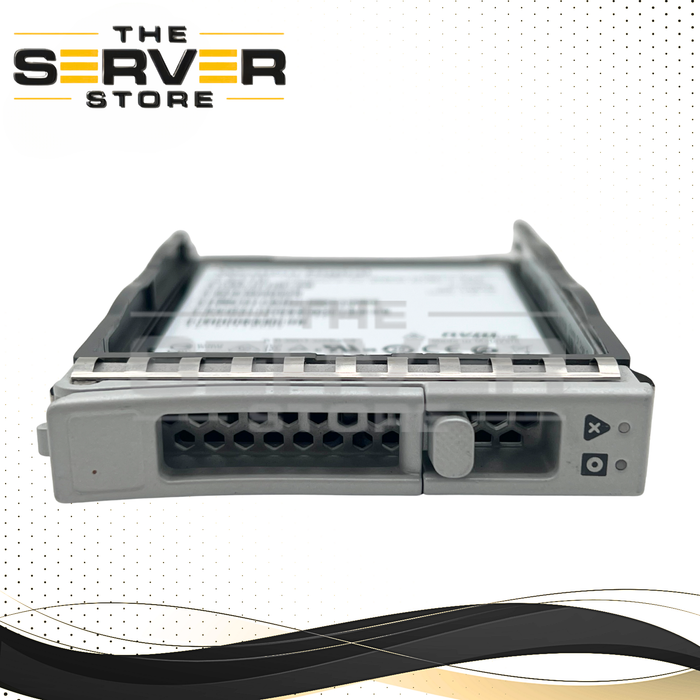

This drive includes a Cisco UCS Small Form Factor (SFF) Drive Tray, making it ready for installation in compatible Cisco UCS servers with U.2 NVMe drive support.
Compatible Cisco UCS Servers
- Cisco UCS C220 M5
- Cisco UCS C220 M6
- Cisco UCS C220 M7
- Cisco UCS C240 M5
- Cisco UCS C240 M6
- Cisco UCS C240 M7
- Cisco UCS S3260 Storage Server
- Cisco UCS X-Series Compute Nodes with NVMe storage support
- Cisco HyperFlex HX220 Series
- Cisco HyperFlex HX240 Series
Important Compatibility Notes
- Includes Cisco UCS Drive Tray
- Requires U.2 NVMe-compatible drive bays
- Requires NVMe-enabled backplane or controller
- Compatible with supported Cisco UCS servers
- Hot-swappable in supported configurations
- Not compatible with SATA-only drive bays
- Not compatible with SAS-only backplanes
- Compatibility depends on server configuration and firmware requirements
Key Features
- 3.84TB Enterprise NVMe SSD
- Ultrastar DC SN640 Series
- PCIe Gen 3.1 x4 Interface
- NVMe 1.3 Protocol
- 2.5" U.2 (SFF-8639) Form Factor
- Read Intensive (RI) Workload Optimized
- WD BiCS4 96-Layer 3D TLC NAND
- Up to 3,100 MB/s Sequential Read
- Up to 1,800 MB/s Sequential Write
- Up to 434,000 Random Read IOPS
- Power Loss Protection (PLP)
- End-to-End Data Protection
- Instant Secure Erase (ISE)
- Hot Plug / Hot Swap Support
- Enterprise-Class Reliability
- Cisco UCS Tray Included
Technical Specifications
- Manufacturer: Western Digital (WD) / HGST
- Series: Ultrastar DC SN640
- Model: WUS4BB038D7P3E3
- Product Type: Enterprise Read Intensive NVMe SSD
- Capacity: 3.84TB
- Form Factor: 2.5" U.2 (SFF-8639)
- Drive Height: 7mm
- Interface: PCIe Gen 3.1 x4
- Protocol: NVMe 1.3
- NAND Type: 96-Layer BiCS4 3D TLC NAND
- Workload Class: Read Intensive (RI)
- Security Type: Instant Secure Erase (ISE)
- Hot Swappable: Yes
Performance
- Sequential Read Speed: Up to 3,100 MB/s
- Sequential Write Speed: Up to 1,800 MB/s
- Random Read (4K): Up to 434,000 IOPS
- Random Write (4K): Up to 65,000 IOPS
- Mixed Random Workload (70/30): Up to 157,000 IOPS
- Interface Bandwidth: Up to 4 GB/s
Reliability & Endurance
- Endurance Rating: 0.8 DWPD
- Total Bytes Written (TBW): 5,744 TB
- MTBF: 2 Million Hours
- Power Loss Protection (PLP)
- End-to-End Data Path Protection
- Hot Plug / Hot Swap Support
- Instant Secure Erase (ISE)
Package Includes
- 1x Western Digital Ultrastar DC SN640 3.84TB NVMe SSD
- Model: WUS4BB038D7P3E3
- 1x Cisco UCS Drive Tray
Ideal Applications
- Cloud Computing
- Virtualization Infrastructure
- Enterprise Data Centers
- Hyper-Converged Infrastructure (HCI)
- Software Defined Storage
- Content Delivery Networks (CDN)
- Enterprise Databases
- High-Density Storage Arrays
- Server Boot Volumes
- Web Hosting Platforms
Please verify compatibility with your Cisco UCS server and NVMe storage configuration before purchasing.
