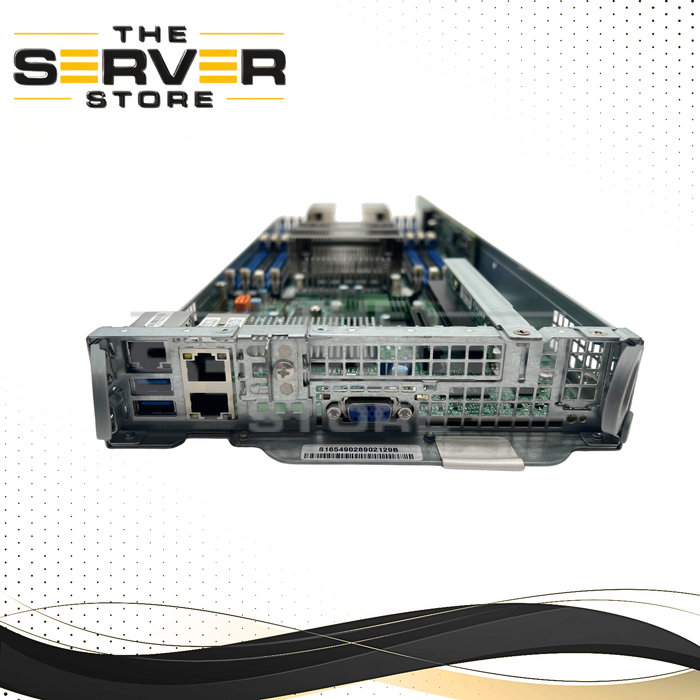

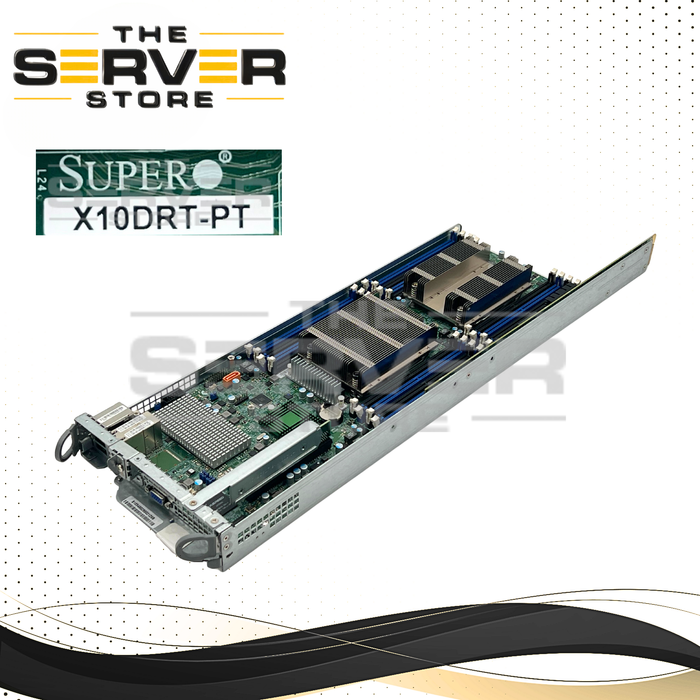

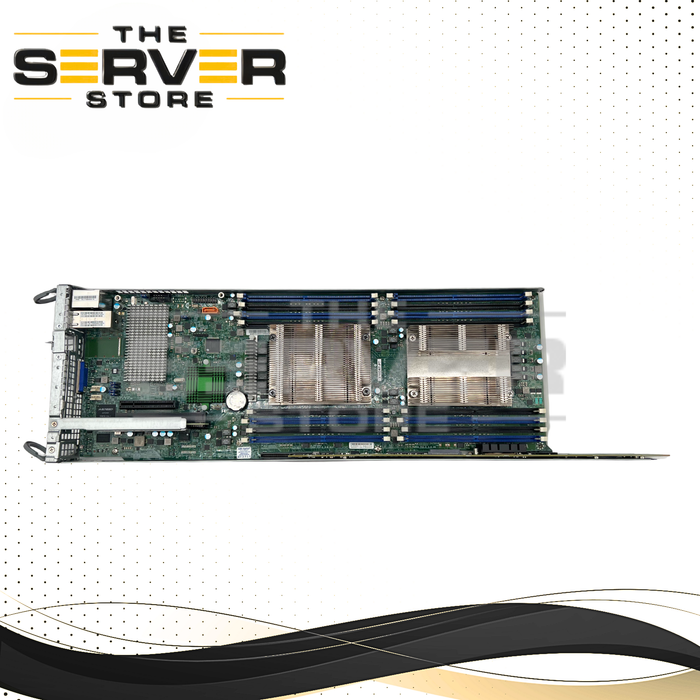

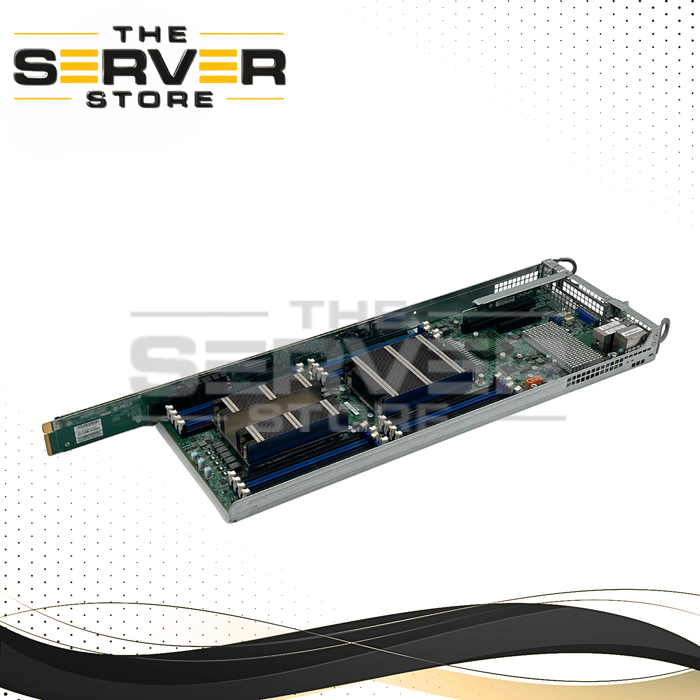

Supermicro Motherboard Dual LGA2011-3 Intel Xeon E5-2600 v3/v4 16x DDR4 DIMM TwinPro Node Board X10DRT-PT
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | X10DRT-PT |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | System Boards |
| Model | (with Heatsinks / CPU not included / Includes base metal) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Supermicro X10DRT-PT Dual Intel Xeon E5-2600 v3/v4 TwinPro Node Server Motherboard
The Supermicro X10DRT-PT is a high-performance enterprise server node motherboard engineered specifically for Supermicro TwinPro and TwinPro² multi-node server platforms. Designed for high-density computing environments, this proprietary node board supports dual Intel Xeon E5-2600 v3 and v4 processors, delivering the performance required for virtualization, cloud infrastructure, software-defined storage, HPC, and enterprise data center workloads.
Powered by the Intel C612 chipset, the X10DRT-PT features 16 DDR4 ECC DIMM slots supporting up to 2TB of memory, integrated dual-port 10GbE Base-T networking, advanced remote management capabilities, and flexible PCIe expansion. The onboard Intel X540 controller provides native dual 10GbE copper Ethernet connectivity, eliminating the need for a separate network adapter.
Designed exclusively for compatible Supermicro TwinPro systems, the X10DRT-PT operates as a hot-swappable compute node within multi-node chassis environments, maximizing rack density while reducing power and cooling costs.
Key Features
- Dual Socket R3 (LGA2011-3)
- Supports Intel Xeon E5-2600 v3 & v4 Processors
- Intel C612 Enterprise Chipset
- 16 DDR4 ECC DIMM Slots
- Up to 2TB ECC DDR4 Memory Support
- Supports DDR4 2400 / 2133 / 1866 / 1600 MHz
- Integrated Intel X540 Dual-Port 10GBase-T Networking
- PCIe 3.0 Expansion Support
- 10x SATA III 6Gb/s Ports
- RAID 0, 1, 5, and 10 Support
- ASPEED AST2400 BMC
- IPMI 2.0 Remote Management
- KVM-over-LAN Support
- Designed for TwinPro & TwinPro² Multi-Node Systems
Processor Support
Compatible with Intel Xeon E5-2600 v3 and E5-2600 v4 processor families, including:
- Xeon E5-2620 v3 / v4
- Xeon E5-2630 v3 / v4
- Xeon E5-2640 v3 / v4
- Xeon E5-2650 v3 / v4
- Xeon E5-2660 v3 / v4
- Xeon E5-2670 v3 / v4
- Xeon E5-2680 v3 / v4
- Xeon E5-2690 v3 / v4
- Xeon E5-2697 v3 / v4
- Xeon E5-2698 v3 / v4
- Xeon E5-2699 v3 / v4
Memory Specifications
- 16x 288-Pin DDR4 ECC DIMM Slots
- Supports RDIMM, LRDIMM, and 3DS LRDIMM
- Up to 2TB Maximum Memory Capacity
- ECC Error Correction Support
- Memory Speeds up to 2400MHz
Storage & Expansion
- 10x SATA III 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
- 1x PCIe 3.0 x16 Expansion Slot
- Proprietary PCIe Expansion Interfaces
- Dedicated Storage Controller Expansion Support
Networking & Management
- Intel X540 Dual-Port 10GBase-T Controller
- 2x Integrated 10GbE RJ45 Ports
- Dedicated IPMI Management Port
- ASPEED AST2400 BMC
- IPMI 2.0 Support
- KVM-over-LAN
- Remote Monitoring & Administration
Compatible Part Numbers
- X10DRT-PT
- MBD-X10DRT-PT
- X10DRT-PT-O
Compatible Supermicro Platforms
- SYS-1028TP Series
- SYS-2028TP Series
- SYS-2028TP-HTTR
- SYS-2028TP-DC1TR
- CSE-809 Series
- CSE-217 Series
- CSE-827 Series
- TwinPro & TwinPro² Multi-Node Systems
Important Compatibility Information
The X10DRT-PT is a proprietary TwinPro node motherboard and is not compatible with standard ATX, E-ATX, SSI-EEB, workstation, or rackmount server chassis. This board requires a compatible Supermicro TwinPro node tray and chassis infrastructure, including the matching midplane, power distribution system, and riser assemblies.
Ideal Applications
- Virtualization Hosts
- Private Cloud Infrastructure
- Hyper-Converged Infrastructure (HCI)
- Enterprise Databases
- High-Performance Computing (HPC)
- Data Analytics
- Software-Defined Storage
- Data Center Deployments
- Multi-Node Compute Clusters
