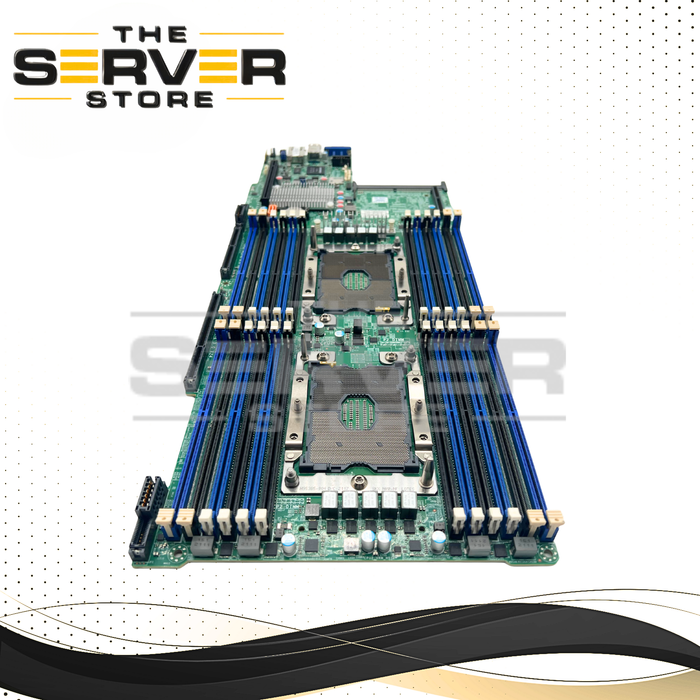

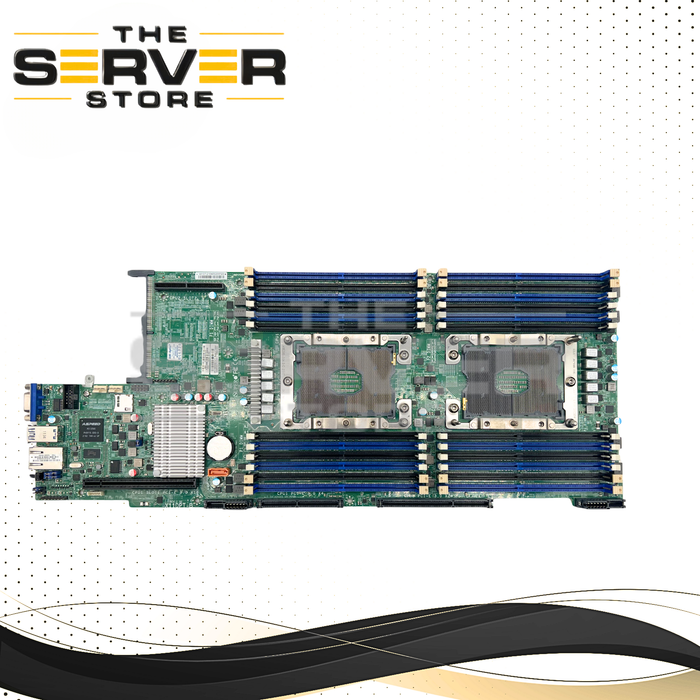

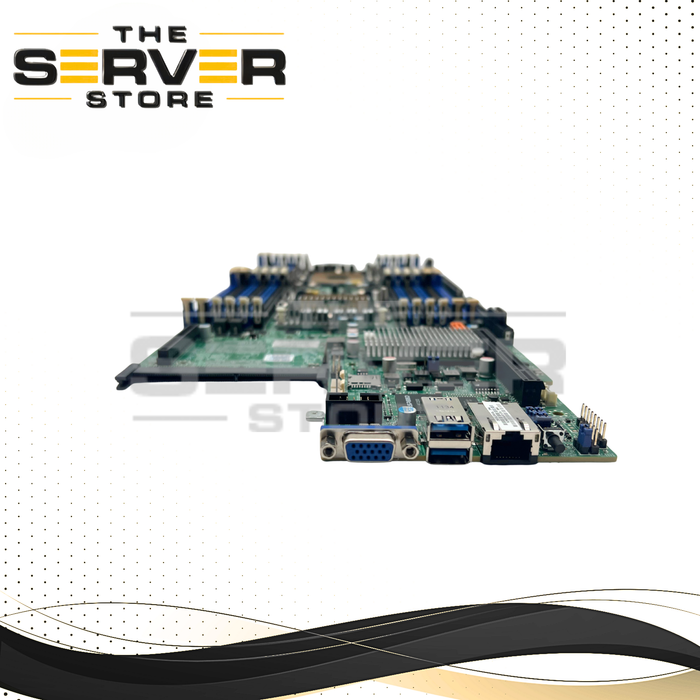

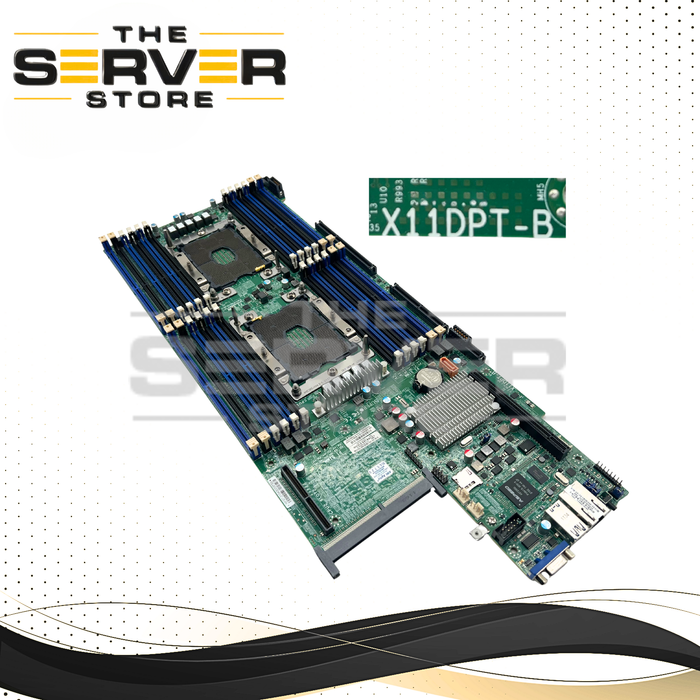

Supermicro Dual Socket P (LGA 3647) Motherboard support 2nd Gen Intel Xeon Scalable processors (X11DPT-B)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | X11DPT-B |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Server Motherboards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Supermicro Motherboard Dual Socket P LGA 3647 Rev 1.02 Key Features:
1) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s Intel® C621
2) Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
3) Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
4) 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot, 1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card), _x000D_ 1 PCIe 3.0 x16 SIOM LAN Networking Slot, _x000D_ 1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)
5) Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
6) 1 VGA port
7) Single LAN with Networking options provided via SIOM module
