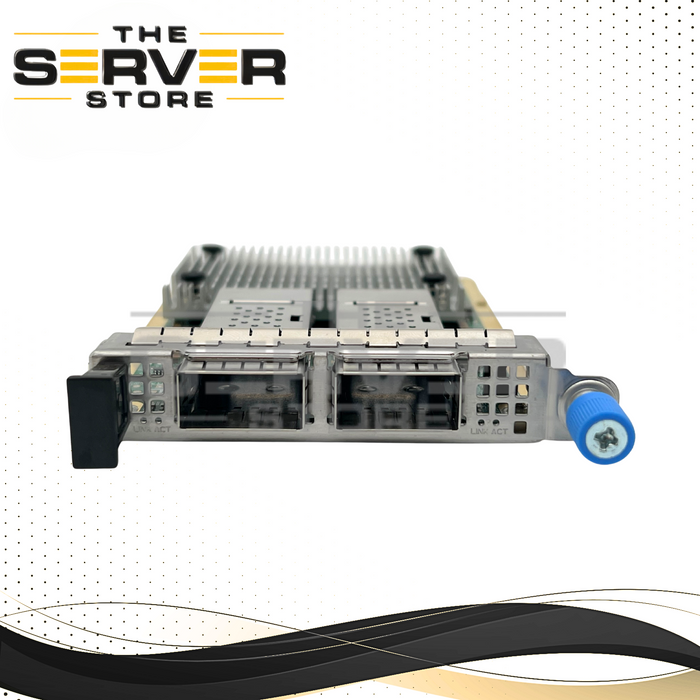

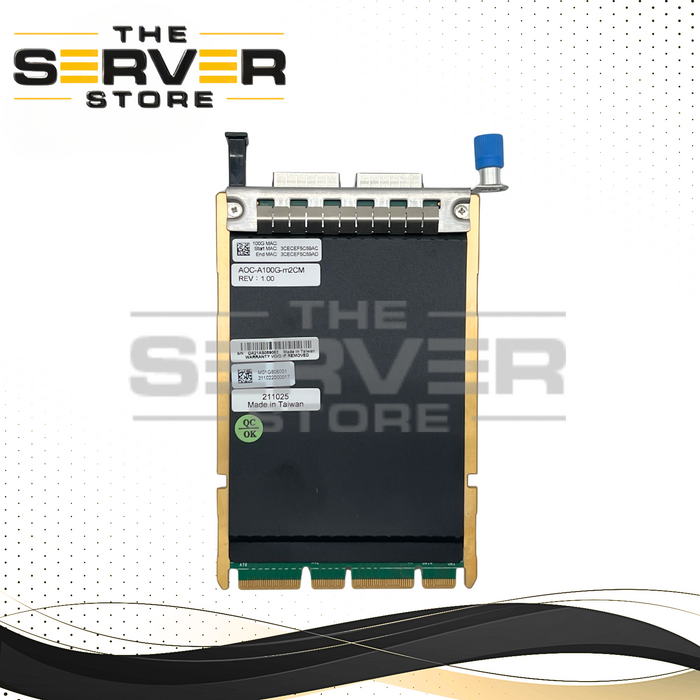

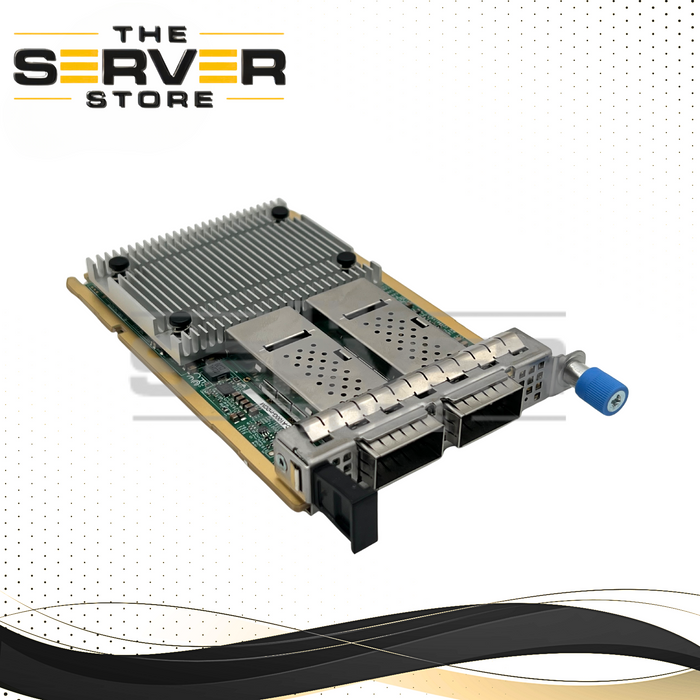

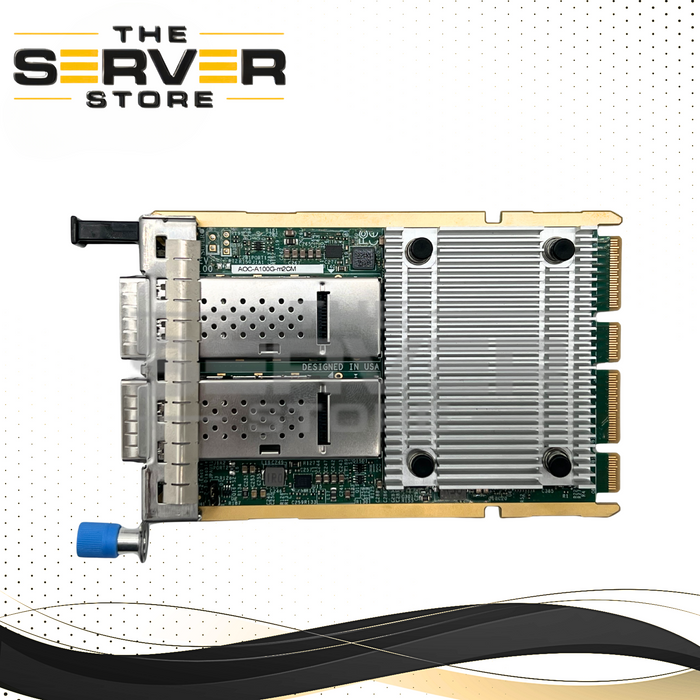

Supermicro ConnectX-6 Dx 2 Port 100GbE QSFP28 OCP 3.0 Network Card AOC-A100G-m2CM
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | AOC-A100G-m2CM |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Interface Cards (NICs) |
| Model | ConnectX-6 Dx |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
The Supermicro ConnectX-6 Dx 2-Port 100GbE QSFP28 OCP 3.0 Network Card (AOC-A100G-m2CM) is a high-performance AIOM (Advanced I/O Module) network adapter engineered for modern data centers, cloud platforms, and high-performance computing environments. Powered by the Mellanox ConnectX-6 Dx controller, this adapter delivers ultra-low latency, extreme bandwidth, and advanced offload capabilities over PCIe Gen 4.0.
Designed in an OCP 3.0, 0.5U form factor, the AOC-A100G-m2CM integrates seamlessly into compatible Supermicro server platforms, providing scalable 100Gb Ethernet connectivity for demanding workloads such as AI, storage networking, and virtualization.
Key Specifications
-
Manufacturer: Supermicro
-
Model: AOC-A100G-m2CM
-
Controller: Mellanox ConnectX-6 Dx
-
Form Factor: Advanced I/O Module (AIOM), OCP 3.0, 0.5U height
-
Host Interface: PCI Express 4.0 x16
-
Ports: 2 × QSFP28
-
Maximum Data Rate: 100 Gbps per port
-
Power Consumption: Up to 23.7 W
-
Dimensions: 76 mm × 115 mm (3.0" × 4.5")
-
Storage Temperature: -40°C to 70°C
Advanced Networking & Offload Features
-
RDMA Support: RoCE v1/v2, Zero-Touch RoCE, and RoCE over overlay networks for ultra-low latency
-
Virtualization Acceleration: VXLAN, NVGRE, Geneve offloads and SR-IOV support for up to 128 VFs
-
Storage Networking: Hardware offloads for NVMe-oF, iSER, NFS over RDMA, and SMB Direct
-
Remote Boot: Supports PXE, UEFI, iSCSI boot, and Ethernet-based remote boot
Management, Security & Compliance
-
Out-of-Band Management: NC-SI, MCTP over SMBus and PCIe, and PLDM firmware management
-
Security: Hardware root of trust with secure firmware update support (no onboard crypto)
-
Standards Compliance: IEEE 802.3 compliant for 10GbE, 40GbE, 100GbE, and 200GbE
The Supermicro AOC-A100G-m2CM ConnectX-6 Dx 100GbE OCP 3.0 Network Card is an ideal solution for organizations seeking maximum throughput, low-latency networking, and advanced offload capabilities in next-generation enterprise, AI, and cloud data-center infrastructures.
