Supermicro Backplane 12 Bay Exp. 2U NVMe SAS/SATA Nutanix BPN-SAS3-826A-N4-Ni22
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | BPN-SAS3-826A-N4-Ni22 |
| Manufacturer | Supermicro |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Backplanes |
| Model | |
| Form Factor | 2U Rackmount |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

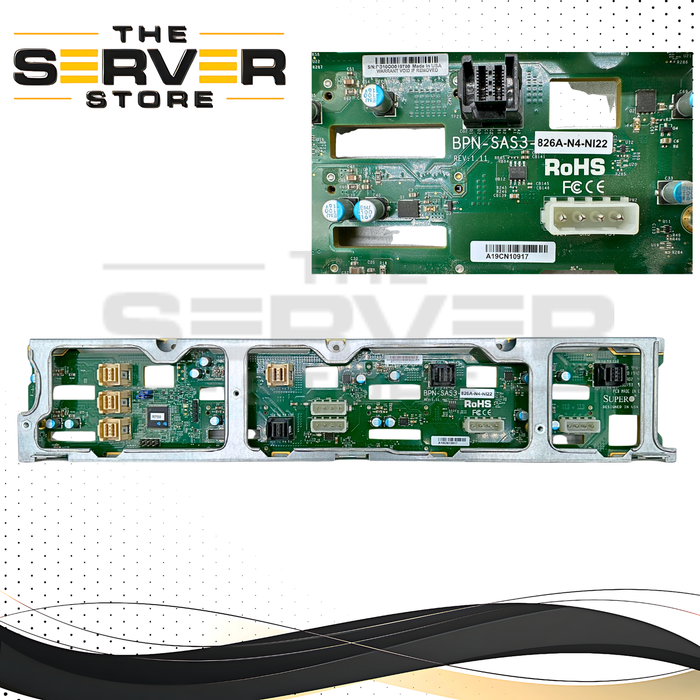

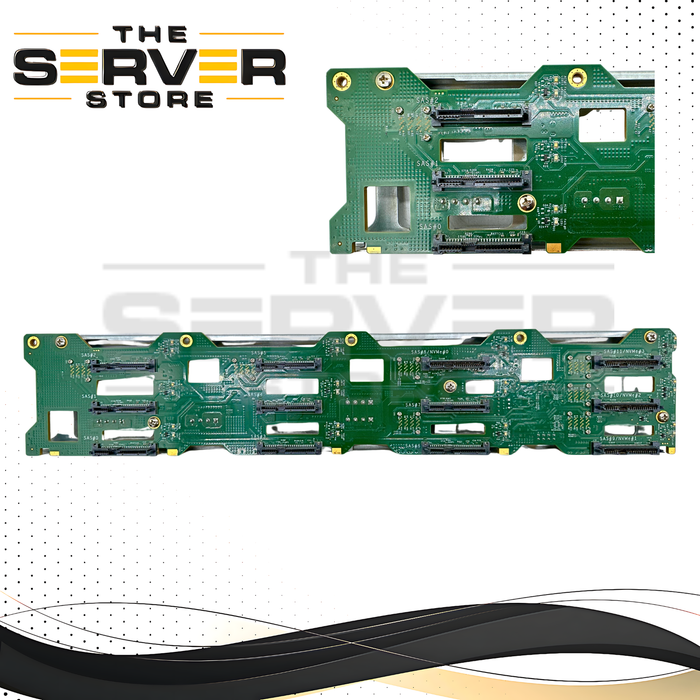

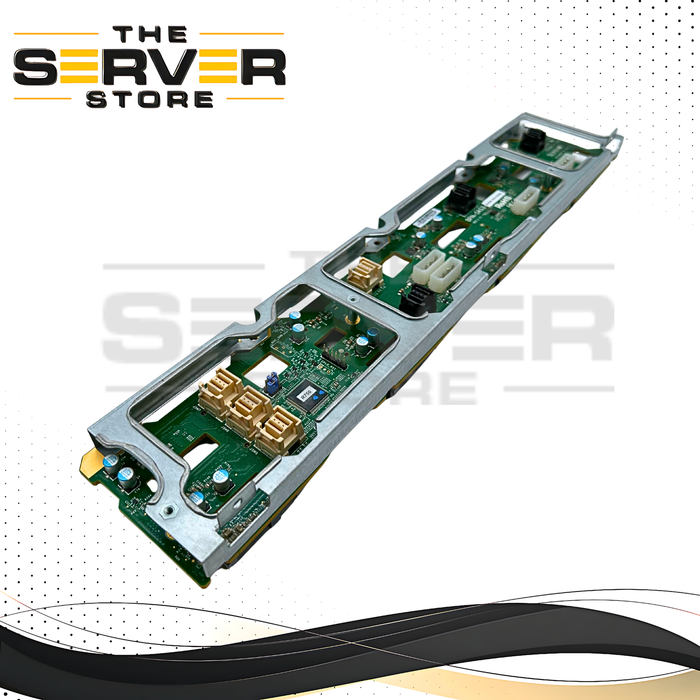

Supermicro Backplane 12 Bay Exp. 2U NVMe SAS/SATA Nutanix BPN-SAS3-826A-N4-Ni22
Upgrade your enterprise storage infrastructure with the Supermicro Backplane 12 Bay Exp. 2U NVMe SAS/SATA Nutanix BPN-SAS3-826A-N4-Ni22, a high-performance backplane engineered for demanding data center, virtualization, and hyperconverged environments. Designed for 2U rackmount chassis, this enterprise-grade backplane delivers exceptional flexibility by supporting a combination of SAS3, SATA3, and NVMe storage devices, making it an ideal solution for Nutanix and Supermicro server platforms requiring high-speed storage connectivity and scalability.
The BPN-SAS3-826A-N4-Ni22 supports up to 12 hot-swap 3.5-inch drive bays, with bays 0 through 7 supporting 12Gb/s SAS3 and 6Gb/s SATA3 drives, while bays 8 through 11 provide hybrid functionality with support for up to four direct-attached PCIe NVMe drives. This unique hybrid architecture enables organizations to balance high-capacity storage with ultra-fast NVMe performance for mission-critical workloads, virtualization clusters, software-defined storage, and enterprise databases.
Built for reliability and easy integration, the backplane features three Mini SAS HD connectors for SAS/SATA connectivity and four dedicated NVMe direct-attach connectors for low-latency PCIe storage access. Multiple onboard power inputs ensure stable operation, while integrated diagnostic LED support and management interfaces simplify system monitoring and maintenance in production environments.
Whether you're replacing a failed unit, expanding an existing server, or building a custom enterprise storage solution, the Supermicro BPN-SAS3-826A-N4-Ni22 delivers the professional-grade performance, compatibility, and flexibility required for modern data center deployments.
Key Features
- Genuine Supermicro BPN-SAS3-826A-N4-Ni22 enterprise backplane
- Designed for 2U rackmount 12-bay LFF chassis
- Supports up to 12 hot-swap 3.5" drive bays
- Bays 0-7 support 12Gb/s SAS3 and 6Gb/s SATA3 drives
- Bays 8-11 support PCIe NVMe, SAS3, or SATA3 drives
- Three Mini SAS HD connectors for SAS/SATA connectivity
- Four dedicated NVMe direct-attach connectors
- Flexible hybrid storage architecture for maximum performance
- Four onboard power connectors for stable operation
- Front-panel LED support for activity, status, rebuild, identify, and fault indication
- JTAG upgrade port for diagnostics and CPLD updates
- NVMe-to-CPU mapping jumpers for installation flexibility
- Ideal for Nutanix, Supermicro servers, virtualization platforms, and enterprise storage environments
Technical Specifications
- Manufacturer: Supermicro
- Part Number: BPN-SAS3-826A-N4-Ni22
- Form Factor: 2U Rackmount Backplane
- Drive Capacity: 12 x 3.5" LFF Bays
- Storage Interface Support: SAS3 (12Gb/s), SATA3 (6Gb/s), PCIe NVMe
- SAS/SATA Connectors: 3 x Mini SAS HD
- NVMe Connectors: 4 x Direct-Attach NVMe Ports
- Power Connectors: 4 x 4-Pin Power Inputs
- Management Features: JTAG Service Port, Activity & Status LEDs
- Application: Enterprise Servers, Storage Arrays, Nutanix Appliances, Data Centers
The Supermicro Backplane 12 Bay Exp. 2U NVMe SAS/SATA Nutanix BPN-SAS3-826A-N4-Ni22 is an excellent choice for organizations seeking enterprise-class storage expansion, high-speed NVMe integration, and dependable SAS/SATA compatibility within a single versatile backplane solution.
