Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server G8 G9 G10 (HPE LFF SCC Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

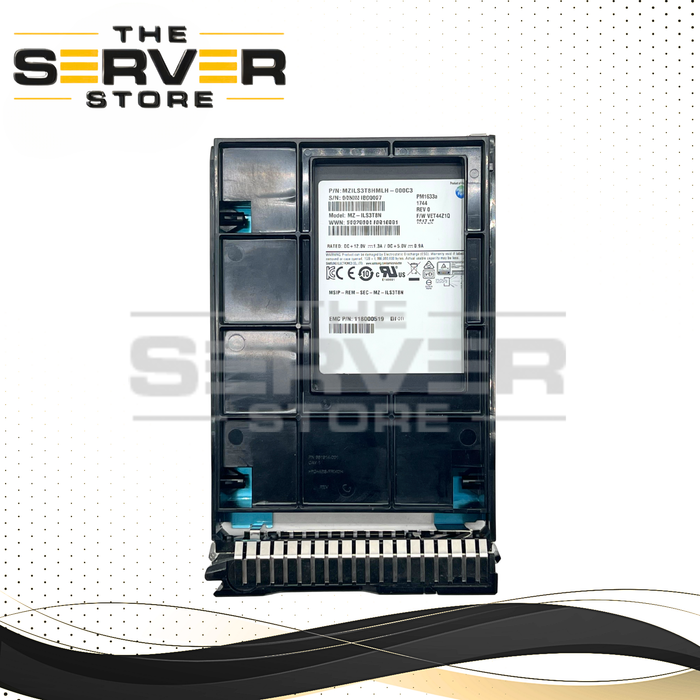

Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server Gen8 / Gen9 / Gen10 (HPE LFF SCC Tray Included)
Product Description
Upgrade your enterprise storage infrastructure with this Samsung EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, built on the reliable Samsung PM1633a Series platform. Designed for virtualization, cloud computing, enterprise databases, high-performance storage arrays, and mission-critical server environments, this SSD delivers consistent performance, exceptional reliability, and enterprise-class endurance.
Featuring 48-Layer Samsung TLC V-NAND flash technology, the PM1633a provides excellent efficiency and durability for read-intensive workloads. Its 12Gb/s Dual-Port SAS interface ensures high availability and redundant data paths, while integrated Power Loss Protection (PLP) helps safeguard critical data during unexpected power interruptions.

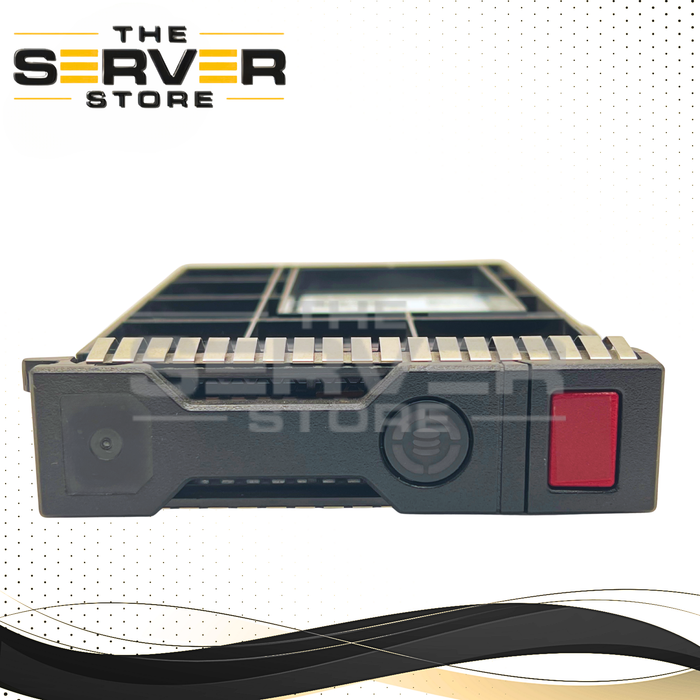

This SSD is mounted in an HPE Large Form Factor (LFF) Smart Carrier Converter (SCC) tray, allowing the 2.5-inch SSD to be installed in compatible HPE ProLiant servers with 3.5-inch LFF drive bays.
Key Features
- Capacity: 3.84TB
- Interface: 12Gb/s SAS-3 Dual Port
- Form Factor: 2.5" SFF SSD
- Drive Height: 15mm
- Carrier Type: HPE LFF SCC (Smart Carrier Converter) Tray
- Series: Samsung PM1633a
- Model: MZ-ILS3T8N
- EMC Part Number: 118000519
- Enterprise Read Intensive (RI) SSD
- 48-Layer Samsung TLC V-NAND Flash
- Enterprise-Class Reliability
- Power Loss Protection (PLP)
- Hot-Swap Compatible
- MTBF: 2 Million Hours
- Endurance Rating: 1 DWPD
- Includes HPE LFF SCC Hot-Swap Tray
Part Numbers
- EMC P/N: 118000519
- Alternate EMC P/N: 005052110
- Samsung Model: MZ-ILS3T8N
- Samsung Base Model: MZILS3T8HMLH
- Samsung P/N: MZILS3T8HMLH-000C3
- Alternate Samsung P/N: MZILS3T8HMLH-000C4
- Series: PM1633a
Performance Specifications
- Sequential Read: Up to 1,250 MB/s
- Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
- Random Read: Up to 200,000 IOPS
- Random Write: Up to 35,000 IOPS
- Interface Speed: 12Gb/s SAS
Reliability & Endurance
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 7,008 TB
- MTBF: 2,000,000 Hours
- Enterprise Error Correction
- Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
- Power Loss Protection with Onboard Capacitors
Power Consumption
- Active Read/Write: Up to 11W
- Idle Power: Approximately 4.5W
Compatible HPE ProLiant Servers
Compatible with many HPE ProLiant Gen8, Gen9, and Gen10 servers featuring LFF (3.5-inch) hot-swap drive bays, including:
HPE ProLiant Gen8
- DL360p Gen8
- DL380p Gen8
- DL385p Gen8
- DL560 Gen8
- DL580 Gen8
- ML350p Gen8
HPE ProLiant Gen9
- DL360 Gen9
- DL380 Gen9
- DL560 Gen9
- DL580 Gen9
- ML350 Gen9
HPE ProLiant Gen10
- DL360 Gen10
- DL380 Gen10
- DL560 Gen10
- DL580 Gen10
- ML350 Gen10
Enterprise Storage Compatibility
Commonly deployed in:
- Dell EMC Unity Series
- Dell EMC Unity XT Series
- Dell EMC VNX Systems
- Dell EMC PowerVault Systems
- Dell EMC VMAX Systems
- Dell EMC PowerMax Systems
- Select Isilon Platforms
- Select PowerScale Platforms
Condition
Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.
What's Included
- Samsung EMC 3.84TB SAS 12G RI 2.5" SSD
- HPE LFF SCC (Smart Carrier Converter) Hot-Swap Tray/Caddy
Important Notes
- Enterprise-grade Read Intensive (RI) SSD designed for server and storage environments.
- Non-SED (Non Self-Encrypting Drive).
- EMC firmware may be configured with 520-byte sectors. Some operating systems, RAID controllers, and server environments may require reformatting to 512-byte sectors before deployment.
- Please verify compatibility with your server, storage controller, firmware version, and operating environment before purchasing.
- Listing includes an HPE LFF SCC (Smart Carrier Converter) tray for installation in compatible 3.5-inch HPE drive bays.
- This configuration allows a 2.5-inch enterprise SSD to be used in supported HPE ProLiant LFF servers.
