Samsung 960GB SATA 6G SFF SSD PM893 Series MZ7L3960HCJR-00A07
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

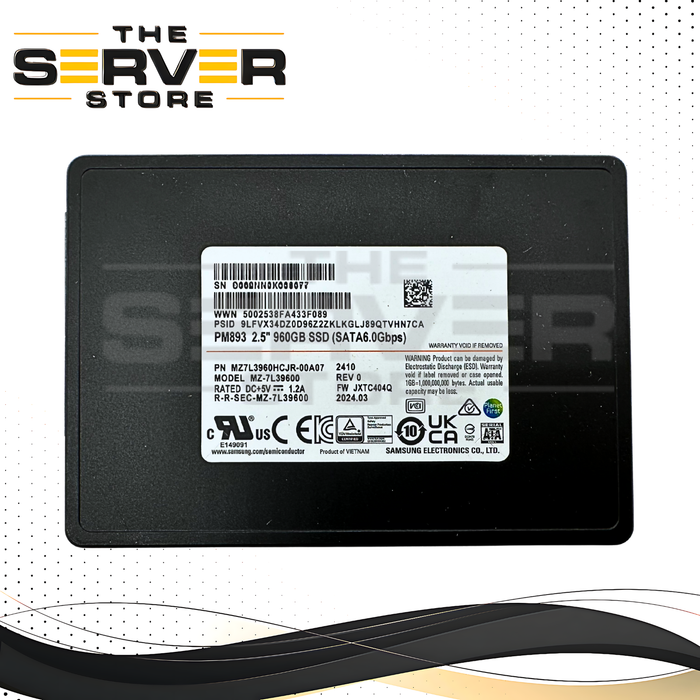

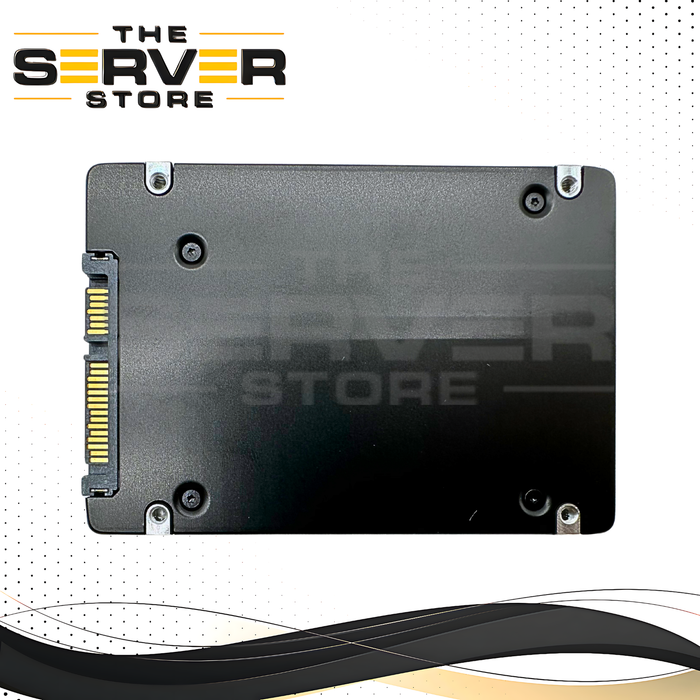

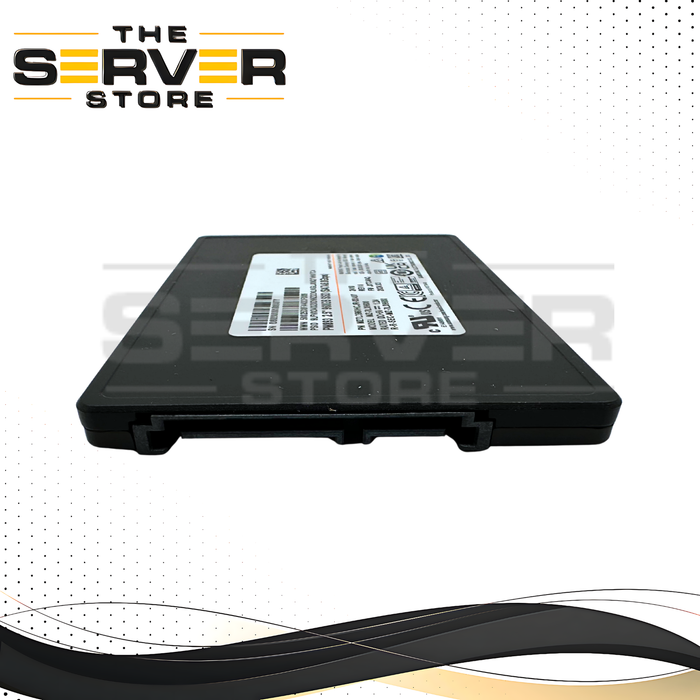

Samsung PM893 960GB SATA 6Gb/s 2.5" Enterprise SSD (MZ7L3960HCJR-00A07)
Built for modern data centers and business-critical environments, the Samsung PM893 960GB Enterprise SSD delivers exceptional reliability, security, and consistent SATA performance for read-intensive workloads. Powered by Samsung's advanced V6 V-NAND 3D TLC flash memory and the high-performance Samsung Metis (MKX) controller, this SSD is designed to support servers, virtualization platforms, cloud infrastructure, and enterprise storage arrays operating around the clock.
With a standard 2.5-inch Small Form Factor (SFF) design and SATA III 6Gb/s interface, the PM893 provides an ideal balance of capacity, endurance, and efficiency while remaining compatible with a wide range of business and data center systems.
Key Features
- 960GB Enterprise Storage Capacity
- Samsung PM893 Data Center SSD
- SATA III 6Gb/s Interface with AHCI support
- 2.5-inch Small Form Factor (SFF) with 7mm height
- Samsung V6 V-NAND 3D TLC Flash Memory
- Samsung Metis (MKX) Enterprise Controller
- Power-Loss Protection (PLP) for enhanced data integrity
- AES-XTS 256-Bit Hardware Encryption
- End-to-End Data Protection
- Optimized for enterprise and read-intensive workloads
Performance Specifications
- Sequential Read Speed: Up to 550 MB/s
- Sequential Write Speed: Up to 520 MB/s
- Random Read Performance (4KB): Up to 98,000 IOPS
- Random Write Performance (4KB): Up to 30,000 - 31,000 IOPS
- Low-latency performance for data center applications
Enterprise Reliability & Security
- Power-Loss Protection uses onboard capacitors to help protect in-flight data during unexpected power outages
- End-to-End Data Protection safeguards data throughout the transfer path
- AES-XTS 256-Bit Hardware Encryption for enterprise-grade security
- 2,000,000-Hour MTBF reliability rating
- 1,752 TBW Endurance Rating
- Up to 1.3 DWPD (Drive Writes Per Day)
- Designed for continuous 24/7 enterprise operation
Technical Specifications
- Manufacturer: Samsung
- Series: PM893
- Model: MZ7L3960HCJR-00A07
- Capacity: 960GB
- Form Factor: 2.5-inch SFF (7mm)
- Interface: SATA III 6Gb/s (AHCI)
- NAND Type: Samsung V6 V-NAND 3D TLC
- Controller: Samsung Metis (MKX)
- Drive Class: Enterprise Read-Intensive SSD
- Encryption: AES-XTS 256-Bit Hardware Encryption
- MTBF: 2,000,000 Hours
Ideal Applications
- Data Center Servers
- Virtualization Platforms
- Cloud Infrastructure
- Database Servers
- Enterprise Storage Systems
- Boot and Application Drives
- Business-Critical Computing Environments
- 24/7 Read-Intensive Workloads
Power Efficiency & Environmental Specifications
- Active Read Power: Approximately 2.1W - 2.2W
- Active Write Power: Approximately 3.2W
- Idle Power Consumption: Approximately 1.3W - 1.5W
- Operating Temperature Range: 0°C to 70°C
Why Choose the Samsung PM893?
The Samsung PM893 Series combines proven SATA reliability with enterprise-class security, impressive endurance, and consistent performance. Whether deployed as a server boot drive, virtualization storage solution, or business application SSD, the MZ7L3960HCJR-00A07 delivers the stability and efficiency organizations require to keep critical systems running smoothly.
