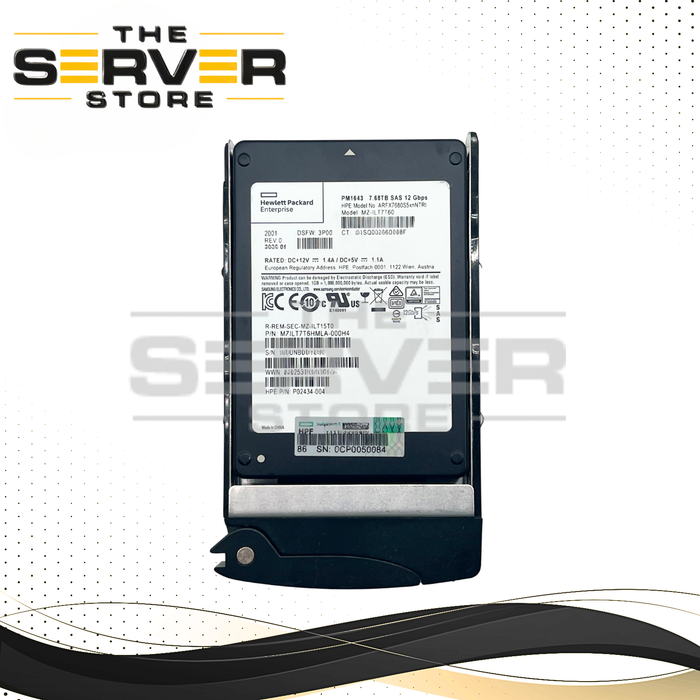

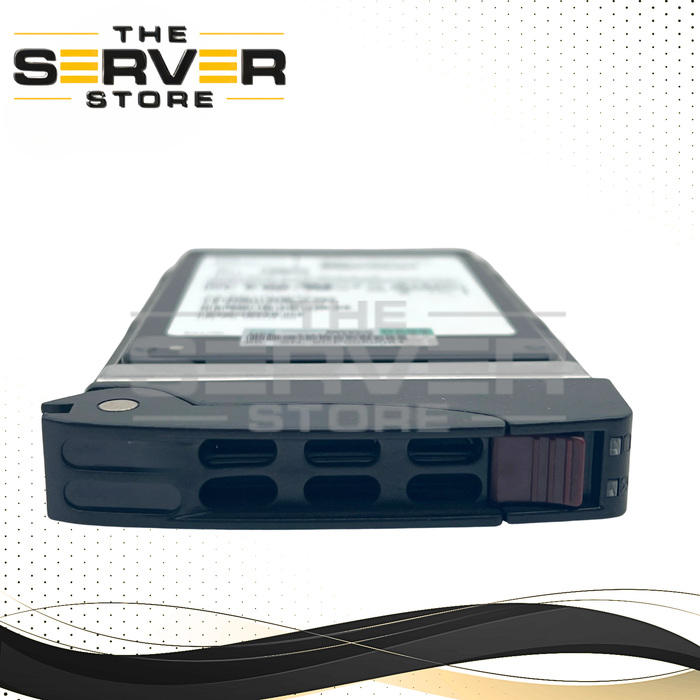

Samsung 7.68TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-IL7T60 for Supermicro server (Supermicro Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZ-IL7T60 |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Samsung PM1643 Series |
| Form Factor | SFF 2.5" SSD (Supermicro Tray Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 7.68TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-IL7T60 for Supermicro Server (Supermicro Tray Included)
Product Description
Upgrade your server storage with this Samsung 7.68TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, powered by the enterprise-proven Samsung PM1643 Series architecture. Designed for demanding workloads including virtualization, cloud computing, databases, software-defined storage, and data center applications, this SSD delivers exceptional performance, reliability, and endurance.
Featuring a 12Gb/s Dual-Port SAS interface, 7.68TB capacity, and a compact 2.5-inch Small Form Factor (SFF) 15mm design, this enterprise SSD provides high-speed storage performance for compatible Supermicro servers and storage platforms. The drive supports Self-Encrypting Drive (SED) functionality with AES 256-bit hardware encryption, helping secure critical business data.
Built for 24/7 enterprise environments, this SSD includes Power Loss Protection (PLP), hot-swap capability, and enterprise-grade durability. A Supermicro 2.5" drive tray is included for easy installation in supported systems.
Key Features
- Enterprise SSD Powered by Samsung PM1643 Series
- 7.68TB Storage Capacity
- SAS 12Gb/s Dual-Port Interface
- 2.5" Small Form Factor (SFF)
- 15mm Drive Height
- Self-Encrypting Drive (SED)
- AES 256-Bit Hardware Encryption
- Read Intensive (RI) Workload Optimized
- Hot-Plug / Hot-Swap Compatible
- Power Loss Protection (PLP)
- Enterprise-Class Reliability
- Enterprise 3D TLC V-NAND Technology
- Supermicro Tray Included
Technical Specifications
- OEM Manufacturer: Samsung
- Series: PM1643
- Model: MZ-IL7T60
- Capacity: 7.68TB
- Form Factor: 2.5" SFF
- Height: 15mm
- Interface: SAS 12Gb/s
- Port Configuration: Dual-Port SAS
- NAND Type: Enterprise 3D TLC V-NAND
- Sector Format: 512 Native
- Workload Type: Read Intensive (RI)
- Encryption: AES 256-Bit SED
- Power Loss Protection: Yes
- Hot-Swap Support: Yes
- Endurance: 1 DWPD
- MTBF: 2,000,000 Hours
Performance Specifications
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 2,000 MB/s
- Random Read Performance: Up to 400,000 IOPS
- Random Write Performance: Up to 70,000 IOPS
Compatible Part Numbers
- MZ-IL7T60
- MZILT7T6HMLA
- MZILT7T6HMLA-000H4
- ARFX7680S5xnNTRI
Compatible Supermicro Platforms
- Supermicro SuperServer Systems
- Supermicro BigTwin Systems
- Supermicro TwinPro Systems
- Supermicro Ultra Servers
- Supermicro Storage Servers
- Supermicro Hyper Platforms
- Supermicro CloudDC Systems
- Any Supermicro server supporting 2.5" 12Gb/s SAS drives
Package Includes
- 7.68TB SAS 12G RI SED SSD
- Supermicro 2.5" Drive Tray/Caddy
Note: Please verify compatibility with your Supermicro server before purchasing. Server, controller, cables, and additional accessories are not included unless otherwise stated. This listing includes the SSD and Supermicro tray only.
