Samsung 480GB NVMe 22110 M.2 PCIe Gen 3.0 x4 SSD PM953 Series MZ1LV480HCHP
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

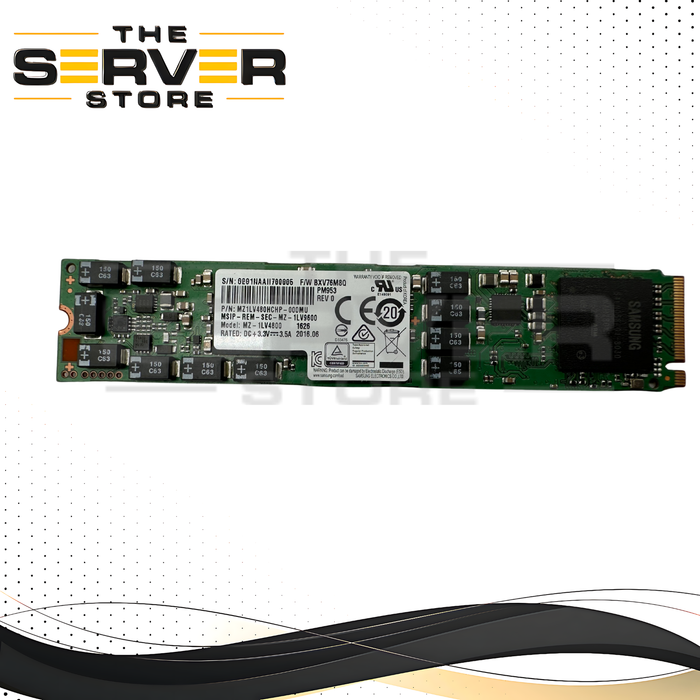

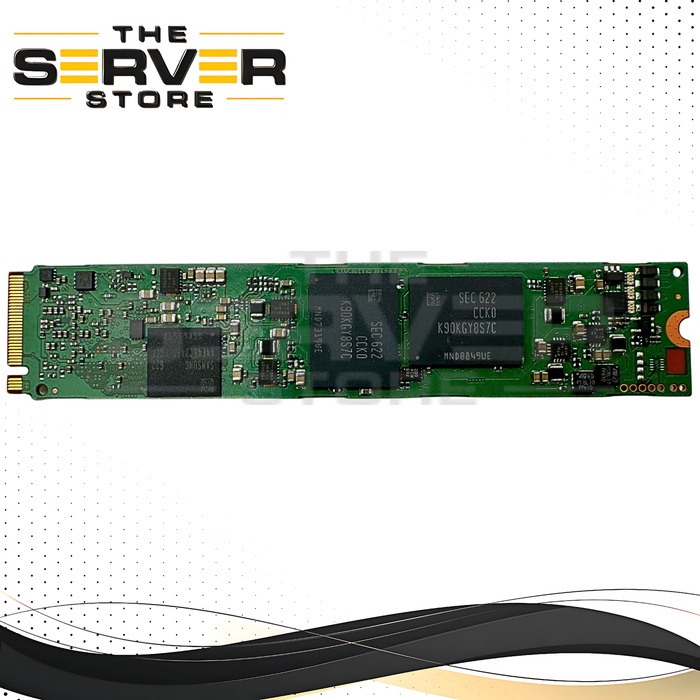

Samsung PM953 480GB NVMe M.2 22110 Enterprise SSD (MZ1LV480HCHP)
Upgrade your server or workstation with the Samsung PM953 480GB NVMe SSD, an enterprise-grade solid-state drive engineered for reliability, efficiency, and consistent performance. Featuring a high-speed PCIe Gen3 x4 NVMe interface and Samsung's advanced 48-Layer TLC V-NAND technology, the PM953 is designed for read-intensive workloads, virtualization environments, cloud infrastructure, and data center applications.
The MZ1LV480HCHP utilizes the extended M.2 22110 form factor, allowing space for enterprise features such as integrated power-loss protection capacitors that help safeguard critical data during unexpected power interruptions.
Key Features
- 480GB Enterprise Storage Capacity
- PCIe Gen3 x4 NVMe 1.1 Interface for low-latency data access
- M.2 22110 Form Factor (22mm x 110mm)
- Samsung 48-Layer TLC V-NAND Flash
- Power-Loss Protection (PLP) for enhanced data integrity
- Read-Intensive Enterprise Design
- 2 Million Hour MTBF reliability rating
- Ideal for servers, storage arrays, virtualization, and cloud applications
Performance
- Sequential Read Speed: Up to 1,000 MB/s
- Sequential Write Speed: Up to 870 MB/s
- Random Read Performance: Up to 240,000 IOPS
- Random Write Performance: Up to 19,000 IOPS
- Endurance Rating: Up to 300 TBW
Technical Specifications
- Manufacturer: Samsung
- Series: PM953
- Model: MZ1LV480HCHP
- Capacity: 480GB
- Interface: PCI Express 3.0 x4 NVMe
- Form Factor: M.2 22110 (M-Key)
- NAND Type: 48-Layer TLC V-NAND
- Drive Type: Enterprise Read-Intensive SSD
- MTBF: 2,000,000 Hours
Compatibility Notice
Important: This drive uses the longer M.2 22110 (110mm) form factor. Please verify that your server, workstation, motherboard, or storage platform supports 22110-length M.2 SSDs prior to purchase, as many consumer systems only support M.2 2280 drives.
Built for enterprise environments where reliability matters most, the Samsung PM953 delivers dependable NVMe performance, advanced data protection features, and the proven quality of Samsung storage technology.
