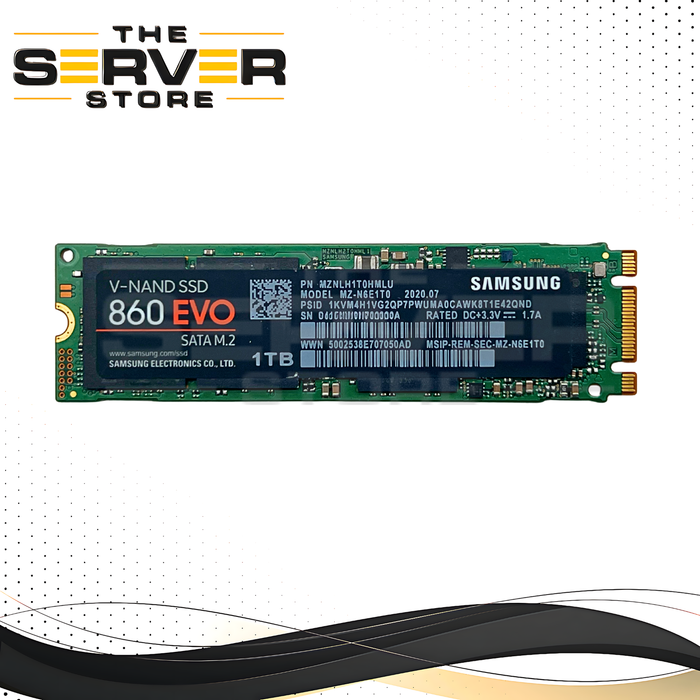

Samsung 1TB SATA 6G 2280 M.2 SSD 860 EVO Series MZ-N6E1T0
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell 1TB SATA III M.2 2280 SSD Samsung 860 EVO Series (MZ-N6E1T0)
Experience trusted Samsung storage technology with the Dell 1TB M.2 SATA SSD based on the renowned Samsung 860 EVO Series. Designed for systems that support SATA-based M.2 storage, this SSD delivers reliable performance, exceptional endurance, and advanced security features for business users, professionals, and everyday computing environments.
Built with Samsung V-NAND technology and the advanced Samsung MJX controller, the 860 EVO combines fast transfer speeds, intelligent caching, and low power consumption in a compact M.2 2280 form factor. Whether you're upgrading a laptop, workstation, or desktop PC, this SSD offers a substantial improvement in responsiveness, boot times, and data access speeds.
Key Features
- 1TB Storage Capacity
- Samsung 860 EVO Series SSD
- M.2 2280 SATA Form Factor
- SATA III 6Gb/s Interface
- Samsung V-NAND 3D TLC Flash
- Up to 550 MB/s Read Performance
- Up to 520 MB/s Write Performance
- 1GB LPDDR4 DRAM Cache
- TurboWrite Dynamic Cache Technology
- AES 256-Bit Hardware Encryption
Drive Specifications
- Brand: Dell OEM
- Drive Series: Samsung 860 EVO
- Model Number: MZ-N6E1T0
- Capacity: 1TB (1,000GB)
- Controller: Samsung MJX Controller
- NAND Type: Samsung V-NAND 3D TLC
- Interface: SATA III 6.0Gb/s
- Protocol: AHCI / SATA
- Form Factor: M.2 2280 (NGFF)
- Connector: B+M Key
Performance Specifications
- Sequential Read Speed: Up to 550 MB/s
- Sequential Write Speed: Up to 520 MB/s
- Random Read Performance: Up to 98,000 IOPS
- Random Write Performance: Up to 90,000 IOPS
- Optimized for fast boot times and rapid application loading
- Consistent performance across everyday and professional workloads
Intelligent Cache Technology
- 1GB LPDDR4 Dedicated DRAM Cache
- Samsung Intelligent TurboWrite Technology
- 42GB Dynamic Pseudo-SLC Cache
- Accelerates burst write operations and large file transfers
- Maintains smooth performance during intensive workloads
Security & Data Protection
- AES 256-Bit Hardware Encryption
- TCG Opal 2.0 Compliant
- Microsoft eDrive (IEEE1667) Support
- S.M.A.R.T. Monitoring Support
- TRIM Command Optimization
- Advanced ECC Error Correction
- Automatic Garbage Collection
Reliability & Endurance
- Endurance Rating: 600 TBW
- MTBF: 1,500,000 Hours
- Built for long-term reliability and stability
- Ideal for productivity, business, and content storage workloads
- Solid-state architecture with no moving parts
Power Efficiency
- Operating Voltage: 3.3V (±5%)
- Average Active Power: Approximately 2.2W to 3.0W
- Peak Write Power: Up to 4.0W
- DevSleep Support: Standby power as low as 2.6mW
- Optimized for battery-powered systems and mobile workstations
Physical Specifications
- Form Factor: M.2 2280
- Connector Type: B+M Key
- Dimensions: 22mm x 80mm x 2.38mm
- Weight: Up to 8g
- Single-Sided Design
- Ideal for ultrabooks, laptops, and compact desktop systems
Compatibility Notice
Important: This is a SATA-based M.2 SSD and not an NVMe PCIe SSD. It requires a system with support for M.2 SATA (AHCI) storage. It may not function in systems that exclusively support NVMe/PCIe M.2 drives.
Ideal Applications
- Laptop Storage Upgrades
- Business Workstations
- Desktop PCs
- Operating System Drives
- Professional Productivity Applications
- Media & Content Storage
- Home Office Systems
- Everyday High-Speed Computing
Why Choose the Samsung 860 EVO MZ-N6E1T0?
The Dell Samsung 860 EVO 1TB SSD delivers the perfect blend of performance, endurance, and security. Featuring Samsung's proven V-NAND technology, intelligent TurboWrite caching, AES hardware encryption, and an impressive 600TBW endurance rating, this SSD is an excellent choice for users seeking dependable SATA-based M.2 storage with long-term reliability and fast everyday performance.
