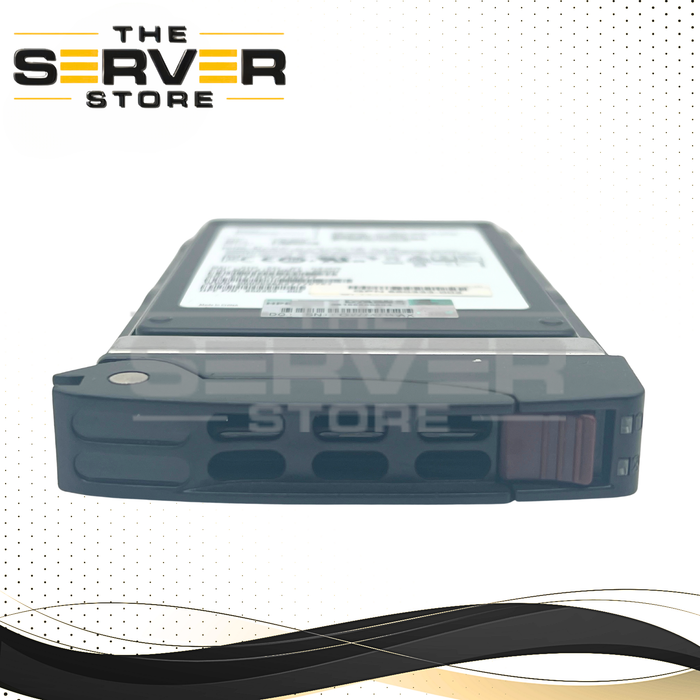

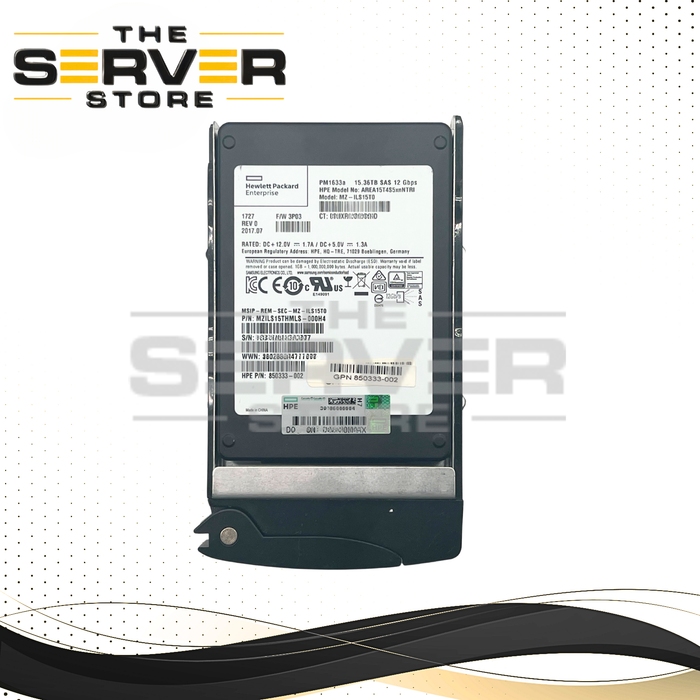

Samsung 15.36TB SAS 12Gbps RI SFF 2.5" 15mm SSD MZ-ILS15T0 PM1633a Series for Supermicro Server
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$1,424.99
$1,424.99
-
$1,424.99
Current price
$1,424.99
SKU 15.36TB-SAS-GENERIC-SUPER-KIT
Availability:
Only 23 left!
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12Gbps RI 2.5" 15mm SSD PM1633a Series MZ-ILS15T0 for Supermicro Server
Part Numbers: MZILS15THMLS-000H4, MZ-ILS15T0,
The Samsung PM1633a 15.36TB Enterprise SSD is a high-capacity, 12Gb/s SAS (SAS-3) solid-state drive designed for read-intensive workloads, enterprise servers, cloud infrastructure, and big data environments.
Key Specifications
- Capacity: 15.36TB
- Interface: SAS-3 Dual-Port (12Gbps, backward compatible)
- Form Factor: 2.5" SFF (15mm height)
- NAND Type: Samsung 3D V-NAND TLC
- Sequential Read/Write: Up to 1,250 MB/s
- Random Read/Write (4KB): Up to 200K / 35K IOPS
Reliability & Endurance
- Endurance: 1.0 DWPD (5 years)
- MTBF: 2,000,000 hours
- UBER: 1 per 10^17 bits read
- Power-Loss Protection (PLP): Yes
- Encryption: TCG Enterprise
Power
- Active: ~11W
- Idle: ~4.5W
Server & Storage Compatibility (One-Line Format)
Supermicro Server:
- X10 Generation: 1028U-TNR4T+, 1028U-TN10RT+, 2028U-TNR4T+, 2028U-E1CNR4T+
- X11 Generation: 1029U-TN10RT, 1029U-E1CR4T, 2029U-E1CR4T, 2029U-E1CR2T
- X12 Generation: 120U-TNR, 220U-MTNR
- X13 Generation: 121U-TN10R, 221U-TN24R
- other Supermicro Compatibility: BigTwin (2029BT-HNR, 2129BT-HNR, 220BT-HNTR, 221BT-HNTR); TwinPro (2028TP-HC0FR, 2028TP-HC1R, 2029TP-HC0R, 2029TP-HC1R); SSG Series (SSG-1029P-NES24R, SSG-2029P-E1CR24H, SSG-2029P-E1CR24L, SSG-220P-E1CR24H, SSG-221P-E1CR24H, SSG-6029P-E1CR12H); Mainstream/CloudDC (5019C-WR, 1029P-WTR, 2029P-WTR, 120P-WTR, 220P-WTR, 110P-MTR, 210P-MTR, 111P-WR, 211P-WR); SuperBlade (SBI-4129P-C2N, SBI-6119P-C2N, SBI-7428R-C3/C3N)**
Important Notes
- Requires SAS (not SATA) backplane
- 15mm height (check server bay compatibility)
- For Dell/Lenovo systems, proper caddy/tray may be required
