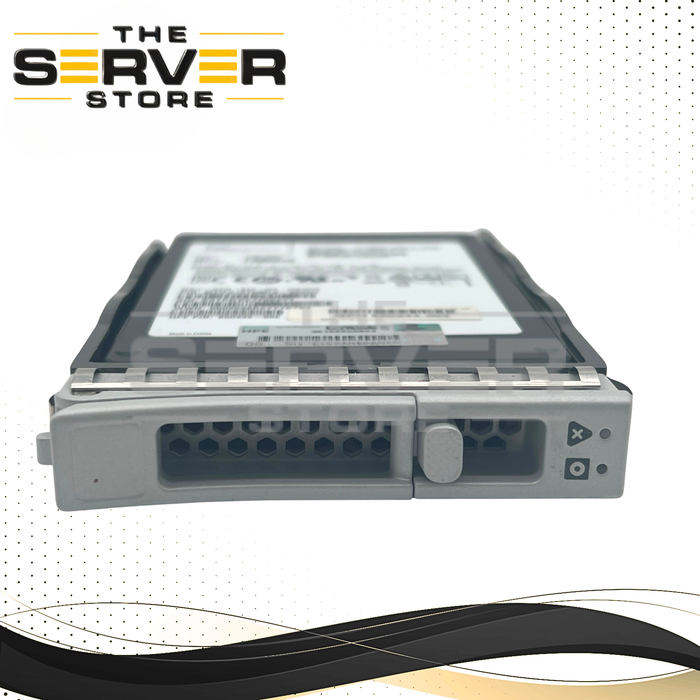

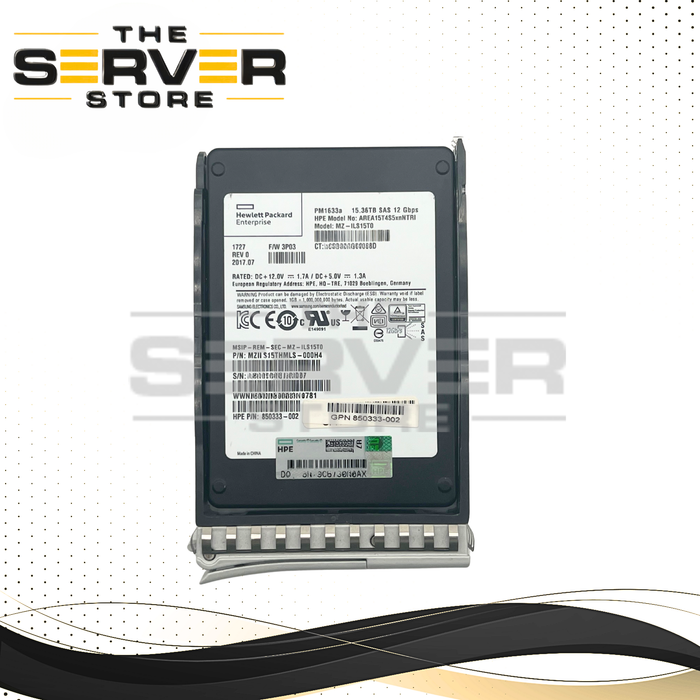

Samsung 15.36TB SAS 12Gbps RI SFF 2.5" 15mm SSD MZ-ILS15T0 PM1633a Series for Cisco UCS C-Series Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12Gbps RI 2.5" 15mm SSD PM1633a Series MZ-ILS15T0 for Cisco UCS Server
Part Numbers: MZILS15THMLS-000H4, MZ-ILS15T0,
The Samsung PM1633a 15.36TB Enterprise SSD is a high-capacity, 12Gb/s SAS (SAS-3) solid-state drive designed for read-intensive workloads, enterprise servers, cloud infrastructure, and big data environments.
Key Specifications
- Capacity: 15.36TB
- Interface: SAS-3 Dual-Port (12Gbps, backward compatible)
- Form Factor: 2.5" SFF (15mm height)
- NAND Type: Samsung 3D V-NAND TLC
- Sequential Read/Write: Up to 1,250 MB/s
- Random Read/Write (4KB): Up to 200K / 35K IOPS
Reliability & Endurance
- Endurance: 1.0 DWPD (5 years)
- MTBF: 2,000,000 hours
- UBER: 1 per 10^17 bits read
- Power-Loss Protection (PLP): Yes
- Encryption: TCG Enterprise
Power
- Active: ~11W
- Idle: ~4.5W
Server & Storage Compatibility (One-Line Format)
Cisco Server:
-
220 M3 SFF (UCSC-C220-M3S), C240 M3 SFF (UCSC-C240-M3S), C220 M4 SFF (UCSC-C220-M4S), C240 M4 SFF (UCSC-C240-M4S), C220 M5SX (10x SFF front bays), C240 M5SX (24x SFF front bays), C480 M5 SFF (Up to 32 front bays), C220 M6 SFF (10x SFF front bays), C240 M6SX (24x SFF front bays), C225 M6 SFF (AMD-based 10x SFF), C245 M6 SFF (AMD-based 24x SFF), C220 M7 SFF (Intel Gen 4/5 Scalable), C240 M7 SFF (Intel Gen 4/5 2U), C220 M8 SFF (Universal front 2.5" bays)
Important Notes
- Requires SAS (not SATA) backplane
- 15mm height (check server bay compatibility)
- For Dell/Lenovo systems, proper caddy/tray may be required
