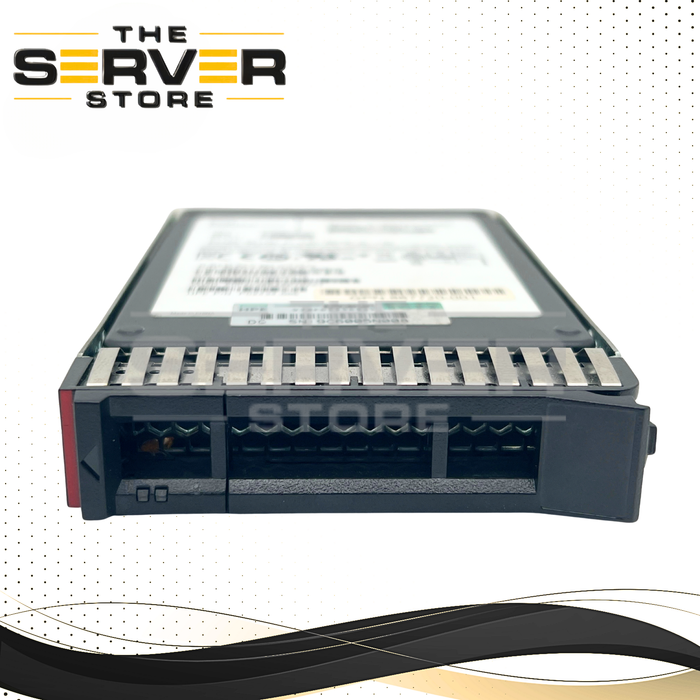

Samsung 15.36TB SAS 12G RI SFF 2.5" SED (512e) SSD PM1643 Series MZILT15THMLA MZ-ILT15T0 for Lenovo ThinkSystem Server (Lenovo Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZ-ILT15T0 |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drive (SSD) |
| Model | Samsung PM1643 Series |
| Form Factor | SFF 2.5" SSD (Format 512e). (Lenovo Tray Included). |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12G RI SFF 2.5" SED (512e) SSD PM1643 Series MZILT15THMLA MZ-ILT15T0 for Lenovo ThinkSystem Server (Lenovo Tray Included)
Product Overview
Upgrade your Lenovo ThinkSystem infrastructure with this enterprise-class Samsung PM1643 Series 15.36TB SAS SSD, engineered for demanding data center applications, virtualization, cloud computing, database workloads, and business-critical storage environments. Featuring a Dual-Port SAS 12Gb/s interface, 512e sector format, and Self-Encrypting Drive (SED) technology, this SSD delivers outstanding performance, security, and reliability.
The drive includes a Lenovo ThinkSystem 2.5" SFF Tray for installation in supported Lenovo server and storage platforms.
Key Features
- Capacity: 15.36TB
- Manufacturer: Samsung
- Series: PM1643
- Model: MZILT15THMLA / MZ-ILT15T0
- Form Factor: 2.5" Small Form Factor (SFF)
- Drive Height: 15mm
- Interface: Dual-Port SAS 12Gb/s
- Sector Format: 512e (512-Byte Emulation)
- Workload Type: Read Intensive (RI)
- Security: Self-Encrypting Drive (SED)
- Flash Technology: Samsung 3D V-NAND TLC
- Enterprise Power Loss Protection (PLP)
- Lenovo ThinkSystem Tray Included
Performance Specifications
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 1,800 MB/s
- Random Read (4KB): Up to 400,000 IOPS
- Random Write (4KB): Up to 60,000 IOPS
Endurance & Reliability
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 15,360 TB
- MTBF: 2 Million Hours
- Enterprise-Class Reliability
- UBER: 1 Error per 10¹⁷ Bits Read
Advanced Security Features
- AES 256-Bit Hardware Encryption
- Self-Encrypting Drive (SED)
- TCG Enterprise Security Support
- Instant Secure Erase
- Enterprise Data-at-Rest Protection
Compatible Lenovo ThinkSystem Servers
Lenovo ThinkSystem SR Series
- ThinkSystem SR250
- ThinkSystem SR530
- ThinkSystem SR550
- ThinkSystem SR570
- ThinkSystem SR590
- ThinkSystem SR630
- ThinkSystem SR635
- ThinkSystem SR650
- ThinkSystem SR655
- ThinkSystem SR665
- ThinkSystem SR670
- ThinkSystem SR850
- ThinkSystem SR860
- ThinkSystem SR950
Lenovo ThinkSystem ST Series
- ThinkSystem ST250
- ThinkSystem ST550
Lenovo ThinkSystem SD Series
- ThinkSystem SD530
- ThinkSystem SD650
- ThinkSystem SD650-N
Lenovo ThinkAgile Solutions
- ThinkAgile HX Series
- ThinkAgile MX Series
- ThinkAgile VX Series
Lenovo Storage Systems
- ThinkSystem DE Series
- ThinkSystem DM Series
- ThinkSystem Storage Arrays with SAS 12G Support
Note: Compatibility may vary depending on the server backplane, RAID controller, firmware level, drive cage configuration, and storage subsystem. Please verify compatibility before purchasing.
Operating System Compatibility
- Microsoft Windows Server
- VMware ESXi
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Ubuntu Server
- Proxmox VE
- Citrix Hypervisor
- Other SAS-Compatible Enterprise Operating Systems
Related Part Numbers
- MZILT15THMLA
- MZILT15THMLA-000H4
- MZ-ILT15T0
- ARFX15T4SxnNTRI
Package Includes
- 1x Samsung PM1643 15.36TB SAS 12G RI SSD
- 1x Lenovo ThinkSystem 2.5" SFF Tray
Condition
- Tested and Fully Functional
- Enterprise Data Center Grade Hardware
- Professionally Packaged
- Ready for Production Deployment
Compatible with Lenovo ThinkSystem servers and other major OEM platforms using the same SAS 12G 512e specifications, including HPE, Dell, Cisco, Supermicro, and Lenovo enterprise storage environments.
