Samsung 15.36TB SAS 12G RI SFF 2.5" SED (512e) SSD PM1643 Series MZILT15THMLA MZ-ILT15T0 for Cisco UCS Server (Cisco UCS Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZ-ILT15T0 |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drive (SSD) |
| Model | Samsung PM1643 Series |
| Form Factor | SFF 2.5" SSD (Format 512e). (Cisco UCS Server Tray Included). |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12G RI SFF 2.5" SED (512e) SSD PM1643 Series MZILT15THMLA MZ-ILT15T0 for Cisco UCS Server (Cisco UCS Tray Included)
Product Overview
Enhance your Cisco UCS infrastructure with this enterprise-grade Samsung PM1643 Series 15.36TB SAS SSD, designed for high-capacity storage, virtualization, database applications, cloud environments, and mission-critical workloads. Featuring a Dual-Port SAS 12Gb/s interface, 512e sector format, and advanced Self-Encrypting Drive (SED) technology, this SSD delivers exceptional reliability, security, and performance for modern data centers.

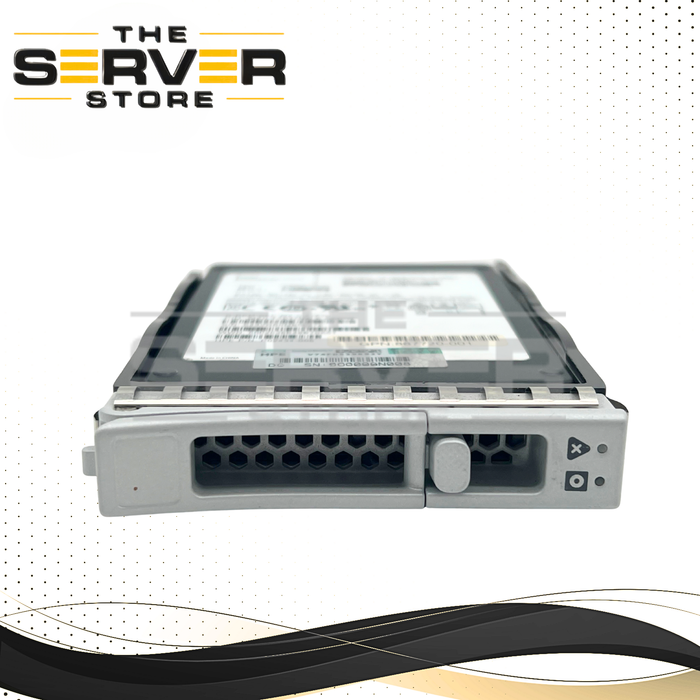

This drive includes a Cisco UCS 2.5" SFF Drive Tray for easy installation in supported Cisco UCS servers and storage platforms.
Key Features
- Capacity: 15.36TB
- Manufacturer: Samsung
- Series: PM1643
- Model: MZILT15THMLA / MZ-ILT15T0
- Form Factor: 2.5" Small Form Factor (SFF)
- Drive Height: 15mm
- Interface: Dual-Port SAS 12Gb/s
- Sector Format: 512e (512-Byte Emulation)
- Workload Type: Read Intensive (RI)
- Security: Self-Encrypting Drive (SED)
- Flash Technology: Samsung 3D V-NAND TLC
- Enterprise Power Loss Protection (PLP)
- Cisco UCS Tray Included
Performance Specifications
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 1,800 MB/s
- Random Read (4KB): Up to 400,000 IOPS
- Random Write (4KB): Up to 60,000 IOPS
Endurance & Reliability
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 15,360 TB
- MTBF: 2 Million Hours
- Enterprise-Class Reliability
- UBER: 1 Error per 10¹⁷ Bits Read
Advanced Security Features
- AES 256-Bit Hardware Encryption
- Self-Encrypting Drive (SED)
- TCG Enterprise Security Support
- Instant Secure Erase
- Enterprise Data-at-Rest Protection
Compatible Cisco UCS Servers
Cisco UCS C-Series Rack Servers
- UCS C220 M4
- UCS C220 M5
- UCS C220 M6
- UCS C240 M4
- UCS C240 M5
- UCS C240 M6
- UCS C245 M6
- UCS C4200 Series
- UCS C480 M5
Cisco UCS B-Series Blade Servers
- UCS B200 M4
- UCS B200 M5
- UCS B200 M6
- UCS B480 M5
Cisco UCS X-Series Modular Systems
- UCS X210c M6 Compute Node
- UCS X210c M7 Compute Node
- UCS X440p PCIe Node
Cisco HyperFlex Systems
- HyperFlex HX220 Series
- HyperFlex HX240 Series
- HyperFlex HXAF Series
- HyperFlex Edge Clusters
Cisco UCS S-Series Storage Servers
- UCS S3260 Storage Server
Note: Compatibility depends on drive bay configuration, RAID controller, firmware level, SAS backplane support, and storage subsystem. Please verify compatibility with your Cisco UCS platform before purchasing.
Operating System Compatibility
- Microsoft Windows Server
- VMware ESXi
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Ubuntu Server
- Citrix Hypervisor
- Nutanix AHV
- Other SAS-Compatible Enterprise Operating Systems
Related Part Numbers
- MZILT15THMLA
- MZILT15THMLA-000H4
- MZ-ILT15T0
- ARFX15T4SxnNTRI
Package Includes
- 1x Samsung PM1643 15.36TB SAS 12G RI SSD
- 1x Cisco UCS 2.5" SFF Drive Tray
Condition
- Tested and Fully Functional
- Enterprise Data Center Grade Hardware
- Professionally Packaged
- Ready for Deployment
Compatible with Cisco UCS servers and other major OEM platforms using the same specifications, including Cisco, HPE, Dell, Lenovo, and Supermicro enterprise storage environments.
