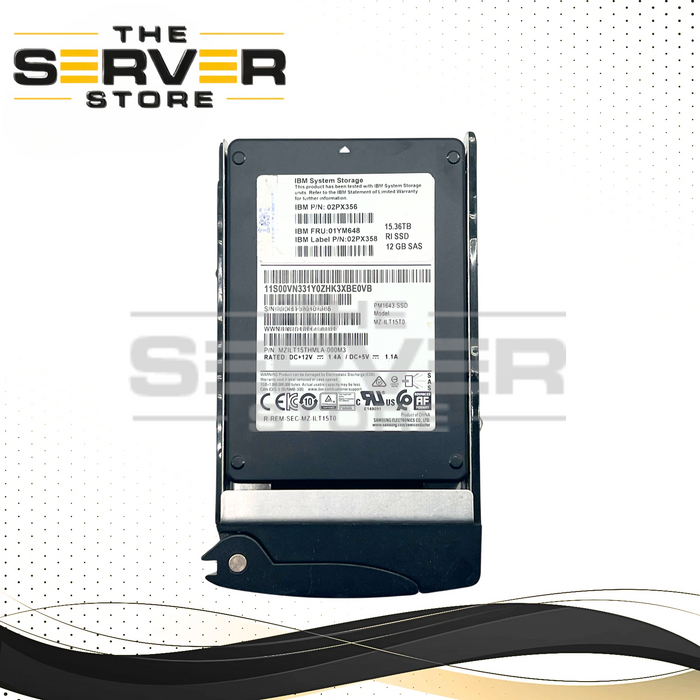

Samsung 15.36TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-ILT15T0 MZILT15THMLA-000M3 for Supermicro Server (Supermicro Tray Included)
Product Description
Upgrade your Supermicro server with the Samsung PM1643 Series 15.36TB Enterprise SAS SSD, a high-capacity, enterprise-class solid-state drive engineered for demanding data center environments. Designed to deliver exceptional reliability, performance, and security, this SSD is ideal for virtualization, cloud computing, storage arrays, database servers, software-defined storage, and other mission-critical enterprise workloads.
Built with Samsung's advanced V-NAND TLC technology and a high-speed 12Gb/s SAS interface, the PM1643 provides outstanding throughput, low latency, and consistent performance. This drive features Self-Encrypting Drive (SED) functionality with AES 256-bit hardware encryption and integrated Power Loss Protection, helping safeguard sensitive data while ensuring uninterrupted operation.
As a Read Intensive (RI) SSD, the PM1643 is optimized for environments requiring fast read performance, high-capacity storage, and enterprise-grade endurance for continuous 24/7 operation.

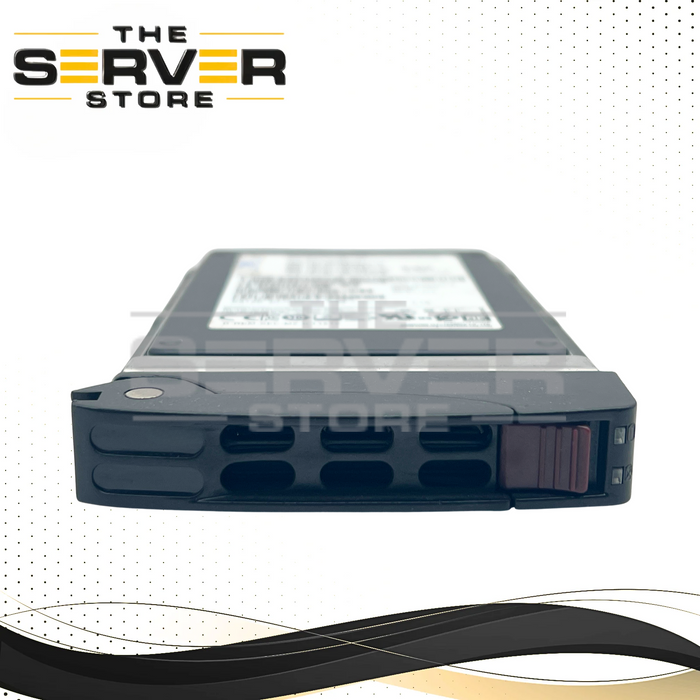

Includes Supermicro 2.5" Drive Tray/Caddy.
Key Features
- 15.36TB Enterprise SSD Capacity
- Samsung PM1643 Series
- Supermicro Tray Included
- SAS 3.0 12Gb/s Interface
- 2.5" Small Form Factor (SFF)
- 15mm Drive Height
- Self-Encrypting Drive (SED)
- AES 256-Bit Hardware Encryption
- Read Intensive (RI) Endurance Profile
- Dual-Port SAS Connectivity
- Enterprise Power Loss Protection
- Samsung V-NAND TLC Flash Technology
- Hot-Swap Compatible
- Designed for Enterprise and Data Center Applications
Technical Specifications
- Manufacturer: Samsung
- Series: PM1643
- Model: MZ-ILT15T0
- Manufacturer Part Number: MZILT15THMLA-000M3
- Capacity: 15.36TB
- Interface: SAS 12Gb/s
- Form Factor: 2.5" SFF
- Height: 15mm
- NAND Flash Type: Samsung V-NAND TLC
- Encryption: AES 256-Bit Hardware Encryption
- Self-Encrypting Drive (SED): Yes
- Endurance Rating: 1 DWPD
- MTBF: 2 Million Hours
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 2,000 MB/s
- Random Read Performance: Up to 400,000 IOPS
- Random Write Performance: Up to 70,000 IOPS
- Dual-Port SAS: Yes
- Power Loss Protection: Yes
- Enterprise Read Intensive (RI): Yes
Alternate Part Numbers
- MZ-ILT15T0
- MZILT15THMLA
- MZILT15THMLA-000M3
Compatible Supermicro Server Families
- SuperServer SYS-1018 Series
- SuperServer SYS-1028 Series
- SuperServer SYS-1029 Series
- SuperServer SYS-1118 Series
- SuperServer SYS-5018 Series
- SuperServer SYS-5028 Series
- SuperServer SYS-6018 Series
- SuperServer SYS-6028 Series
- SuperServer SYS-6029 Series
- SuperServer SYS-2028 Series
- SuperServer SYS-2029 Series
- SuperServer SYS-5039 Series
- SuperStorage 6048 Series
- SuperStorage 6049 Series
- SuperStorage 2028 Series
- SuperBlade Systems with SAS Storage Modules
- MicroBlade Systems with 12Gb/s SAS Storage Support
- Most Supermicro servers featuring 2.5" SAS/SATA hot-swap drive bays and SAS3 (12Gb/s) controllers
Package Contents
- 1x Samsung PM1643 15.36TB SAS SSD
- 1x Supermicro 2.5" Drive Tray/Caddy
Ideal Applications
- Enterprise Data Centers
- Virtualization Platforms
- Cloud Computing Infrastructure
- Database Servers
- Software-Defined Storage
- High-Capacity Storage Arrays
- Backup and Archiving Solutions
- Data Analytics Platforms
- Business-Critical Applications
- Read-Intensive Workloads
- Hyper-Converged Infrastructure (HCI)
Compatibility Note
Compatible with Supermicro servers and storage systems that support 2.5-inch 12Gb/s SAS SSDs. The included Supermicro tray allows for installation in supported Supermicro hot-swap drive bays and storage platforms. Performance and full functionality may depend on system firmware, RAID controller, and backplane configuration.
