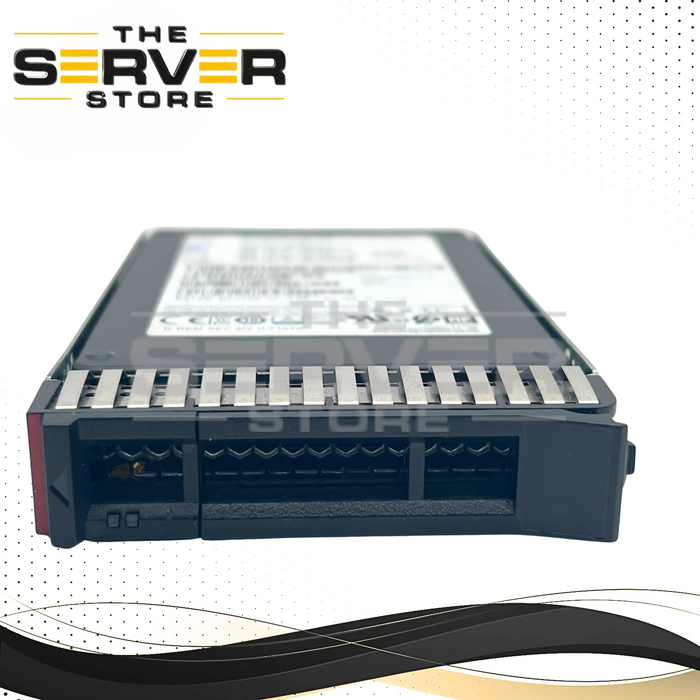

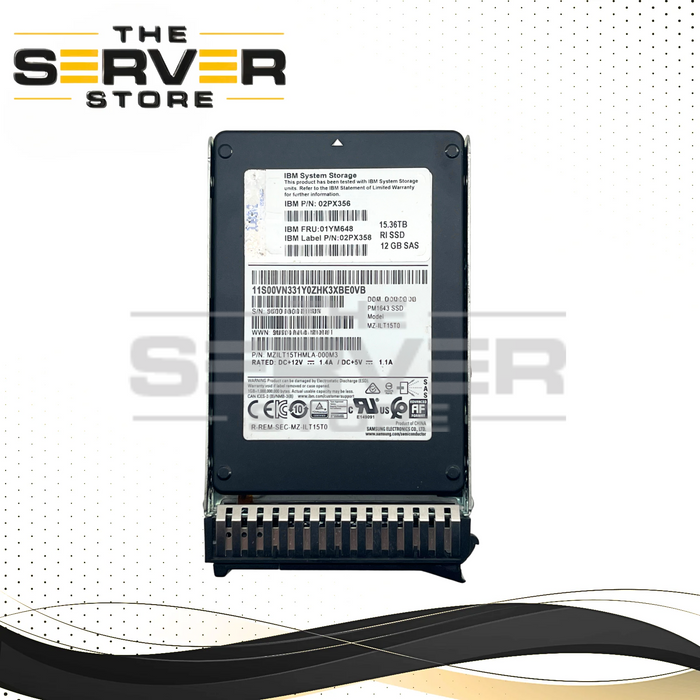

Samsung 15.36TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-ILT15T0 MZILT15THMLA-000M3 for Lenovo ThinkSystem Server (Lenovo ThinkSystem Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-ILT15T0 MZILT15THMLA-000M3 for Lenovo ThinkSystem Server (Lenovo ThinkSystem Tray Included)
Product Description
Boost your Lenovo ThinkSystem server storage performance with the Samsung PM1643 Series 15.36TB Enterprise SAS SSD. Designed for mission-critical enterprise environments, this high-capacity solid-state drive delivers exceptional reliability, security, and performance for virtualization, cloud computing, database applications, software-defined storage, and data analytics workloads.
Built on Samsung's advanced V-NAND technology and featuring a 12Gb/s SAS interface, the PM1643 provides low latency, high throughput, and enterprise-grade endurance. This drive supports Self-Encrypting Drive (SED) functionality with AES 256-bit hardware encryption and integrated Power Loss Protection, ensuring data security and integrity in demanding data center environments.
Optimized as a Read Intensive (RI) SSD, the PM1643 is ideal for applications that require fast read access, large storage capacity, and dependable 24/7 operation.
Lenovo ThinkSystem Tray Included.
Key Features
- 15.36TB Enterprise SSD
- Samsung PM1643 Series
- Lenovo ThinkSystem Tray Included
- SAS 3.0 12Gb/s Interface
- 2.5" Small Form Factor (SFF)
- 15mm Height
- Self-Encrypting Drive (SED)
- AES 256-Bit Hardware Encryption
- Read Intensive (RI) Endurance Profile
- Dual-Port SAS Connectivity
- Enterprise Power Loss Protection
- Samsung V-NAND TLC Flash Technology
- Hot-Swap Compatible in Supported Systems
- Optimized for Enterprise Server and Storage Applications
Technical Specifications
- Manufacturer: Samsung
- Series: PM1643
- Model: MZ-ILT15T0
- Manufacturer Part Number: MZILT15THMLA-000M3
- Capacity: 15.36TB
- Interface: SAS 12Gb/s
- Form Factor: 2.5" SFF
- Drive Height: 15mm
- NAND Flash Type: Samsung V-NAND TLC
- Encryption: AES 256-Bit Hardware Encryption
- Self-Encrypting Drive (SED): Yes
- Endurance Rating: 1 DWPD
- MTBF: 2 Million Hours
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 2,000 MB/s
- Random Read Performance: Up to 400,000 IOPS
- Random Write Performance: Up to 70,000 IOPS
- Dual-Port SAS: Yes
- Power Loss Protection: Yes
- Enterprise Read Intensive (RI): Yes
Alternate Part Numbers
- MZ-ILT15T0
- MZILT15THMLA
- MZILT15THMLA-000M3
Compatible Lenovo ThinkSystem Servers
- ThinkSystem SR530
- ThinkSystem SR550
- ThinkSystem SR570
- ThinkSystem SR590
- ThinkSystem SR630
- ThinkSystem SR635
- ThinkSystem SR650
- ThinkSystem SR655
- ThinkSystem SR670
- ThinkSystem SR850
- ThinkSystem SR860
- ThinkSystem SR950
- ThinkSystem ST550
- ThinkSystem ST650
- ThinkAgile HX Series
- ThinkAgile MX Series
- Lenovo Storage Systems Supporting 2.5" 12Gb/s SAS SSDs
Package Contents
- 1x Samsung PM1643 15.36TB SAS SSD
- 1x Lenovo ThinkSystem 2.5" Tray/Caddy
Ideal Applications
- Enterprise Data Centers
- Virtualization Platforms
- Cloud Infrastructure
- Database Servers
- Software-Defined Storage
- High-Capacity Storage Arrays
- Backup and Archive Solutions
- Data Analytics
- Business-Critical Applications
- Read-Intensive Enterprise Workloads
- Lenovo ThinkSystem Server Deployments
Compatibility Note
Compatible with Lenovo ThinkSystem servers and storage systems that support 2.5-inch 12Gb/s SAS drives. The included Lenovo ThinkSystem tray allows for direct installation into supported Lenovo server platforms.
