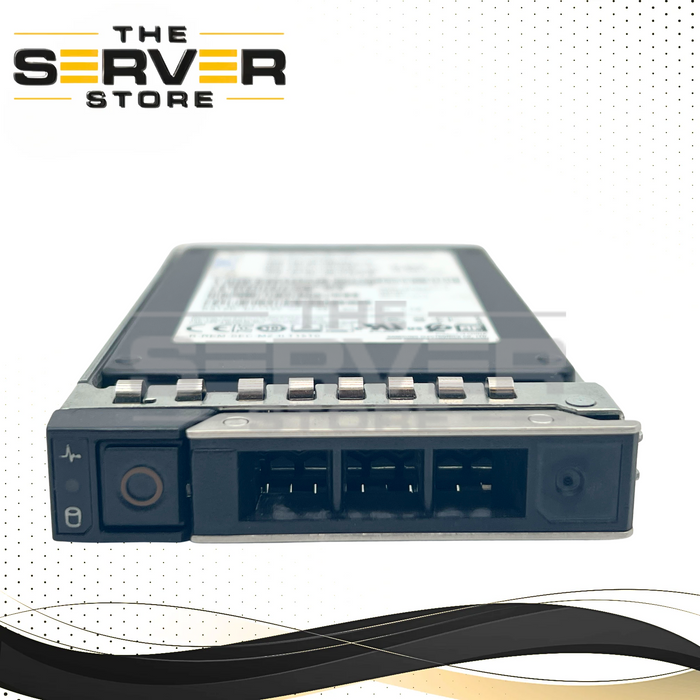

Samsung 15.36TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-ILT15T0 MZILT15THMLA-000M3 for Dell PowerEdge G15th Server (Dell PowerEdge G15th Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Samsung 15.36TB SAS 12G RI SFF 2.5" 15mm SED SSD PM1643 Series MZ-ILT15T0 MZILT15THMLA-000M3 for Dell PowerEdge G15th Server (Dell PowerEdge G15th Tray Included)
Product Description
Enhance your Dell PowerEdge 15th Generation server with the Samsung PM1643 Series 15.36TB Enterprise SAS SSD, a high-performance storage solution designed for demanding enterprise and data center environments. Engineered for reliability, security, and consistent performance, this SSD is ideal for virtualization, cloud infrastructure, database servers, software-defined storage, analytics platforms, and mission-critical business applications.
Built with Samsung V-NAND TLC technology and a high-speed 12Gb/s SAS interface, the PM1643 delivers exceptional throughput and low latency while maintaining the endurance required for 24/7 enterprise workloads. The drive features Self-Encrypting Drive (SED) technology with AES 256-bit hardware encryption and enterprise-grade Power Loss Protection to help safeguard sensitive data.
As a Read Intensive (RI) SSD, the PM1643 is optimized for applications where read performance, storage capacity, and reliability are critical.
Includes Dell PowerEdge 15th Generation (G15) 2.5" Drive Tray/Caddy.
Key Features
- 15.36TB Enterprise SSD Capacity
- Samsung PM1643 Series
- Dell PowerEdge G15 Tray Included
- SAS 3.0 12Gb/s Interface
- 2.5" Small Form Factor (SFF)
- 15mm Drive Height
- Self-Encrypting Drive (SED)
- AES 256-Bit Hardware Encryption
- Read Intensive (RI) Endurance Profile
- Dual-Port SAS Connectivity
- Enterprise Power Loss Protection
- Samsung V-NAND TLC Technology
- Hot-Swap Compatible
- Optimized for Enterprise Server Applications
- Designed for 24/7 Data Center Operation
Technical Specifications
- Manufacturer: Samsung
- Series: PM1643
- Model: MZ-ILT15T0
- Manufacturer Part Number: MZILT15THMLA-000M3
- Capacity: 15.36TB
- Interface: SAS 12Gb/s
- Form Factor: 2.5" SFF
- Height: 15mm
- NAND Type: Samsung V-NAND TLC
- Encryption: AES 256-Bit Hardware Encryption
- Self-Encrypting Drive (SED): Yes
- Endurance Rating: 1 DWPD
- MTBF: 2 Million Hours
- Sequential Read Speed: Up to 2,100 MB/s
- Sequential Write Speed: Up to 2,000 MB/s
- Random Read Performance: Up to 400,000 IOPS
- Random Write Performance: Up to 70,000 IOPS
- Dual-Port SAS: Yes
- Power Loss Protection: Yes
- Enterprise Read Intensive (RI): Yes
Alternate Part Numbers
- MZ-ILT15T0
- MZILT15THMLA
- MZILT15THMLA-000M3
Compatible Dell PowerEdge 15th Generation Servers
- Dell PowerEdge R250
- Dell PowerEdge R350
- Dell PowerEdge R450
- Dell PowerEdge R550
- Dell PowerEdge R650
- Dell PowerEdge R650XS
- Dell PowerEdge R750
- Dell PowerEdge R750XS
- Dell PowerEdge R750XA
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XS
- Dell PowerEdge R760XA
- Dell PowerEdge R6615
- Dell PowerEdge R6625
- Dell PowerEdge R7615
- Dell PowerEdge R7625
- Dell PowerEdge T350
- Dell PowerEdge T550
- Dell PowerEdge XE8545
- Dell PowerEdge XE9640
- Dell PowerEdge MX750C
- Dell PowerEdge MX760C
Package Contents
- 1x Samsung PM1643 15.36TB SAS SSD
- 1x Dell PowerEdge G15 2.5" Drive Tray/Caddy
Ideal Applications
- Enterprise Data Centers
- Virtualization Environments
- Cloud Infrastructure
- Database Servers
- Data Analytics Platforms
- Software-Defined Storage
- Backup and Archiving
- Storage Arrays
- Hyper-Converged Infrastructure (HCI)
- Business-Critical Applications
- Read-Intensive Workloads
Compatibility Note
Compatible with Dell PowerEdge 15th Generation servers and other systems supporting 2.5-inch 12Gb/s SAS SSDs. The included Dell PowerEdge G15 tray allows for direct installation into supported Dell PowerEdge hot-swap drive bays. Performance and compatibility may vary depending on RAID controller, backplane configuration, and system firmware.
