(NEW OPEN BOX) Server Technology PRO2 Switched 0U Vertical 3-Phase Wye PDU with PIPS, 240V/415V 24A Continuous (32A Max) Input, IEC 60309 3P+N+PE Red Plug, 48x IEC C13 High-Retention Outlets STV-4523G-SB-revD
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | STV-4523G-SB-revD |
| Manufacturer | Server Technology |
| Condition | New Open Box |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Power Distribution Units |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

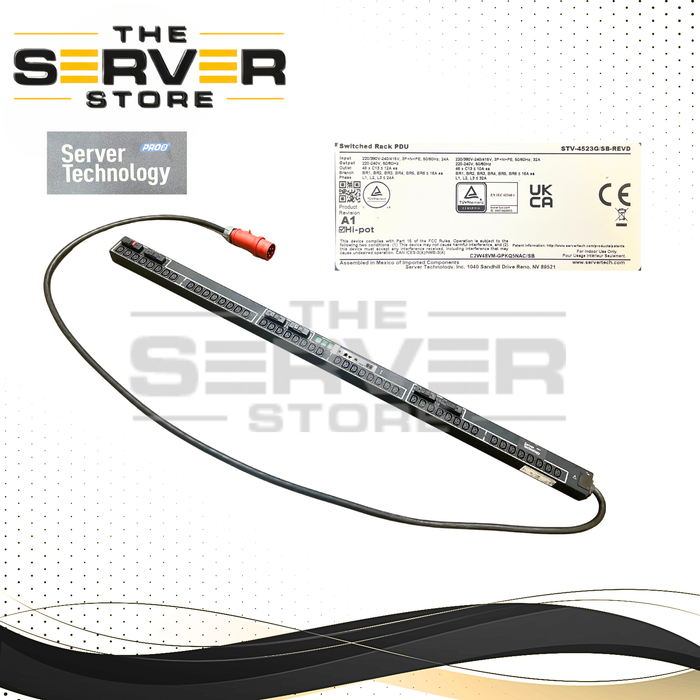

Server Technology PRO2 Switched STV-4523G-SB-revD Intelligent Rack PDU
Optimize power distribution and infrastructure management with the Server Technology PRO2 Switched STV-4523G-SB-revD, a high-density intelligent rack power distribution unit engineered for enterprise data centers, cloud environments, colocation facilities, and mission-critical IT deployments. Combining advanced power monitoring, individual outlet control, environmental monitoring support, and enterprise-grade security, this switched PDU delivers the visibility and reliability required for modern high-performance infrastructure.
Designed in a space-saving 0U vertical form factor, the STV-4523G-SB-revD mounts alongside the rack without consuming valuable rack units, making it ideal for high-density server and networking environments. Its robust 3-phase Wye power architecture provides efficient power distribution while supporting demanding server, storage, and network equipment installations.
Intelligent Power Distribution
This PRO2 Switched PDU features 48 high-retention IEC C13 outlets designed to securely hold compatible locking power cords and reduce the risk of accidental disconnects. Each outlet can be individually controlled, allowing administrators to remotely power cycle equipment, reboot unresponsive devices, schedule power operations, and manage outlet groups from virtually anywhere.
Advanced PIPS® Power Monitoring
Server Technology's integrated Per Inlet Power Sensing (PIPS®) technology provides highly accurate, billing-grade measurement and reporting of critical electrical data, enabling improved capacity planning and power utilization.
Monitored metrics include:
- Current
- Voltage
- Active Power
- Apparent Power
- Power Factor
- Crest Factor
- Energy Consumption

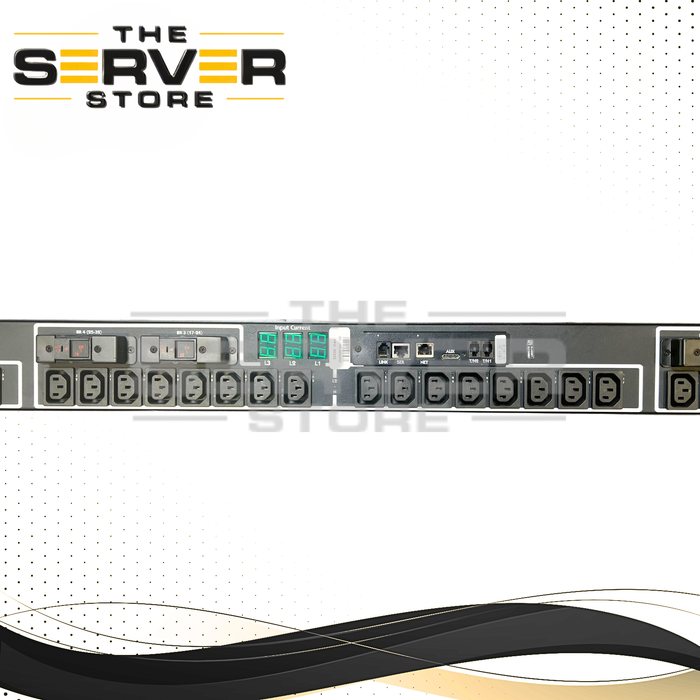

Three integrated auto-flip LED current meters automatically adjust display orientation based on mounting position and provide real-time current monitoring for each phase, simplifying load balancing and helping prevent overload conditions.
Enterprise Network Management
The STV-4523G-SB-revD includes a hot-swappable network management card that enables secure remote access and comprehensive power management.
Supported management protocols include:
- HTTP
- HTTPS
- Command Line Interface (CLI)
- SSH
- Telnet
- SNMP v1
- SNMP v2c
- SNMP v3
- FTP
- SFTP
- SMTP Email Notifications
- Syslog
For enterprise security environments, authentication support includes:
- LDAP
- LDAPS
- RADIUS
- TACACS+
Expansion and Environmental Monitoring
Star Multi-Linking technology allows a primary PDU to manage multiple linked units through a single IP address, simplifying large-scale rack deployments and reducing network complexity.
Built-in environmental monitoring ports support the connection of temperature and humidity sensors, allowing administrators to monitor rack conditions and improve environmental management within the data center.
Electrical Specifications
- Input Voltage: 240V / 415V AC Nominal
- Power Configuration: 3-Phase Wye
- Maximum Current Capacity: 32A per phase
- Continuous Current Rating: 24A
- Input Frequency: 50/60 Hz
- Total Power Capacity: Up to 22 kW

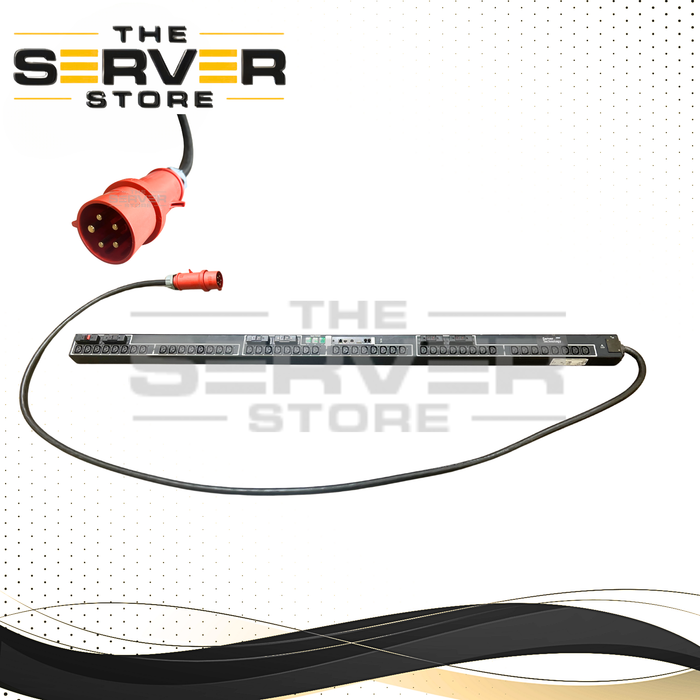

- Input Connector: IEC 60309 3P+N+PE Red Plug
- Power Cord Length: 10 ft
Outlet Specifications
- Total Outlets: 48
- Outlet Type: IEC C13
- Outlet Retention: High-Retention Locking Design
- Outlet Control: Individually Switched
- Remote Reboot and Power Cycling Support
Safety and Protection
To enhance operational reliability and equipment protection, the unit incorporates branch circuit protection with high-interrupting circuit breakers designed to help mitigate overcurrent conditions in critical environments.
Physical Specifications
- Form Factor: 0U Vertical Rack Mount
- Height: 69 in.
- Width: 3.25 in.
- Depth: 2.25 in.
- Mounting: Toolless Button Mounts and Bracket Mounting Options
- Maximum Operating Temperature: 60°C (140°F)
Ideal Applications
- Enterprise Data Centers
- Colocation Facilities
- Cloud Computing Infrastructure
- Telecommunications Environments
- Edge Computing Deployments
- High-Density Server Racks
- Storage Platforms
- Network Equipment Installations
The Server Technology PRO2 Switched STV-4523G-SB-revD combines intelligent outlet-level control, advanced power monitoring, environmental visibility, and secure enterprise management capabilities in a high-density vertical design, making it an ideal solution for organizations that demand maximum uptime, operational efficiency, and complete control over rack-level power distribution.
