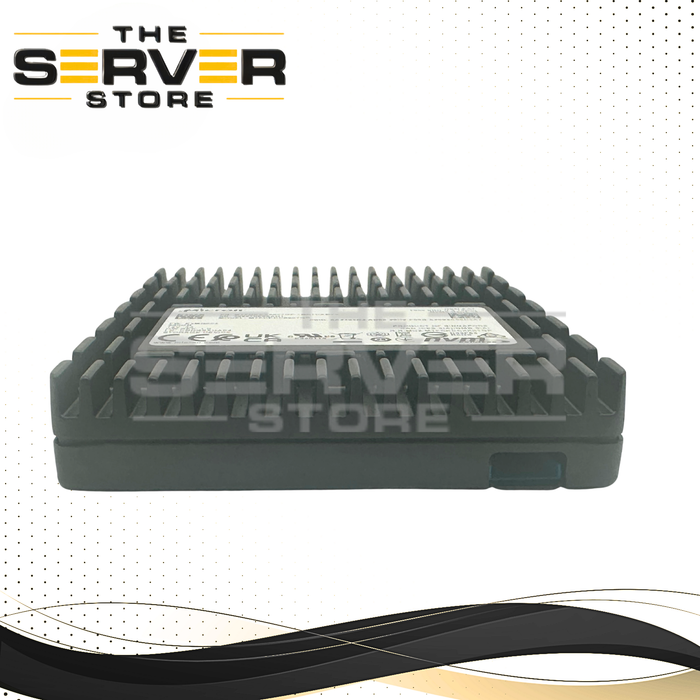

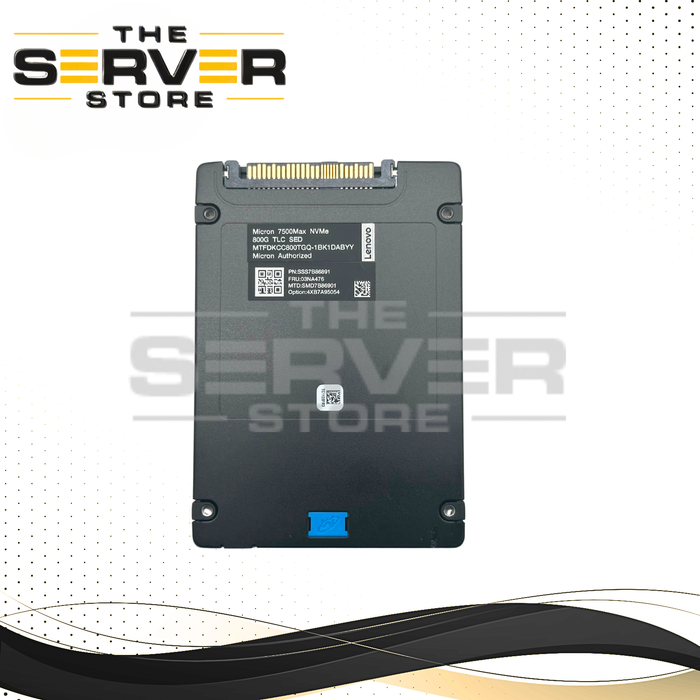

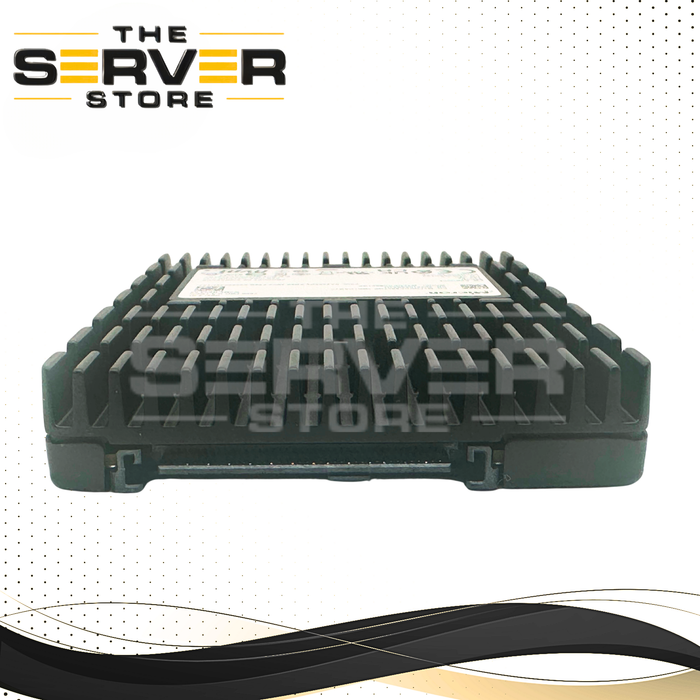

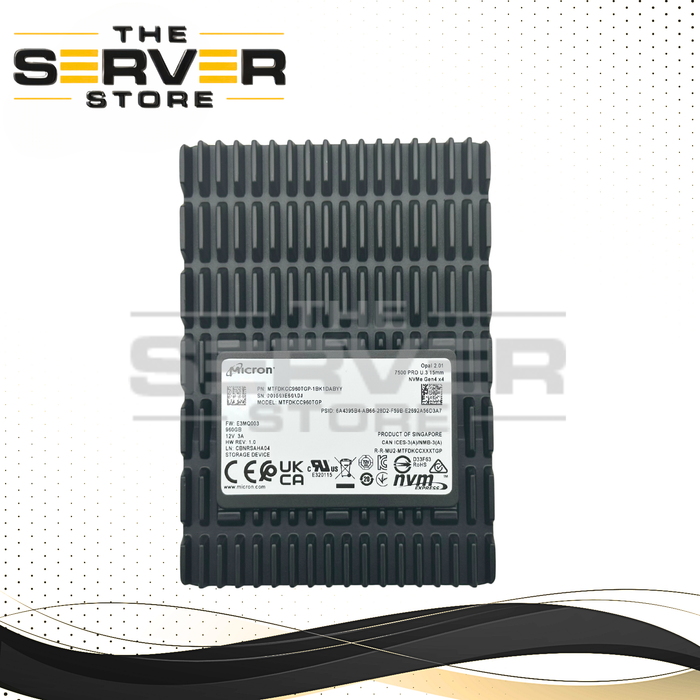

Micron 800GB NVME U.3 PCIe Gen 4.0 x4 MU SFF 2.5" SED SSD 7500 Max Series MTFDKCC800TGQ (Tray Not Included)

Micron 800GB NVMe U.3 PCIe Gen 4.0 x4 MU SFF 2.5" SED SSD 7500 MAX Series MTFDKCC800TGQ (Tray Not Included)

Product Overview

The Micron 800GB NVMe U.3 PCIe Gen 4.0 x4 Mixed Use (MU) Self-Encrypting Drive (SED) SSD is an enterprise-class storage solution built on the advanced Micron 7500 MAX Series platform. Designed for modern data center environments, this SSD delivers exceptional performance, ultra-low latency, enterprise-grade endurance, and advanced security for demanding workloads including virtualization, cloud computing, databases, analytics, AI, and business-critical applications.

Powered by Micron's 232-Layer TLC NAND technology, the 7500 MAX Series provides outstanding reliability, power efficiency, and consistent performance under sustained enterprise workloads.

Note: This listing includes the SSD only. Tray/Caddy is NOT included.

Part Numbers

Manufacturer Part Numbers:

• MTFDKCC800TGQ
• MTFDKCC800TGQ-1BK1DABYY
• MTFDKCC800TGQ-1BK1DABYYR

Series: Micron 7500 MAX Series

Key Features

• 800GB Enterprise NVMe SSD
• PCIe Gen 4.0 x4 Interface
• U.3 Connectivity
• Backward Compatible with Supported U.2 Infrastructure
• 2.5-Inch Small Form Factor (SFF)
• 15mm Form Factor Height
• Mixed Use (MU) Workload Optimized
• Self-Encrypting Drive (SED)
• TCG Opal 2.01 Security Support
• 256-Bit AES Hardware Encryption
• Advanced Power Loss Protection (PLP)
• Enterprise-Class Reliability
• Micron Enterprise Firmware
• 232-Layer TLC NAND Technology

Technical Specifications

• Manufacturer: Micron
• Model: MTFDKCC800TGQ
• Series: Micron 7500 MAX
• Capacity: 800GB
• NAND Type: 232-Layer TLC NAND
• Interface: PCIe Gen 4.0 x4 NVMe
• Protocol: NVMe
• Connector: U.3
• U.2 Compatible: Yes
• Form Factor: 2.5" SFF
• Height: 15mm
• Workload Type: Mixed Use (MU)
• Endurance: 3 DWPD
• Security: Self-Encrypting Drive (SED)
• Encryption: 256-Bit AES
• TCG Support: TCG Opal 2.01
• Power Loss Protection: Yes
• Tray Included: No

Performance Specifications

• Sequential Read Speed: Up to 6,800 MB/s
• Sequential Write Speed: Up to 5,900 MB/s
• Random Performance: Up to 200,000 IOPS
• Read Latency: As Low As 70µs
• Write Latency: As Low As 15µs

Reliability & Endurance

The Micron 7500 MAX Series is engineered for enterprise workloads requiring high write endurance and long-term reliability.

• 3 DWPD (Drive Writes Per Day)
• 4,380 TBW (Terabytes Written)
• Advanced Power Loss Protection (PLP)
• End-to-End Data Path Protection
• Enterprise Firmware Validation
• Dynamic and Static Wear Leveling
• Consistent Performance Under Sustained Workloads
• High-Endurance Mixed-Use Architecture

Security Features

• Self-Encrypting Drive (SED)
• TCG Opal 2.01 Compliance
• 256-Bit AES Hardware Encryption
• Digitally Signed Firmware
• Hardware-Based Encryption with Minimal Performance Impact
• Secure Device Authentication
• Secure Data Retirement Support

Compatible Platforms

• Enterprise Servers with U.3 NVMe Support
• PCIe Gen 4.0 x4 Infrastructure
• Supported U.2/U.3 Backplanes
• Storage Arrays and Appliances
• Hyper-Converged Infrastructure (HCI)
• Cloud Computing Platforms

Operating System Compatibility

• Windows Server 2019
• Windows Server 2022
• Windows Server 2025
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Ubuntu Server
• VMware ESXi
• Microsoft Hyper-V

Ideal Applications

• Virtualization Infrastructure
• VMware Environments
• Hyper-Converged Infrastructure (HCI)
• Cloud Computing
• SQL & NoSQL Databases
• Artificial Intelligence (AI)
• Machine Learning Workloads
• Big Data Analytics
• Software-Defined Storage
• High Performance Computing (HPC)
• Mission-Critical Enterprise Applications

Package Contents

• Micron 800GB 7500 MAX NVMe U.3 PCIe Gen4 SSD
• Micron Enterprise Firmware

Tray/Caddy Not Included

Alternate Part Numbers

MTFDKCC800TGQ
MTFDKCC800TGQ-1BK1DABYY
MTFDKCC800TGQ-1BK1DABYYR

The Micron 7500 MAX 800GB NVMe U.3 SSD delivers enterprise-
