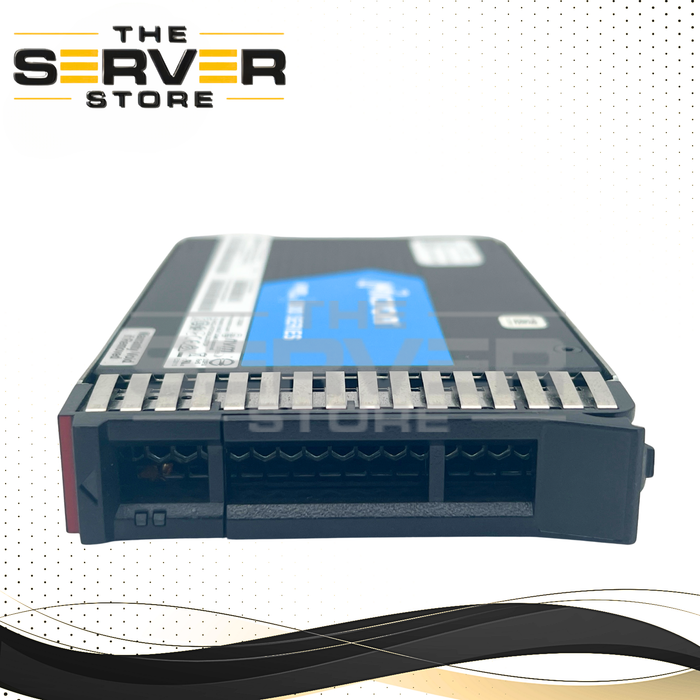

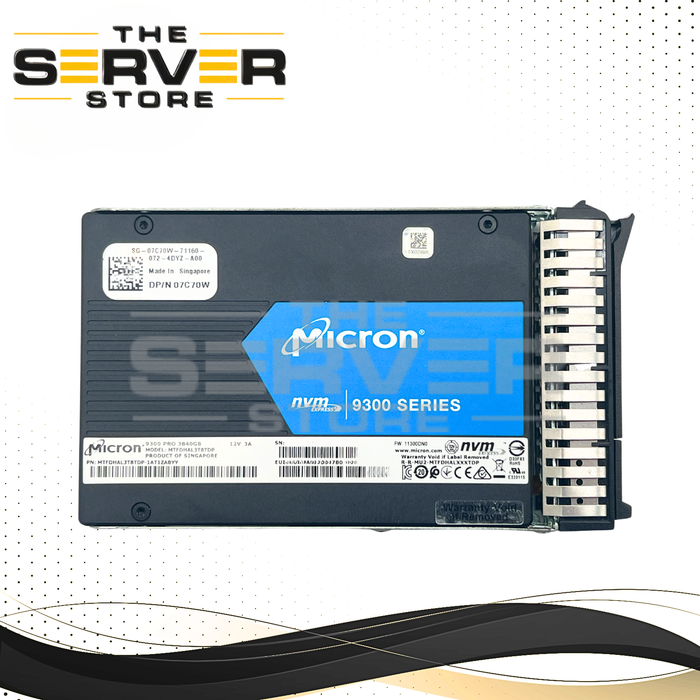

Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" 15mm SSD 9300 Series MTFDHAL3T8TDP for Lenovo ThinkSystem Server (Lenovo Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" 15mm SSD 9300 Series MTFDHAL3T8TDP for Lenovo ThinkSystem Server (Lenovo Tray Included)
Boost your data center performance with the Micron 9300 Series 3.84TB Enterprise NVMe SSD, a high-performance storage solution designed for demanding workloads including virtualization, cloud computing, AI/ML, databases, analytics, and software-defined storage environments. Built with advanced 64-Layer 3D TLC NAND and the ultra-fast PCIe Gen 3.0 x4 NVMe interface, this enterprise-grade SSD delivers outstanding throughput, low latency, and exceptional reliability.
This configuration includes a Lenovo ThinkSystem NVMe drive tray, making it ready for installation in compatible Lenovo ThinkSystem servers that support U.2 NVMe storage.
Key Features
- Manufacturer: Micron
- Series: Micron 9300
- Model Number: MTFDHAL3T8TDP
- Storage Capacity: 3.84TB
- Form Factor: 2.5-inch SFF U.2
- Drive Height: 15mm
- Interface: PCIe Gen 3.0 x4
- Protocol: NVMe 1.2
- NAND Type: 64-Layer 3D TLC NAND
- Enterprise Read Intensive (RI) Design
- Power Loss Protection (PLP)
- End-to-End Data Path Protection
- Secure Signed Firmware
- Cryptographic Erase Support
- Hot-Plug Capable
- Lenovo ThinkSystem NVMe Tray Included
Performance Specifications
- Sequential Read Speed: Up to 3,500 MB/s
- Sequential Write Speed: Up to 3,100 MB/s
- Random Read Performance: Up to 835,000 IOPS
- Random Write Performance: Up to 105,000 IOPS
- Average Read Latency: 86µs
- Average Write Latency: 11µs
Enterprise Reliability & Endurance
Designed for mission-critical enterprise workloads:
- Read Intensive (RI) Workload Rating
- Endurance Rating: Up to 8.4 PB TBW
- Drive Writes Per Day (DWPD): 1.0
- MTBF: 2 Million Hours
- Advanced Wear Leveling Technology
- Enterprise Error Correction
- Power Loss Protection
- End-to-End Data Integrity Protection
- UBER: Less than 1 Sector per 10¹⁷ Bits Read
Compatible Lenovo ThinkSystem Servers
Compatible with Lenovo servers supporting U.2 NVMe SSDs, including:
- Lenovo ThinkSystem SR630
- Lenovo ThinkSystem SR650
- Lenovo ThinkSystem SR635
- Lenovo ThinkSystem SR645
- Lenovo ThinkSystem SR655
- Lenovo ThinkSystem SR665
- Lenovo ThinkSystem ST650
- Lenovo ThinkSystem SN550 Compute Node
- Other Lenovo ThinkSystem platforms supporting 2.5-inch U.2 NVMe drives
Additional Platform Compatibility
This SSD can also be deployed in compatible NVMe-enabled systems from:
- Dell PowerEdge Servers
- HPE ProLiant Servers
- Cisco UCS Servers
- Supermicro Servers
- Gigabyte Enterprise Servers
- Intel Server Systems
- VMware vSAN Environments
- Microsoft Storage Spaces Direct (S2D)
- Ceph Storage Clusters
Technical Specifications
- Capacity: 3.84TB
- Form Factor: 2.5" Small Form Factor (SFF)
- Height: 15mm
- Interface: PCIe Gen 3.0 x4
- Drive Type: U.2 NVMe SSD
- Protocol: NVMe 1.2
- NAND Flash: 64-Layer 3D TLC
- Workload Type: Read Intensive (RI)
- Power Loss Protection: Yes
- Hot-Swap Support: Yes
- MTBF: 2,000,000 Hours
- Operating Temperature: 0°C to 70°C
Package Contents
- Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SSD
- Micron 9300 Series Enterprise SSD
- Model: MTFDHAL3T8TDP
- Lenovo ThinkSystem NVMe Drive Tray Included
Ideal Applications
- Lenovo ThinkSystem Enterprise Servers
- VMware and Hyper-V Virtualization
- Cloud Infrastructure
- Artificial Intelligence (AI) & Machine Learning
- Database and OLTP Applications
- High-Performance Analytics
- Software-Defined Storage
- Microsoft Storage Spaces Direct (S2D)
- VMware vSAN Clusters
- Enterprise Data Centers
The Micron 9300 Series 3.84TB NVMe SSD delivers enterprise-grade speed, endurance, and reliability, making it an excellent storage upgrade for Lenovo ThinkSystem environments requiring low-latency, high-capacity NVMe performance.
