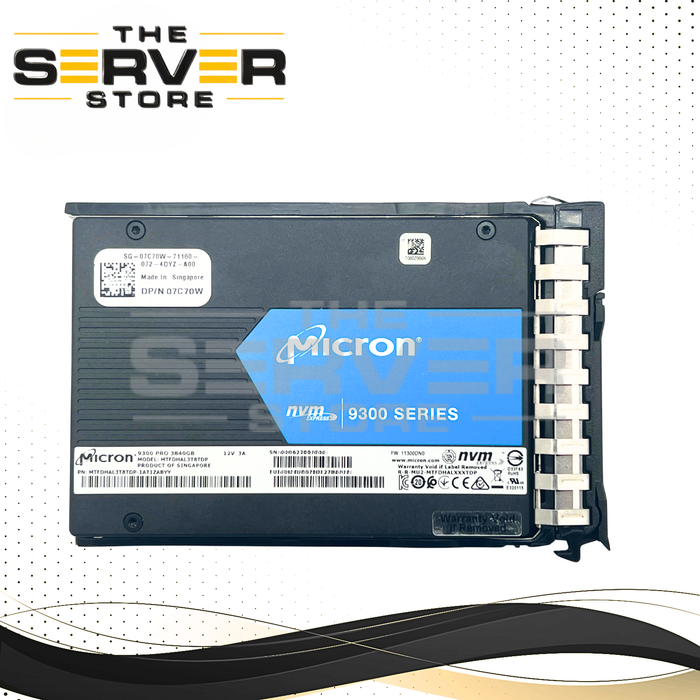

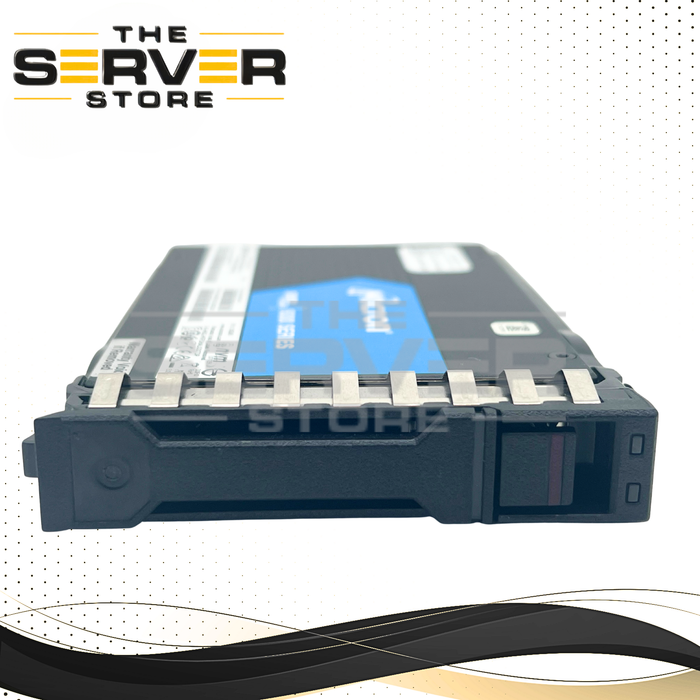

Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" 15mm SSD 9300 Series MTFDHAL3T8TDP for HPE ProLiant Gen10 Plus Gen11 Gen12 Server (HPE SFF BC Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SFF 2.5" 15mm SSD 9300 Series MTFDHAL3T8TDP for HPE ProLiant Gen10 Plus Gen11 Gen12 Server (HPE SFF BC Tray Included)
Maximize the performance of your HPE server environment with the Micron 9300 Series 3.84TB Enterprise NVMe SSD. Designed for modern data centers, virtualization, cloud infrastructure, AI/ML, database applications, and software-defined storage, this SSD delivers exceptional speed, low latency, and enterprise-class reliability.
Built with advanced 64-Layer 3D TLC NAND Flash and a high-performance PCIe Gen 3.0 x4 NVMe interface, the Micron 9300 Series is engineered to handle demanding enterprise workloads while providing dependable endurance and data protection.
This configuration includes an HPE SFF Basic Carrier (BC) Tray, specifically designed for HPE ProLiant Gen10 Plus, Gen11, and Gen12 servers that utilize the newer HPE Basic Carrier (BC) drive system.
Key Features
- Manufacturer: Micron
- Series: Micron 9300
- Model Number: MTFDHAL3T8TDP
- Storage Capacity: 3.84TB
- Form Factor: 2.5-inch SFF U.2
- Height: 15mm
- Interface: PCIe Gen 3.0 x4
- Protocol: NVMe
- NAND Technology: 64-Layer 3D TLC NAND
- Enterprise Read Intensive (RI) Design
- HPE SFF Basic Carrier (BC) Tray Included
- Hot-Plug Capable
- Power Loss Protection (PLP)
- End-to-End Data Protection
- Secure Signed Firmware
- Cryptographic Erase Support
- Enterprise-Class Reliability
Performance Specifications
- Sequential Read Speed: Up to 3,500 MB/s
- Sequential Write Speed: Up to 3,100 MB/s
- Random Read Performance: Up to 835,000 IOPS
- Random Write Performance: Up to 105,000 IOPS
- Average Read Latency: 86µs
- Average Write Latency: 11µs
Enterprise Reliability & Endurance
- Read Intensive (RI) Workload Rating
- Endurance Rating: Up to 8.4 PB TBW
- Drive Writes Per Day (DWPD): 1.0
- MTBF: 2 Million Hours
- Advanced Wear Leveling
- Enterprise Error Correction
- Power Loss Protection
- End-to-End Data Path Protection
- UBER: Less than 1 sector per 10¹⁷ bits read
Compatible HPE ProLiant Servers
Designed for HPE ProLiant Gen10 Plus, Gen11, and Gen12 servers equipped with HPE SFF Basic Carrier (BC) drive bays, including:
- HPE ProLiant DL360 Gen10 Plus
- HPE ProLiant DL380 Gen10 Plus
- HPE ProLiant DL325 Gen10 Plus
- HPE ProLiant DL385 Gen10 Plus
- HPE ProLiant DL360 Gen11
- HPE ProLiant DL380 Gen11
- HPE ProLiant DL325 Gen11
- HPE ProLiant DL385 Gen11
- HPE ProLiant Gen12 Platforms
- Additional HPE systems supporting U.2 NVMe drives with Basic Carrier trays
Important Compatibility Notice
Includes HPE SFF Basic Carrier (BC) Tray
Compatible with servers using HPE Basic Carrier drive bays
Supports NVMe-enabled U.2 storage configurations
Technical Specifications
- Capacity: 3.84TB
- Series: Micron 9300
- Model: MTFDHAL3T8TDP
- Form Factor: 2.5" SFF U.2
- Height: 15mm
- Interface: PCIe Gen 3.0 x4
- Protocol: NVMe
- NAND Flash: 64-Layer 3D TLC
- Workload Type: Read Intensive (RI)
- Power Loss Protection: Yes
- Hot-Swap Support: Yes
- MTBF: 2,000,000 Hours
Package Contents
- Micron 3.84TB NVMe U.2 PCIe Gen 3.0 x4 SSD
- Micron 9300 Series Enterprise SSD
- Model: MTFDHAL3T8TDP
- HPE SFF Basic Carrier (BC) Tray Included
Ideal Applications
- HPE ProLiant Gen10 Plus Servers
- HPE ProLiant Gen11 Servers
- HPE ProLiant Gen12 Servers
- VMware vSphere & vSAN
- Microsoft Hyper-V
- Cloud Infrastructure
- Artificial Intelligence (AI)
- Machine Learning Workloads
- Database Servers
- Software-Defined Storage
- Enterprise Data Centers
The Micron 9300 Series 3.84TB NVMe SSD with HPE SFF Basic Carrier (BC) delivers enterprise-grade storage performance, reliability, and endurance, making it an excellent upgrade for HPE ProLiant Gen10 Plus, Gen11, and Gen12 server environments utilizing the HPE Basic Carrier platform.
