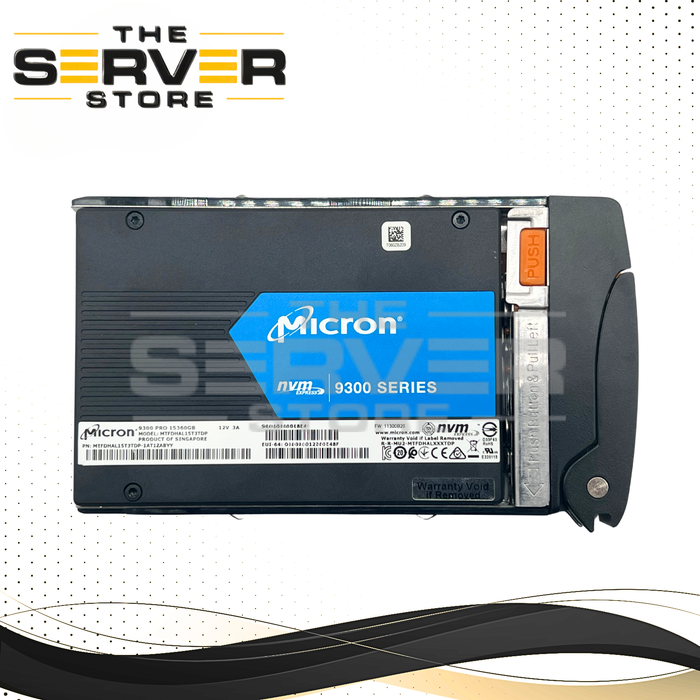

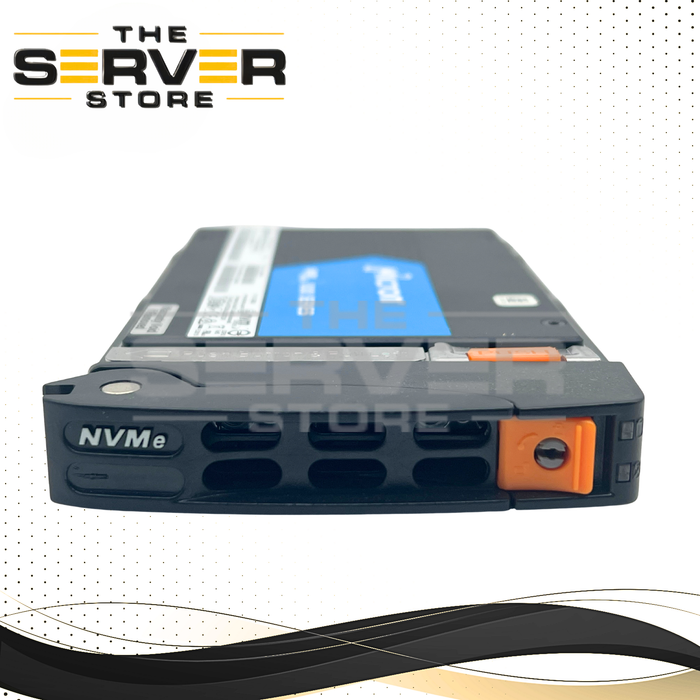

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP for Supermicro Server (Supermicro 2.5" Tray Included)

Product Overview

The Micron 9300 PRO MTFDHAL15T3TDP is a high-capacity enterprise NVMe SSD designed to meet the demanding requirements of modern data centers, virtualization environments, cloud infrastructure, analytics platforms, and read-intensive storage applications. Built with Micron's advanced 64-layer 3D TLC NAND technology, this drive delivers exceptional performance, reliability, and endurance in a compact 2.5-inch U.2 form factor.

This version includes a Supermicro 2.5-inch NVMe drive tray, making it an ideal upgrade or replacement storage solution for compatible Supermicro servers and storage systems.

Key Features

• 15.36TB Enterprise-Class Storage Capacity
• Supermicro 2.5" NVMe Drive Tray Included
• PCIe Gen3 x4 NVMe 1.3 Interface
• U.2 (SFF-8639) 2.5-inch Form Factor
• Micron 64-Layer 3D TLC NAND Flash
• Read-Intensive (RI) Workload Optimization
• Power-Loss Protection (PLP)
• End-to-End Data Path Protection
• Cryptographic Erase Support
• Enterprise-Class Reliability and Performance

Technical Specifications

General

• Manufacturer: Micron
• Series: 9300 PRO
• Part Number: MTFDHAL15T3TDP
• Capacity: 15.36TB
• Form Factor: 2.5" SFF (15mm)
• Interface: PCIe Gen3 x4 NVMe 1.3
• Connector: U.2 (SFF-8639)
• NAND Type: 64-Layer 3D TLC NAND
• Sector Format: 512e / 4Kn
• Tray Included: Supermicro 2.5" NVMe Drive Tray

Performance

• Sequential Read: Up to 3,500 MB/s
• Sequential Write: Up to 3,500 MB/s
• Random Read (4K): Up to 850,000 IOPS
• Random Write (4K): Up to 150,000 IOPS
• Typical Read Latency: 86µs
• Typical Write Latency: 11µs

Reliability & Endurance

• Workload Type: Read Intensive (RI)
• Drive Writes Per Day (DWPD): 1.0
• Endurance: 33.6PB TBW
• MTBF: 2 Million Hours
• UBER: Less than 1 sector per 10¹⁷ bits read
• Power-Loss Protection: Yes
• End-to-End Data Path Protection: Yes
• Cryptographic Erase: Supported

Power & Environmental

• Read Power Consumption: 14W Typical
• Write Power Consumption: 21W Maximum
• Idle Power Consumption: 6.5W Typical
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Physical Dimensions

• Width: 70.10mm
• Length: 100.45mm
• Height: 15.00mm
• Weight: Approximately 235g

Compatible Equipment

Supermicro Servers

Compatible with many Supermicro NVMe-enabled systems, including:

• Supermicro SuperServer SYS-1029 Series
• Supermicro SuperServer SYS-2029 Series
• Supermicro SuperServer SYS-6029 Series
• Supermicro Ultra Series Servers
• Supermicro Hyper Series Servers
• Supermicro BigTwin Systems
• Supermicro TwinPro Systems
• Additional Supermicro NVMe-enabled platforms supporting U.2 SSDs

Compatible Controllers & HBAs

• Broadcom / LSI 9400 Series Tri-Mode HBAs
• Broadcom / LSI 9500 Series Tri-Mode HBAs
• Broadcom / LSI 9600 Series Tri-Mode HBAs
• Broadcom MegaRAID 9560 Series
• Adaptec SmartHBA 3100 Series
• Adaptec SmartRAID 3200 Series

Operating System Support

• VMware ESXi 6.7, 7.0, 8.0
• Windows Server 2016 / 2019 / 2022
• Windows 10 / 11
• Ubuntu 18.04 and Newer
• Red Hat Enterprise Linux (RHEL) / CentOS 7.x and Newer
• Debian Linux Distributions

Ideal Applications

• Virtualization Infrastructure
• Cloud Computing Platforms
• Enterprise Storage Arrays
• Database Servers
• Big Data Analytics
• Software-Defined Storage
• Content Delivery Networks (CDN)
• High-Density Data Centers

Package Includes:

• 1x Micron 9300 PRO 15.36TB NVMe U.2 Enterprise SSD (MTFDHAL15T3TDP)
• 1x Supermicro 2.5" NVMe Drive Tray/Carrier Installed
• Secure Packaging for Safe Shipping and Deployment

Condition: Tested, Fully Functional, and Ready for Enterprise Deployment.
