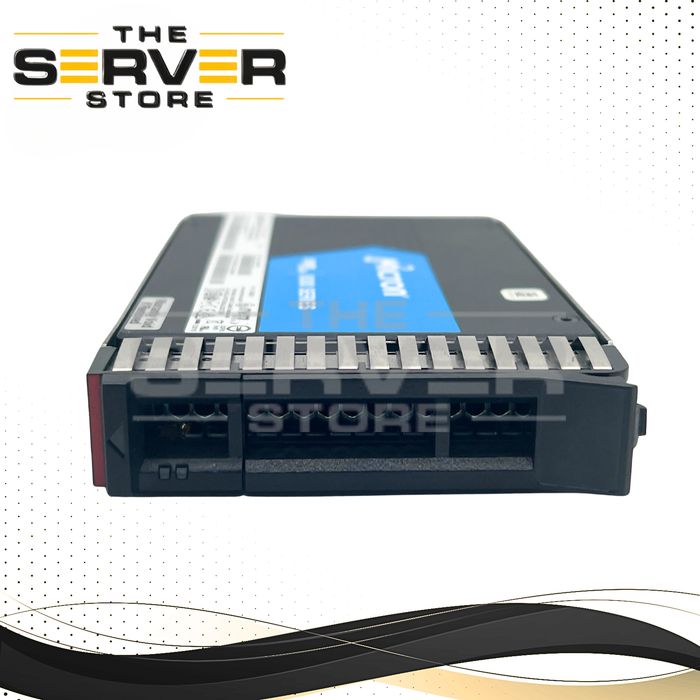

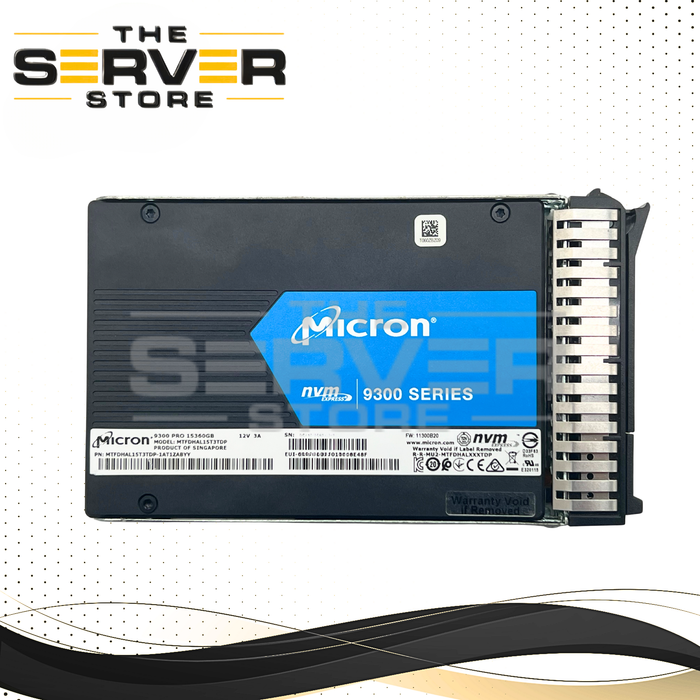

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP for Lenovo ThinkSystem Servers (Lenovo ThinkSystem 2.5" Tray Included)

Product Overview

The Micron 9300 PRO MTFDHAL15T3TDP is a high-capacity enterprise NVMe SSD designed for demanding data center environments, cloud infrastructure, virtualization platforms, enterprise storage arrays, and read-intensive workloads. Built with Micron's advanced 64-layer 3D TLC NAND technology, it delivers outstanding performance, reliability, and endurance in a compact 2.5-inch U.2 form factor.

This version includes a Lenovo ThinkSystem 2.5-inch drive tray, making it an excellent storage upgrade or replacement solution for compatible Lenovo ThinkSystem servers requiring high-density, enterprise-grade NVMe storage.

Key Features

• 15.36TB Enterprise-Class Storage Capacity
• Lenovo ThinkSystem 2.5" Drive Tray Included
• PCIe Gen3 x4 NVMe 1.3 Interface
• U.2 (SFF-8639) 2.5-inch Form Factor
• Micron 64-Layer 3D TLC NAND Flash
• Read-Intensive (RI) Workload Optimization
• Power-Loss Protection (PLP)
• End-to-End Data Path Protection
• Cryptographic Erase Support
• Enterprise-Grade Reliability and Endurance

Technical Specifications

General

• Manufacturer: Micron
• Series: 9300 PRO
• Part Number: MTFDHAL15T3TDP
• Capacity: 15.36TB
• Form Factor: 2.5" SFF (15mm)
• Interface: PCIe Gen3 x4 NVMe 1.3
• Connector: U.2 (SFF-8639)
• NAND Type: 64-Layer 3D TLC NAND
• Sector Format: 512e / 4Kn
• Tray Included: Lenovo ThinkSystem 2.5" NVMe Drive Tray

Performance

• Sequential Read Speed: Up to 3,500 MB/s
• Sequential Write Speed: Up to 3,500 MB/s
• Random Read (4K): Up to 850,000 IOPS
• Random Write (4K): Up to 150,000 IOPS
• Typical Read Latency: 86µs
• Typical Write Latency: 11µs

Reliability & Endurance

• Workload Type: Read Intensive (RI)
• Drive Writes Per Day (DWPD): 1.0
• Endurance Rating: 33.6PB TBW
• MTBF: 2 Million Hours
• UBER: Less than 1 sector per 10¹⁷ bits read
• Power-Loss Protection: Yes
• End-to-End Data Path Protection: Yes
• Cryptographic Erase: Supported

Power & Environmental

• Read Power Consumption: 14W Typical
• Write Power Consumption: 21W Maximum
• Idle Power Consumption: 6.5W Typical
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Physical Dimensions

• Width: 70.10mm
• Length: 100.45mm
• Height: 15.00mm
• Weight: Approximately 235g

Compatible Lenovo ThinkSystem Servers

Compatible with Lenovo ThinkSystem servers supporting U.2 NVMe SSDs, including:

• Lenovo ThinkSystem SR630
• Lenovo ThinkSystem SR650
• Lenovo ThinkSystem SR630 V2
• Lenovo ThinkSystem SR650 V2
• Lenovo ThinkSystem SR635
• Lenovo ThinkSystem SR655
• Lenovo ThinkSystem SR665
• Lenovo ThinkSystem SR670
• Additional Lenovo ThinkSystem NVMe-enabled platforms

Compatible Controllers & HBAs

• Broadcom / LSI 9400 Series Tri-Mode HBAs
• Broadcom / LSI 9500 Series Tri-Mode HBAs
• Broadcom / LSI 9600 Series Tri-Mode HBAs
• Broadcom MegaRAID 9560 Series
• Adaptec SmartHBA 3100 Series
• Adaptec SmartRAID 3200 Series

Operating System Support

• VMware ESXi 6.7, 7.0, and 8.0
• Windows Server 2016, 2019, and 2022
• Windows 10 and Windows 11
• Ubuntu 18.04 and newer
• Red Hat Enterprise Linux (RHEL) / CentOS 7.x and newer
• Debian Linux Distributions

Ideal Applications

• Virtualization Infrastructure
• Cloud Computing Platforms
• Enterprise Storage Arrays
• Database Servers
• Big Data Analytics
• Software-Defined Storage
• Content Delivery Networks (CDN)
• High-Density Data Centers

Package Includes

• 1x Micron 9300 PRO 15.36TB NVMe U.2 Enterprise SSD (MTFDHAL15T3TDP)
• 1x Lenovo ThinkSystem 2.5" NVMe Drive Tray/Carrier Installed
• Secure Packaging for Safe Shipping and Deployment

Condition: Tested, Fully Functional, and Ready for Enterprise Deployment.
