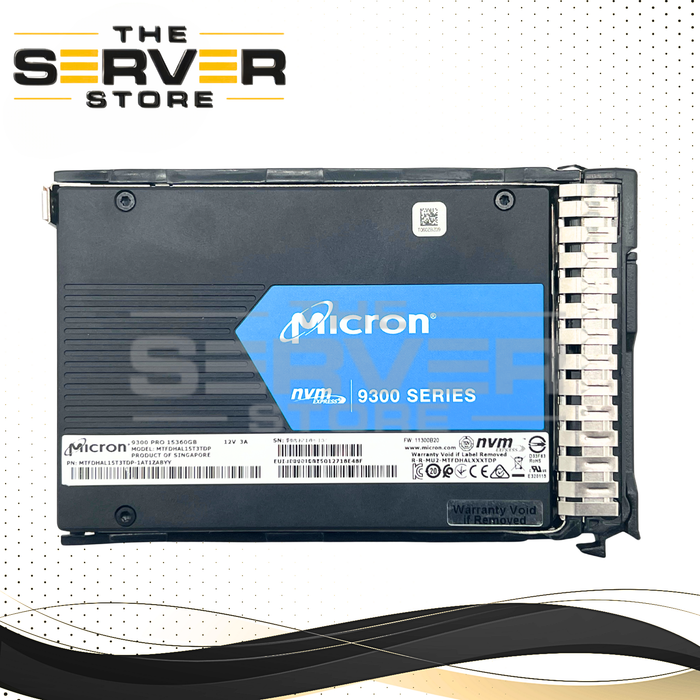

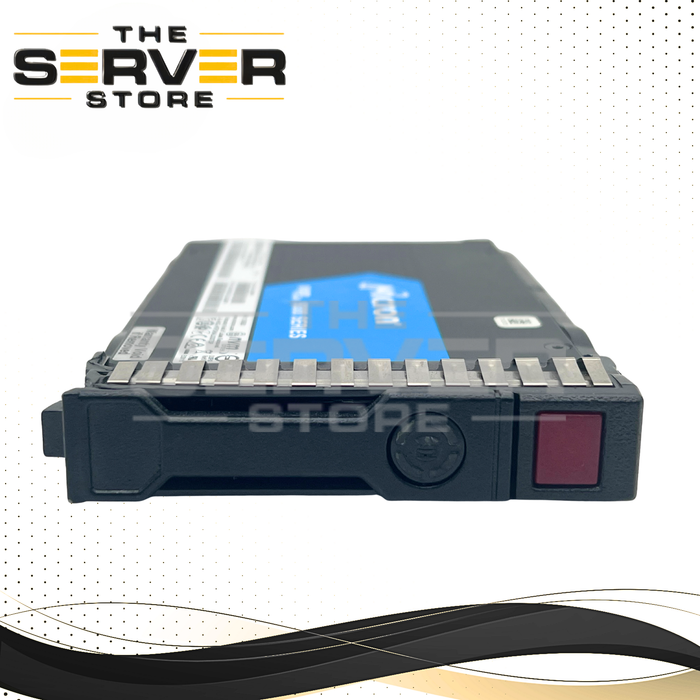

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP for HPE ProLiant Server G10 G9 (HPE SFF SC Tray Included)

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP for HPE ProLiant Server G10 G9 (HPE SFF SC Tray Included)

Product Overview

The Micron 9300 PRO MTFDHAL15T3TDP is a high-performance enterprise NVMe SSD built for modern data centers, virtualization environments, cloud platforms, enterprise storage arrays, and read-intensive applications. Utilizing Micron's advanced 64-layer 3D TLC NAND technology, this SSD provides exceptional speed, reliability, and endurance in a compact 2.5-inch U.2 form factor.

This version includes an HPE Smart Carrier (SC) Small Form Factor (SFF) tray, making it a convenient storage upgrade or replacement solution for compatible HPE ProLiant Gen9 and Gen10 servers.

Key Features

• 15.36TB Enterprise-Class Storage Capacity
• HPE SFF Smart Carrier (SC) Tray Included
• PCIe Gen3 x4 NVMe 1.3 Interface
• U.2 (SFF-8639) 2.5-inch Form Factor
• Micron 64-Layer 3D TLC NAND Flash
• Read-Intensive (RI) Workload Optimization
• Power-Loss Protection (PLP)
• End-to-End Data Path Protection
• Cryptographic Erase Support
• Enterprise-Class Reliability and Endurance

Technical Specifications

General

• Manufacturer: Micron
• Series: 9300 PRO
• Part Number: MTFDHAL15T3TDP
• Capacity: 15.36TB
• Form Factor: 2.5" SFF (15mm)
• Interface: PCIe Gen3 x4 NVMe 1.3
• Connector: U.2 (SFF-8639)
• NAND Type: 64-Layer 3D TLC NAND
• Sector Format: 512e / 4Kn
• Tray Included: HPE SFF Smart Carrier (SC)

Performance

• Sequential Read Speed: Up to 3,500 MB/s
• Sequential Write Speed: Up to 3,500 MB/s
• Random Read (4K): Up to 850,000 IOPS
• Random Write (4K): Up to 150,000 IOPS
• Typical Read Latency: 86µs
• Typical Write Latency: 11µs

Reliability & Endurance

• Workload Type: Read Intensive (RI)
• Drive Writes Per Day (DWPD): 1.0
• Endurance Rating: 33.6PB TBW
• MTBF: 2 Million Hours
• UBER: Less than 1 sector per 10¹⁷ bits read
• Power-Loss Protection: Yes
• End-to-End Data Path Protection: Yes
• Cryptographic Erase: Supported

Power & Environmental

• Read Power Consumption: 14W Typical
• Write Power Consumption: 21W Maximum
• Idle Power Consumption: 6.5W Typical
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Physical Dimensions

• Width: 70.10mm
• Length: 100.45mm
• Height: 15.00mm
• Weight: Approximately 235g

Compatible HPE ProLiant Servers

Compatible with HPE ProLiant servers that support U.2 NVMe SSDs, including:

• HPE ProLiant DL360 Gen10
• HPE ProLiant DL380 Gen10
• HPE ProLiant DL385 Gen10
• HPE ProLiant DL560 Gen10
• HPE ProLiant DL580 Gen10
• HPE ProLiant DL360 Gen9
• HPE ProLiant DL380 Gen9
• HPE ProLiant DL560 Gen9
• Additional HPE ProLiant NVMe-enabled Gen9 and Gen10 platforms

Compatible Controllers & HBAs

• Broadcom / LSI 9400 Series Tri-Mode HBAs
• Broadcom / LSI 9500 Series Tri-Mode HBAs
• Broadcom / LSI 9600 Series Tri-Mode HBAs
• Broadcom MegaRAID 9560 Series
• Adaptec SmartHBA 3100 Series
• Adaptec SmartRAID 3200 Series

Operating System Support

• VMware ESXi 6.7, 7.0, and 8.0
• Windows Server 2016, 2019, and 2022
• Windows 10 and Windows 11
• Ubuntu 18.04 and newer
• Red Hat Enterprise Linux (RHEL) / CentOS 7.x and newer
• Debian Linux Distributions

Ideal Applications

• Virtualization Infrastructure
• Cloud Computing Platforms
• Enterprise Storage Arrays
• Database Servers
• Big Data Analytics
• Software-Defined Storage
• Content Delivery Networks (CDN)
• High-Density Data Centers

Package Includes

• 1x Micron 9300 PRO 15.36TB NVMe U.2 Enterprise SSD (MTFDHAL15T3TDP)
• 1x HPE SFF Smart Carrier (SC) Tray Installed
• Secure Packaging for Safe Shipping and Deployment

Condition: Tested, Fully Functional, and Ready for Enterprise Deployment.
