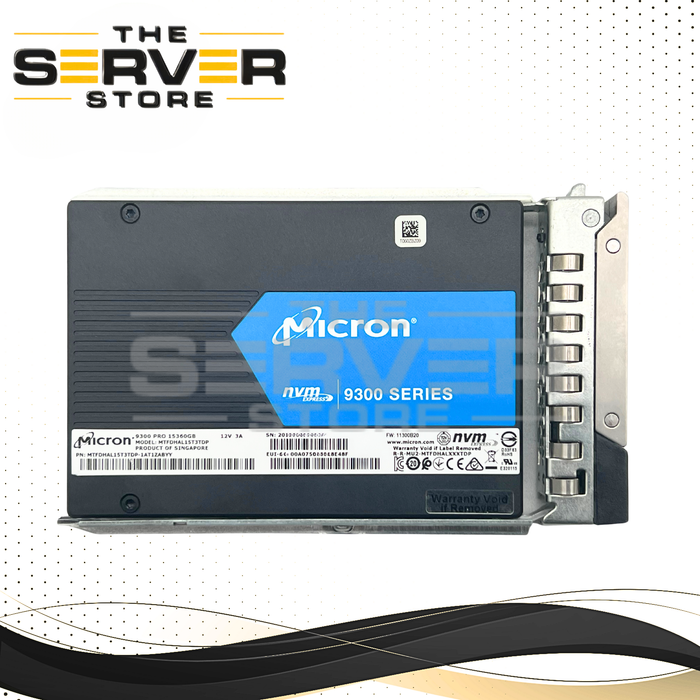

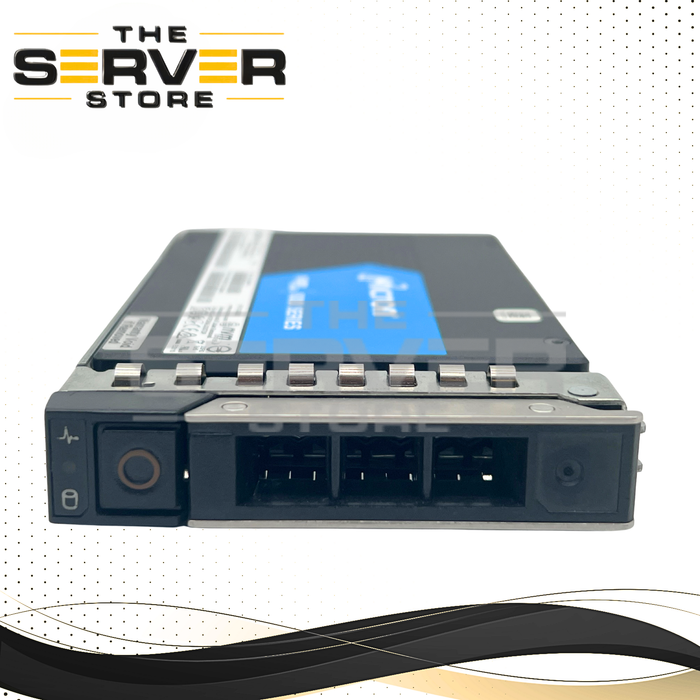

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP For Dell PowerEdge Server (Dell PowerEdge G15th Included)

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP (Dell PowerEdge Gen 15 Tray Included)

Product Overview

The Micron 9300 PRO MTFDHAL15T3TDP is a high-capacity enterprise NVMe SSD engineered for modern data centers, virtualization platforms, cloud computing, analytics, and read-intensive workloads. Utilizing Micron's advanced 64-layer 3D TLC NAND technology, this SSD delivers exceptional performance, reliability, and endurance in a compact 2.5-inch U.2 form factor.

This version includes a Dell PowerEdge Gen 15 (G15) NVMe drive tray, allowing seamless installation into compatible Dell PowerEdge servers while maintaining enterprise-class storage performance and dependability.

Key Features

• 15.36TB Enterprise-Class Storage Capacity
• Dell PowerEdge Gen 15 NVMe Drive Tray Included
• PCIe Gen3 x4 NVMe 1.3 Interface
• U.2 (SFF-8639) 2.5-inch Form Factor
• Micron 64-Layer 3D TLC NAND Flash
• Read-Intensive (RI) Workload Optimization
• Power-Loss Protection (PLP)
• End-to-End Data Path Protection
• Cryptographic Erase Support
• Enterprise-Grade Reliability and Endurance

Technical Specifications

General

• Manufacturer: Micron
• Series: 9300 PRO
• Part Number: MTFDHAL15T3TDP
• Capacity: 15.36TB
• Form Factor: 2.5" SFF (15mm)
• Interface: PCIe Gen3 x4 NVMe 1.3
• Connector: U.2 (SFF-8639)
• NAND Type: 64-Layer 3D TLC NAND
• Sector Format: 512e / 4Kn
• Tray Included: Dell PowerEdge Gen 15 NVMe Carrier

Performance

• Sequential Read: Up to 3,500 MB/s
• Sequential Write: Up to 3,500 MB/s
• Random Read (4K): Up to 850,000 IOPS
• Random Write (4K): Up to 150,000 IOPS
• Typical Read Latency: 86µs
• Typical Write Latency: 11µs

Reliability & Endurance

• Workload Type: Read Intensive (RI)
• Drive Writes Per Day (DWPD): 1.0
• Endurance: 33.6PB TBW
• MTBF: 2 Million Hours
• UBER: Less than 1 sector per 10¹⁷ bits read
• Power-Loss Protection: Yes
• End-to-End Data Path Protection: Yes
• Cryptographic Erase: Supported

Power & Environmental

• Read Power Consumption: 14W Typical
• Write Power Consumption: 21W Maximum
• Idle Power Consumption: 6.5W Typical
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Physical Dimensions

• Width: 70.10 mm
• Length: 100.45 mm
• Height: 15.00 mm
• Weight: Approximately 235g

Compatible Dell PowerEdge Servers

The included Dell Gen 15 carrier is compatible with supported NVMe-capable PowerEdge servers, including:

• Dell PowerEdge R650
• Dell PowerEdge R750
• Dell PowerEdge R760
• Dell PowerEdge R660
• Dell PowerEdge R760xs
• Dell PowerEdge R6625
• Dell PowerEdge R7625

Additional Compatible Equipment

Enterprise Servers

• Dell PowerEdge R640, R740xd
• HPE ProLiant DL360 Gen10 / Gen11
• HPE ProLiant DL380 Gen10 / Gen11
• Cisco UCS C220 & C240 M5/M6
• Supermicro NVMe-Enabled SuperServers

Compatible Controllers & HBAs

• Broadcom / LSI 9400 Series Tri-Mode HBAs
• Broadcom / LSI 9500 Series Tri-Mode HBAs
• Broadcom / LSI 9600 Series Tri-Mode HBAs
• Broadcom MegaRAID 9560 Series
• Adaptec SmartHBA 3100 Series
• Adaptec SmartRAID 3200 Series

Operating System Support

• VMware ESXi 6.7, 7.0, 8.0
• Windows Server 2016, 2019, 2022
• Windows 10 & Windows 11
• Ubuntu 18.04 and Newer
• Red Hat Enterprise Linux (RHEL) / CentOS 7.x and Newer
• Debian Linux Distributions

Ideal Applications

• Virtualization Infrastructure
• Cloud Computing Platforms
• Enterprise Storage Arrays
• Database Servers
• Big Data Analytics
• Software-Defined Storage
• Content Delivery Networks (CDN)
• High-Density Data Centers

Package Includes:

• 1x Micron 9300 PRO 15.36TB NVMe U.2 Enterprise SSD (MTFDHAL15T3TDP)
• 1x Dell PowerEdge Gen 15 NVMe Drive Tray/Carrier Installed and Ready for Deployment
• Secure Packaging for Safe Transport and Installation
