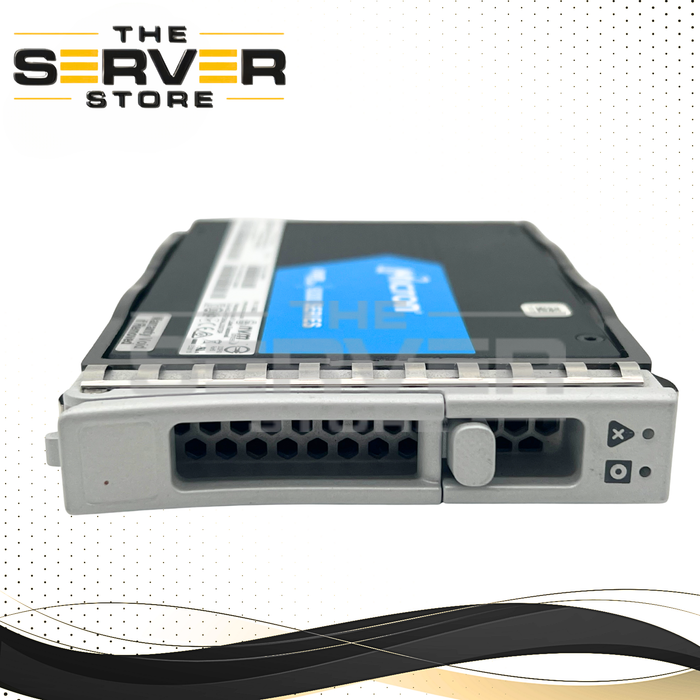

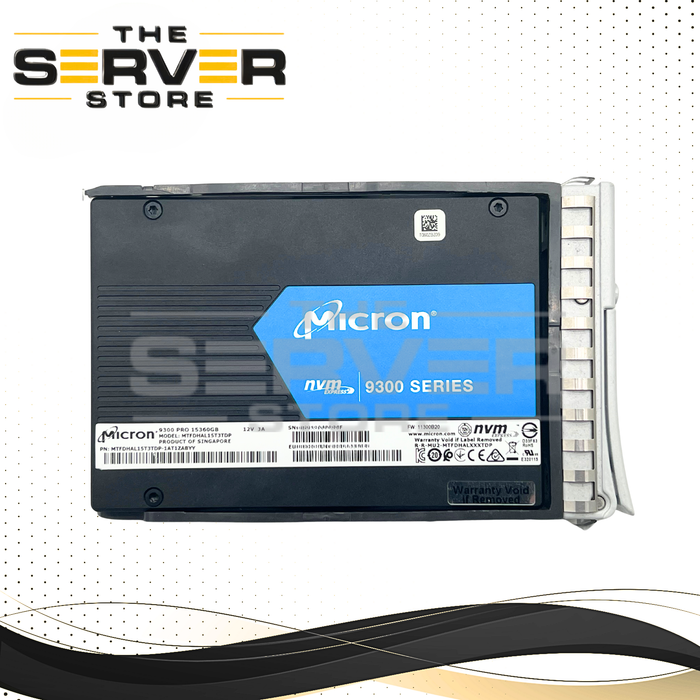

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP (Cisco UCS 2.5" Tray Included)

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP (Cisco UCS 2.5" Tray Included)

Product Overview

The Micron 9300 PRO MTFDHAL15T3TDP is a high-capacity enterprise NVMe SSD engineered for data centers, cloud environments, virtualization platforms, enterprise storage systems, and read-intensive workloads. Built with Micron's advanced 64-layer 3D TLC NAND technology, this drive delivers outstanding performance, reliability, and endurance in a compact 2.5-inch U.2 form factor.

This version includes a Cisco UCS 2.5-inch drive tray, making it an ideal storage upgrade or replacement for compatible Cisco UCS servers requiring high-density, enterprise-grade NVMe storage.

Key Features

• 15.36TB Enterprise-Class Storage Capacity
• Cisco UCS 2.5" Drive Tray Included
• PCIe Gen3 x4 NVMe 1.3 Interface
• U.2 (SFF-8639) 2.5-inch Form Factor
• Micron 64-Layer 3D TLC NAND Flash
• Read-Intensive (RI) Workload Optimization
• Power-Loss Protection (PLP)
• End-to-End Data Path Protection
• Cryptographic Erase Support
• Enterprise-Grade Reliability and Endurance

Technical Specifications

General

• Manufacturer: Micron
• Series: 9300 PRO
• Part Number: MTFDHAL15T3TDP
• Capacity: 15.36TB
• Form Factor: 2.5" SFF (15mm)
• Interface: PCIe Gen3 x4 NVMe 1.3
• Connector: U.2 (SFF-8639)
• NAND Type: 64-Layer 3D TLC NAND
• Sector Format: 512e / 4Kn
• Tray Included: Cisco UCS 2.5" Drive Tray

Performance

• Sequential Read Speed: Up to 3,500 MB/s
• Sequential Write Speed: Up to 3,500 MB/s
• Random Read (4K): Up to 850,000 IOPS
• Random Write (4K): Up to 150,000 IOPS
• Typical Read Latency: 86µs
• Typical Write Latency: 11µs

Reliability & Endurance

• Workload Type: Read Intensive (RI)
• Drive Writes Per Day (DWPD): 1.0
• Endurance Rating: 33.6PB TBW
• MTBF: 2 Million Hours
• UBER: Less than 1 sector per 10¹⁷ bits read
• Power-Loss Protection: Yes
• Data Path Protection: Yes
• Cryptographic Erase: Supported

Power & Environmental

• Read Power Consumption: 14W Typical
• Write Power Consumption: 21W Maximum
• Idle Power Consumption: 6.5W Typical
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Physical Dimensions

• Width: 70.10mm
• Length: 100.45mm
• Height: 15.00mm
• Weight: Approximately 235g

Compatible Cisco UCS Systems

Compatible with many Cisco UCS platforms that support U.2 NVMe SSDs, including:

• Cisco UCS C220 M5
• Cisco UCS C240 M5
• Cisco UCS C220 M6
• Cisco UCS C240 M6
• Cisco UCS C220 M7
• Cisco UCS C240 M7
• Cisco UCS S-Series Storage Servers
• Additional Cisco UCS NVMe-enabled platforms

Compatible Controllers & HBAs

• Broadcom / LSI 9400 Series Tri-Mode HBAs
• Broadcom / LSI 9500 Series Tri-Mode HBAs
• Broadcom / LSI 9600 Series Tri-Mode HBAs
• Broadcom MegaRAID 9560 Series
• Adaptec SmartHBA 3100 Series
• Adaptec SmartRAID 3200 Series

Operating System Support

• VMware ESXi 6.7, 7.0, and 8.0
• Windows Server 2016, 2019, and 2022
• Windows 10 and Windows 11
• Ubuntu 18.04 and newer
• Red Hat Enterprise Linux (RHEL) / CentOS 7.x and newer
• Debian Linux Distributions

Ideal Applications

• Virtualization Infrastructure
• Cloud Computing Platforms
• Enterprise Storage Arrays
• Database Servers
• Big Data Analytics
• Software-Defined Storage
• Content Delivery Networks (CDN)
• High-Density Data Centers

Package Includes

• 1x Micron 9300 PRO 15.36TB NVMe U.2 Enterprise SSD (MTFDHAL15T3TDP)
• 1x Cisco UCS 2.5" Drive Tray/Carrier Installed
• Secure Packaging for Safe Shipping and Deployment

Condition: Tested, Fully Functional, and Ready for Enterprise Deployment.
