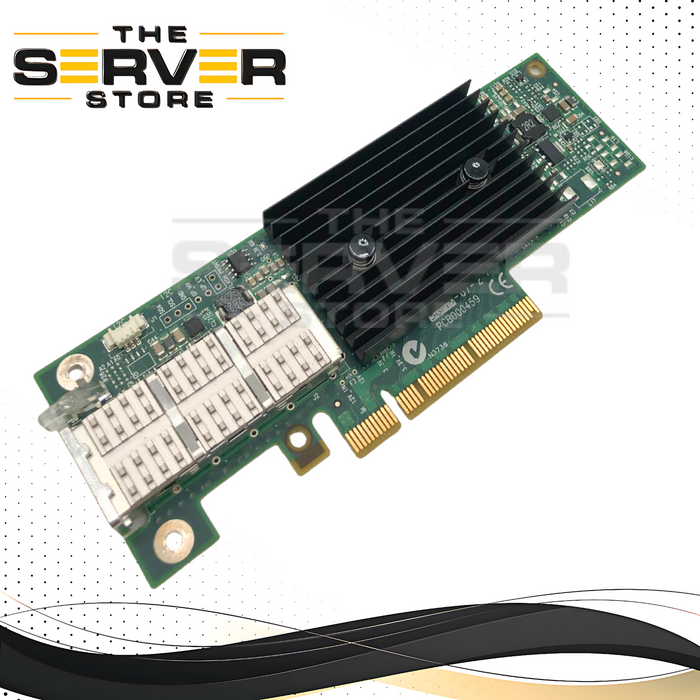

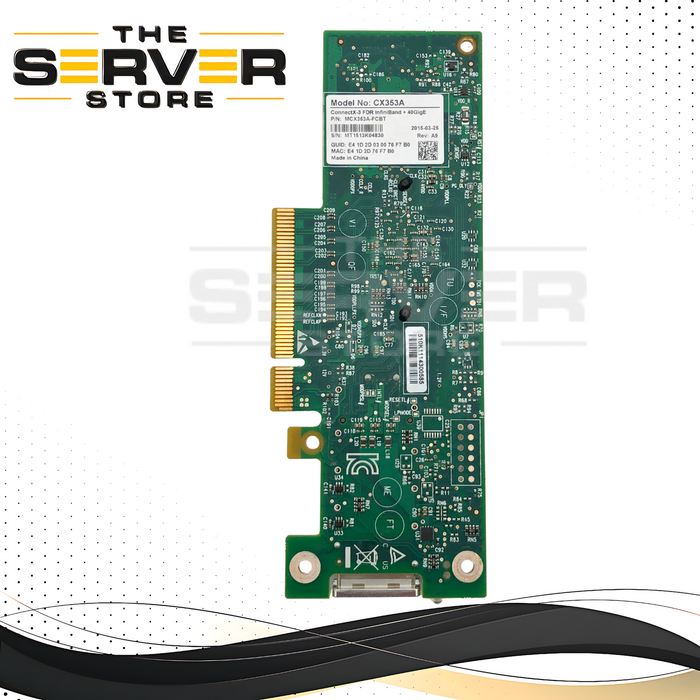

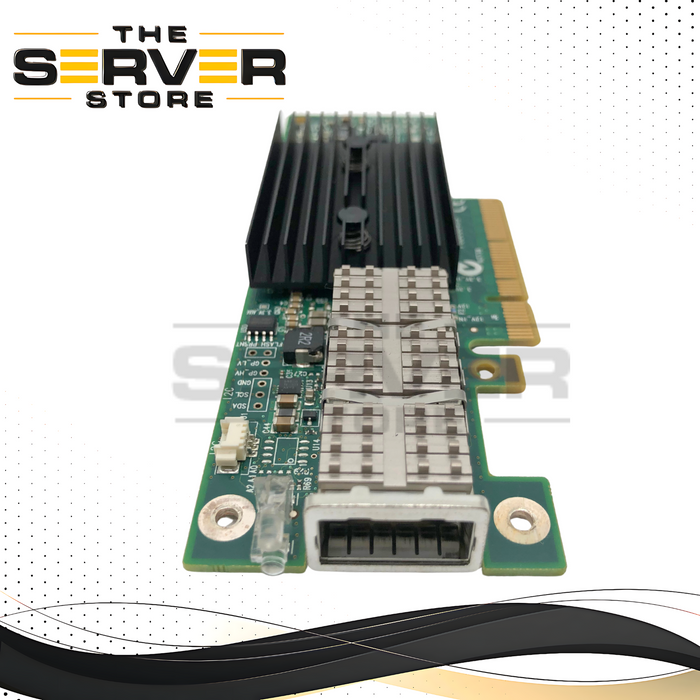

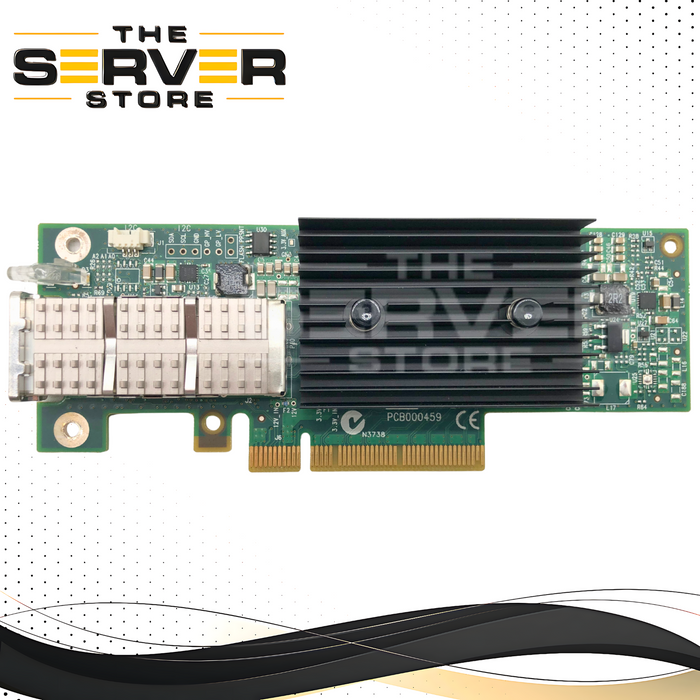

Mellanox ConnectX-3 VPI Single-Port FDR InfiniBand (56Gb/s) and 40/56GbE Adapter Card. RDMA Card Only, No Bracket. P/N: MCX353A-FCBT.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MCX353A-FCBT, CX353A |
| Manufacturer | Mellanox (an NVIDIA company) |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Host Channel Adapter (HCA) |
| Model | ConnectX-3 VPI |
| Form Factor | Card Only |
| Interface | InfiniBand / Ethernet |
| External Interfaces | 1x QSFP+ Port |
| Storage Capacity | |
| Transfer Rate | 56 Gb/s |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | ~13 W |
| Compatible Port | PCIe 3.0 x8 |
| Number of Ports | 1 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a Mellanox ConnectX-3 VPI Single-Port Adapter Card (P/N: MCX353A-FCBT). This high-performance PCIe card is engineered to provide an extremely powerful and flexible interconnect solution for High-Performance Computing (HPC), enterprise data centers, and storage infrastructure. Its key feature is Virtual Protocol Interconnect (VPI), which allows the card to operate as either an FDR InfiniBand port or a 40/56GbE Ethernet port, offering unparalleled flexibility.
Please Note: This listing is for the adapter card only. *A mounting bracket is not included.*
Key Features
-
Virtual Protocol Interconnect (VPI): The single QSFP+ port can be configured to run either FDR InfiniBand (56Gb/s) for the lowest latency or 40/56GbE Ethernet for broad data center compatibility.
-
High-Speed Throughput: Delivers up to 56Gb/s of bandwidth, making it ideal for the most data-intensive applications.
-
RDMA Performance: Supports advanced offload engines, including RDMA over Converged Ethernet (RoCE), to reduce CPU overhead and significantly improve system efficiency.
-
Bare Card: This is a cost-effective option for users who already have a compatible mounting bracket or are using a custom chassis.
