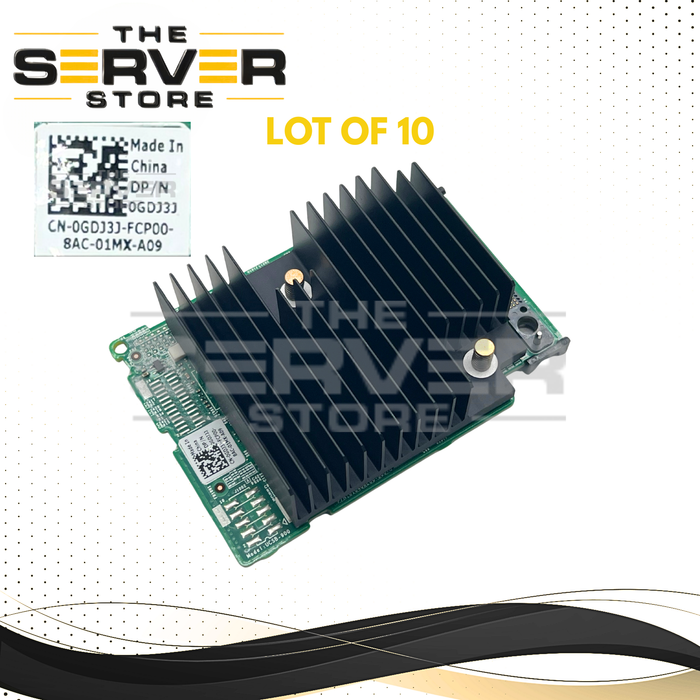

(LOT OF 10) Dell PERC H330 Mini Monolithic 12Gb/s SAS / 6Gb/s SATA RAID Controller HBA 0GDJ3J GDJ3J
Product Overview
The Dell PERC H330 Mini Monolithic RAID Controller is an enterprise-grade storage solution designed for Dell PowerEdge 13th and 14th Generation servers. Built with a Broadcom LSI SAS3008 chipset, this controller supports both hardware RAID functionality and HBA (pass-through) mode, offering flexibility for a wide range of storage environments.
Key Features
Supports hardware RAID and HBA (pass-through) mode
Designed for internal storage bays using Mini Monolithic form factor
Direct motherboard connection preserves PCIe slots
Compatible with SAS and SATA drives
Enterprise reliability for server environments
Technical Specifications
Controller Chipset: Broadcom LSI SAS3008
Host Interface: PCIe 3.0 x8
Form Factor: Mini Monolithic (Mini Mono)
Data Transfer Rates: 12Gb/s SAS, 6Gb/s SATA
Internal Ports: 8 lanes via dual mini-SAS HD connectors
Cache Memory: None (0MB, cacheless design)
Battery Backup: Not supported
RAID and Operating Modes
Hardware RAID Levels Supported: 0, 1, 5, 10, 50
HBA Mode: Supported (JBOD / pass-through)
Drive Support: SAS HDD, SAS SSD, SATA HDD, SATA SSD
Drive Formats: 512n, 512e, 4Kn
Maximum Drives: Up to 16 in RAID mode or up to 128 with SAS expanders
Server Compatibility
13th Generation PowerEdge Servers
R230, R330, R430, R530, R630, R730, R730xd, R830, R930
T130, T330, T430, T630
14th Generation PowerEdge Servers
R640, R740 (mono slot configurations)
Important Notes
This controller does not include cache memory, so RAID 5 and RAID 50 write performance may be lower compared to higher-tier controllers like the PERC H730. For improved performance in RAID 5 setups, write-back mode can be enabled, but using a UPS is strongly recommended to prevent data loss.
