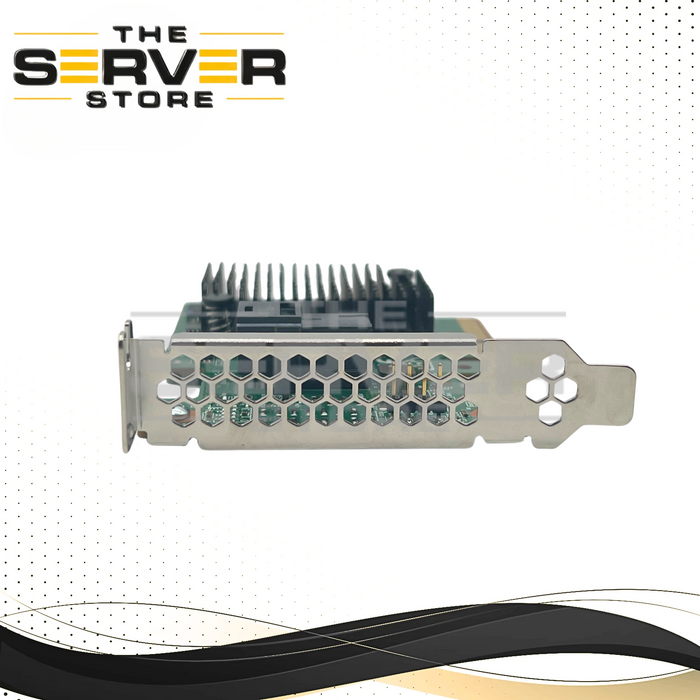

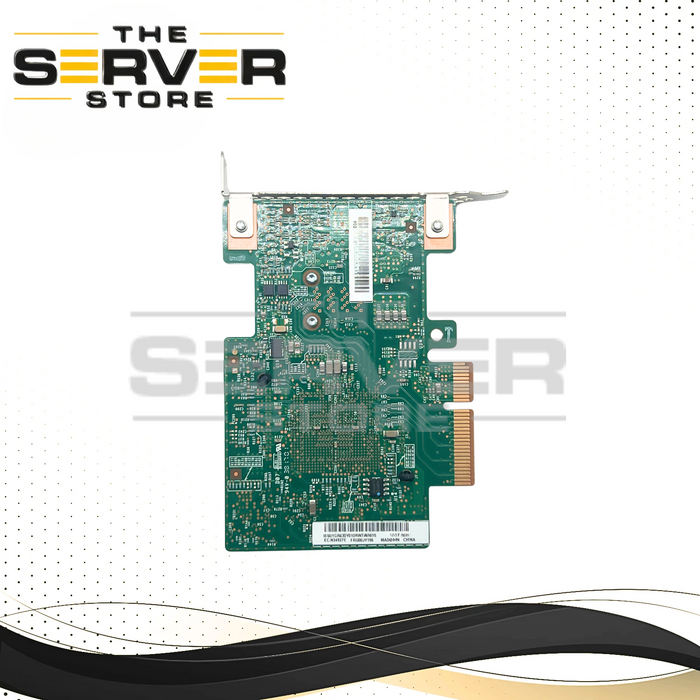

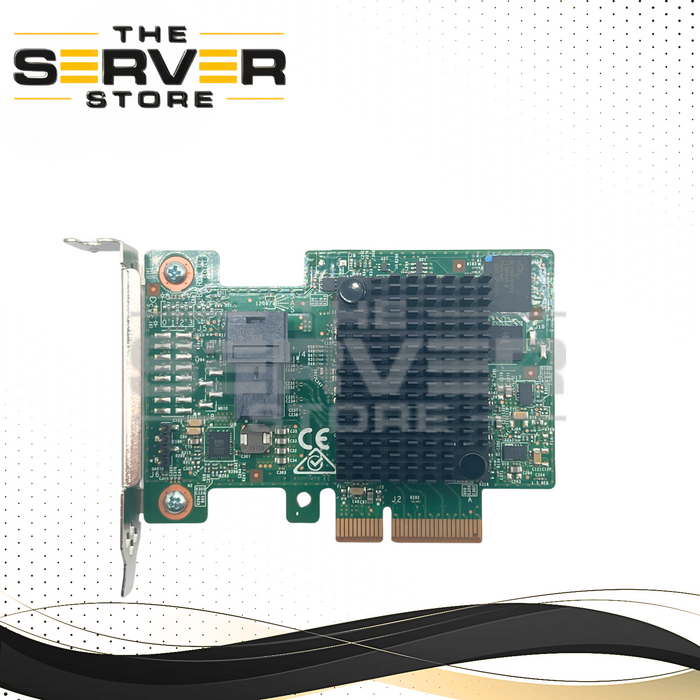

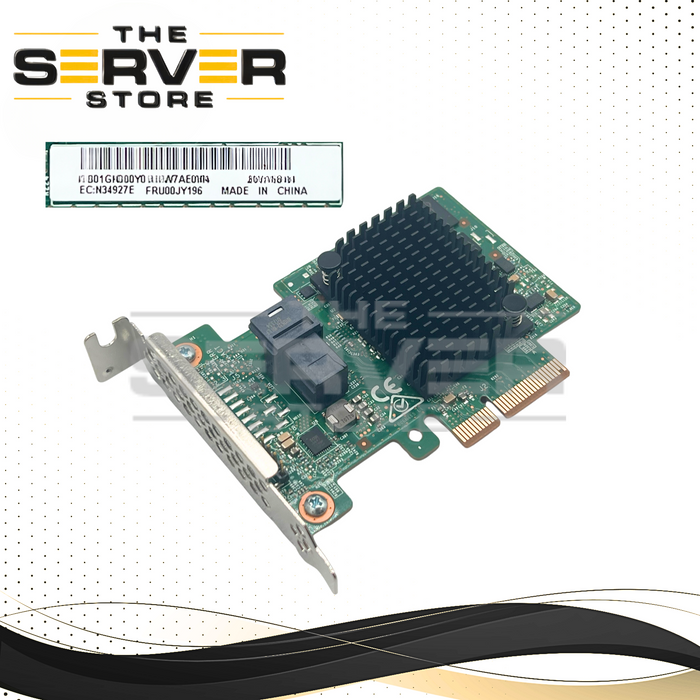

Lenovo ServeRAID M1210 12Gb/s SAS/SATA Controller Card 4-Port PCIe 3.0 x4 Internal 00JY194 00JY196
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 00JY196 / 00JY194 |
| Manufacturer | Lenovo |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID, HBA, & Storage Controllers |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo ServeRAID M1210 12Gb/s SAS/SATA Controller Card 4-Port PCIe 3.0 x4 Internal 00JY194 00JY196
The Lenovo ServeRAID M1210 is an enterprise-grade SAS/SATA storage controller designed for Lenovo System x servers and other compatible platforms. Featuring a high-performance LSI SAS controller, PCIe 3.0 x4 connectivity, and support for 12Gb/s SAS drives, this controller delivers reliable storage management for business-critical applications. With support for RAID 0, 1, and 10, as well as JBOD mode, the M1210 provides flexible storage configurations for both HDD and SSD deployments. The low-profile design makes it an ideal choice for space-constrained rackmount server environments.
Specifications
- Manufacturer: Lenovo
- Model: ServeRAID M1210
- Option Part Number: 00JY194
- FRU Part Number: 00JY196
- Controller Processor: LSI SAS3004 / SAS3008
- Host Interface: PCI Express 3.0 x4
- Data Transfer Rate: Up to 12Gb/s SAS
- SAS Support: 12Gb/s, 6Gb/s, and 3Gb/s
- SATA Support: 6Gb/s and 3Gb/s
- Internal Ports: 4
- Internal Connector: 1 x Mini-SAS HD (SFF-8643)
- RAID Support: RAID 0, RAID 1, RAID 10
- JBOD Support: Yes
- Drive Support: SAS HDD, SATA HDD, SAS SSD, SATA SSD
- Maximum Supported Devices: 4 Direct-Attached Drives
- Supports Drives Larger Than 2TB
- S.M.A.R.T. Drive Monitoring
- Form Factor: Low-Profile MD2
- Cache Memory: None (Zero Controller Cache)
Key Features
- Enterprise-class 12Gb/s SAS storage controller
- PCIe 3.0 x4 high-speed host interface
- Supports up to four internal SAS or SATA drives
- RAID 0, 1, and 10 capability for enhanced data protection
- JBOD mode for direct disk access
- Supports HDD and SSD configurations
- Low-profile design ideal for rackmount servers
- Compatible with hot-swap and simple-swap drive configurations
- Supports capacities exceeding 2TB per virtual drive
Part Number Information
- 00JY194 = Lenovo Option/Upgrade Part Number
- 00JY196 = Lenovo FRU (Field Replaceable Unit) Spare Part Number
Both part numbers refer to the same Lenovo ServeRAID M1210 controller card.
Compatibility
Commonly found in Lenovo System x server environments, including:
- Lenovo System x3250 M6
- Compatible Lenovo System x servers supporting PCIe 3.0 storage controllers
- Servers requiring 12Gb/s SAS/SATA internal storage connectivity
Ideal Applications
- Server storage expansion
- RAID array creation
- SSD performance optimization
- Database servers
- Virtualization environments
- File and application servers
- Enterprise storage management
