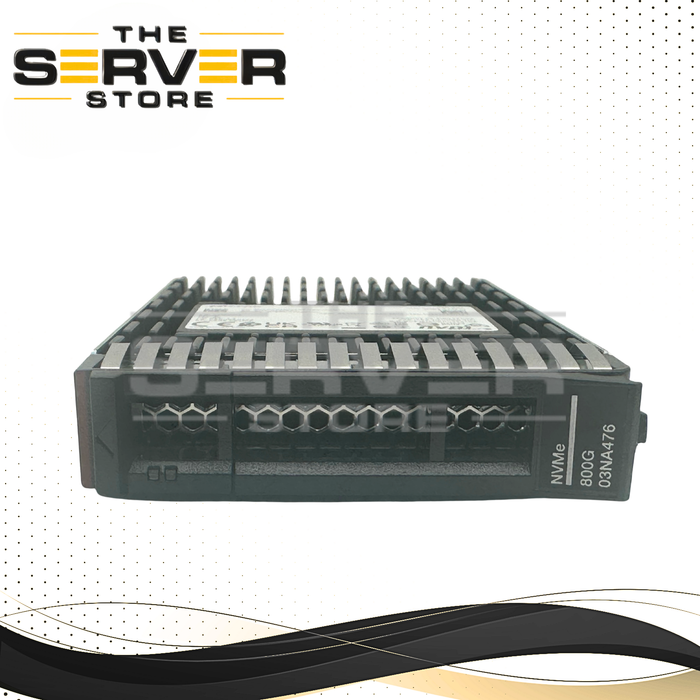

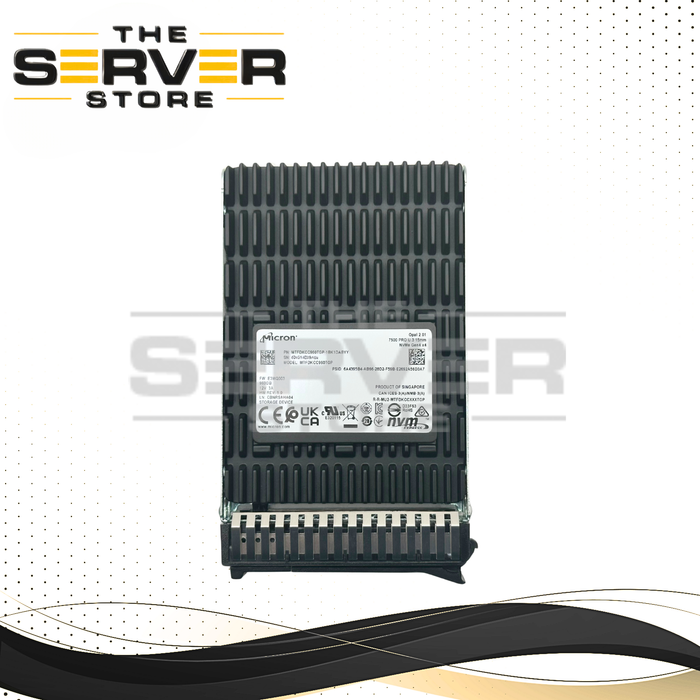

Lenovo 800GB NVME U.3 PCIe Gen 4.0 x4 MU SFF 2.5" SED SSD Micron 7500 Max Series MTFDKCC800TGQ 4XB7A95054 03NA476 (Lenovo Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 03NA476 / 4XB7A95054 |
| Manufacturer | Lenovo / Micron |
| Condition | New Open Box : 10 Power On Hours (POH) for initial testing |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | MTFDKCC800TGQ 7500 Max Series |
| Form Factor | SFF 2.5" SSD (Lenovo Tray Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo 800GB NVMe U.3 PCIe Gen 4.0 x4 MU SFF 2.5" SED SSD Micron 7500 Max Series MTFDKCC800TGQ 4XB7A95054 03NA476 (Lenovo Tray Included)
Product Overview
The Lenovo 800GB NVMe U.3 PCIe Gen 4.0 x4 Mixed Use (MU) Self-Encrypting Drive (SED) SSD is a high-performance enterprise storage solution powered by the Micron 7500 MAX Series platform. Designed and certified for Lenovo ThinkSystem and ThinkEdge servers, this SSD delivers exceptional speed, reliability, endurance, and advanced security for demanding data center workloads.
Featuring Micron 232-Layer TLC NAND, a PCIe Gen 4.0 x4 NVMe interface, and 3 DWPD endurance, this drive is optimized for virtualization, cloud computing, databases, analytics, and high-performance enterprise applications.
This listing includes a genuine Lenovo hot-swap tray/caddy for compatible ThinkSystem server installations.
Part Numbers
Lenovo Part Numbers
- 03NA476 (FRU)
- 4XB7A95054 (Option Part Number)
Micron Part Numbers
- MTFDKCC800TGQ
- MTFDKCC800TGQ-1BK1DABYY
Additional Compatible Part Number
- SSS7B86891
Series
- Micron 7500 MAX Series
Key Features
- 800GB Enterprise NVMe SSD
- PCIe Gen 4.0 x4 Interface
- U.3 Connectivity
- Backward Compatible with Supported U.2 Environments
- 2.5-Inch Small Form Factor (SFF)
- Mixed Use (MU) Endurance Profile
- Self-Encrypting Drive (SED)
- TCG Opal 2.01 Security Support
- 256-Bit AES Hardware Encryption
- Advanced Power Loss Protection (PLP)
- Enterprise Data Center Certified
- Genuine Lenovo Hot-Swap Tray Included
- Lenovo ThinkSystem Validated
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Lenovo |
| Lenovo FRU | 03NA476 |
| Lenovo Option Part Number | 4XB7A95054 |
| Micron Model | MTFDKCC800TGQ |
| Alternate Model | MTFDKCC800TGQ-1BK1DABYY |
| Additional Part Number | SSS7B86891 |
| Series | Micron 7500 MAX |
| Capacity | 800GB |
| NAND Type | Micron 232-Layer TLC NAND |
| Interface | NVMe PCIe Gen 4.0 x4 |
| Connector Type | U.3 |
| U.2 Compatibility | Supported |
| Form Factor | 2.5" SFF |
| Drive Height | 15mm |
| Workload Rating | Mixed Use (MU) |
| Endurance | 3 DWPD |
| Security | Self-Encrypting Drive (SED) |
| Encryption | 256-Bit AES |
| TCG Support | TCG Opal 2.01 |
| Power Loss Protection | Yes |
| Tray Included | Yes, Genuine Lenovo Tray |
Performance Specifications
The Micron 7500 MAX platform delivers enterprise-class performance for latency-sensitive workloads.
| Performance Metric | Rating |
|---|---|
| Sequential Read Speed | Up to 6,800 MB/s |
| Sequential Write Speed | Up to 5,900 MB/s |
| Random Read/Write (70/30) | Up to 200,000 IOPS |
| Average Read Latency | 70 µs |
| Average Write Latency | 15 µs |
Reliability, Endurance & Security
Designed for intensive data center environments, the Micron 7500 MAX Series offers:
Endurance Ratings
- 3 DWPD (Drive Writes Per Day)
- 4,380 TBW (4.38 Petabytes Written)
Enterprise Protection Features
- Advanced Power Loss Protection (PLP)
- End-to-End Data Path Protection
- Enterprise-Class Firmware
- Consistent Mixed-Use Performance
- High Reliability for 24/7 Operations
Security Features
- Self-Encrypting Drive (SED)
- TCG Opal 2.01 Compliance
- 256-Bit AES Hardware Encryption
- SPDM 1.2 Attestation Support
- Secure Data Retirement Capabilities
Compatible Lenovo Systems
Intel-Based ThinkSystem Servers
- ThinkSystem SR630 V2
- ThinkSystem SR630 V3
- ThinkSystem SR650 V2
- ThinkSystem SR650 V3
- ThinkSystem SR670 V2
- ThinkSystem SR850 V2
- ThinkSystem SR850 V3
- ThinkSystem SR860 V2
- ThinkSystem SR860 V3
AMD-Based ThinkSystem Servers
- ThinkSystem SR645
- ThinkSystem SR645 V3
- ThinkSystem SR665
- ThinkSystem SR665 V3
Tower & Edge Platforms
- ThinkSystem ST650 V2
- ThinkSystem ST650 V3
- ThinkEdge SE455 V3
Storage Infrastructure Requirements
Backplane Compatibility
This SSD requires:
- 2.5-inch U.3 NVMe Backplane
- Lenovo AnyBay Backplane
- NVMe-Capable Storage Infrastructure
The U.3 connector is backward compatible with supported U.2 environments when the server controller and backplane provide U.3/U.2 interoperability.
Controller Compatibility
- Lenovo Onboard NVMe Controllers
- Lenovo PCIe Gen4 NVMe Retimer Adapters
- Supported ThinkSystem NVMe Storage Architectures
Operating System Compatibility
Validated for enterprise deployment with:
Microsoft Windows
- Windows Server 2019
- Windows Server 2022
- Windows Server 2025
Linux
- Red Hat Enterprise Linux (RHEL 8.x / 9.x)
- SUSE Linux Enterprise Server (SLES 15)
Virtualization Platforms
- VMware ESXi 7.0
- VMware ESXi 8.0
Ideal Applications
Perfect for:
- Virtualization Environments
- VMware Deployments
- Hyper-Converged Infrastructure (HCI)
- Enterprise Databases
- Cloud Computing
- Software-Defined Storage
- Artificial Intelligence Workloads
- Analytics Platforms
- Mission-Critical Applications
Package Contents
- Lenovo 800GB NVMe U.3 PCIe Gen4 SSD
- Genuine Lenovo SFF Hot-Swap Tray/Caddy
- Lenovo Enterprise Firmware
Alternate Part Numbers
03NA476
4XB7A95054
MTFDKCC800TGQ
MTFDKCC800TGQ-1BK1DABYY
SSS7B86891
The Lenovo 800GB Micron 7500 MAX NVMe SSD combines enterprise-grade performance, strong endurance, advanced security, and Lenovo-certified compatibility, making it an ideal storage solution for modern ThinkSystem and ThinkEdge server infrastructures.
