Lenovo 480GB SATA 6G SFF 2.5" SSD PM863 Series 00LF232
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

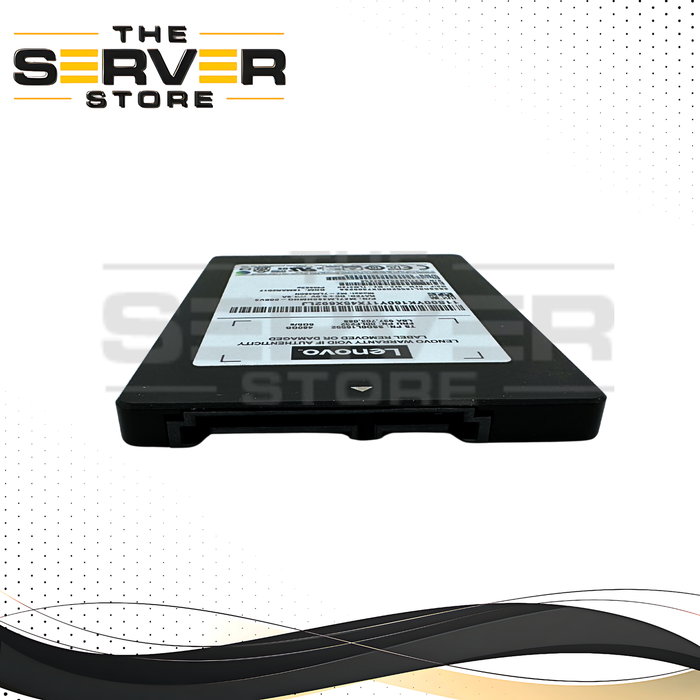

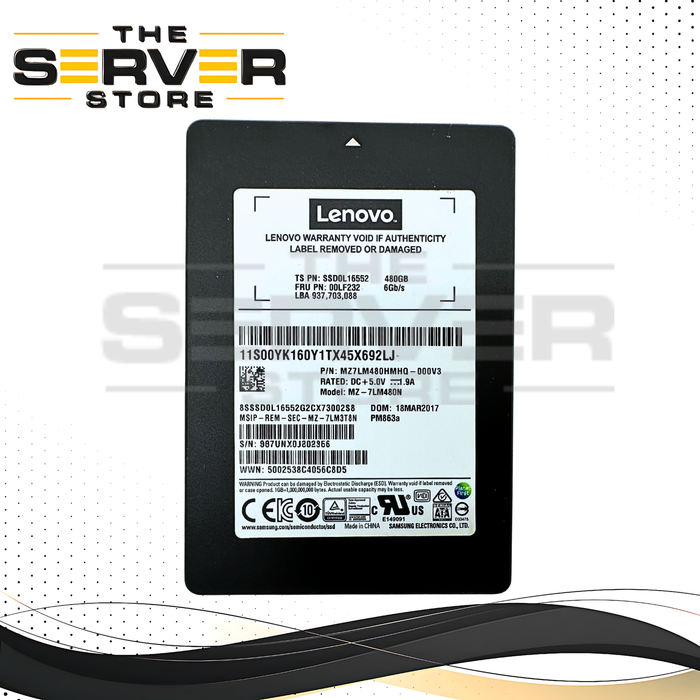

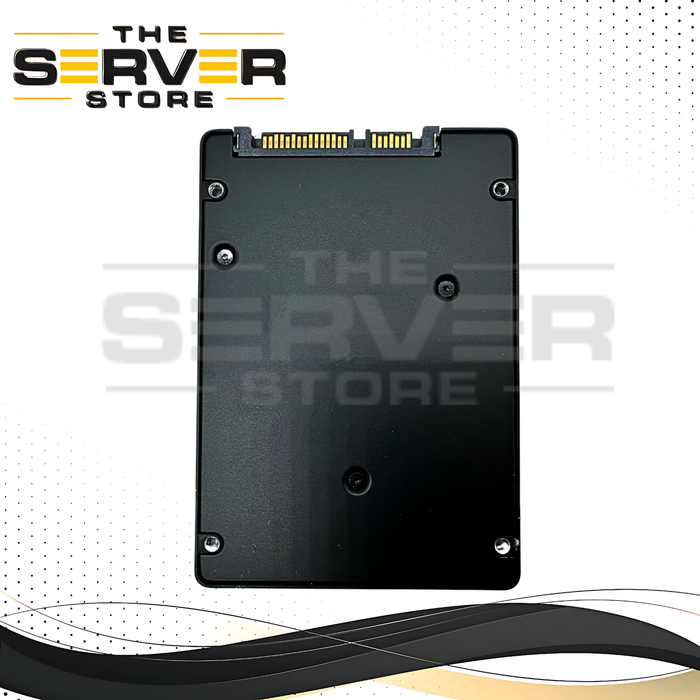

Lenovo 480GB SATA 6G 2.5" SFF Enterprise SSD – Samsung PM863 Series (00LF232)
Designed for dependable enterprise performance, the Lenovo 00LF232 480GB SSD is powered by the proven Samsung PM863 Enterprise Series and optimized for read-intensive server workloads. Built with Samsung's advanced 32-Layer V-NAND TLC technology, this drive delivers consistent performance, enhanced reliability, and enterprise-grade data protection for business-critical applications.
Featuring a SATA III 6Gb/s interface and a standard 2.5-inch Small Form Factor (SFF) design, the PM863 is an ideal storage solution for Lenovo ThinkServer and System x environments, offering fast access to data while maintaining the endurance and stability required in 24/7 operations.
Key Features
- 480GB Enterprise-Class Storage Capacity
- Lenovo OEM Part Number: 00LF232
- Samsung PM863 Enterprise SSD Technology
- 2.5-inch Small Form Factor (SFF) with 7mm height
- SATA III 6Gb/s Interface
- 32-Layer Samsung V-NAND TLC Flash Memory
- Read-Intensive (RI) Enterprise Workload Design
- Power-Loss Protection with onboard tantalum capacitors
- 256-Bit AES Hardware Encryption
- End-to-End Data Protection and advanced ECC technology
- Dynamic Thermal Guard for temperature management
- Hot-Swap Support in compatible Lenovo systems
Performance Specifications
- Sequential Read Speed: Up to 525 MB/s
- Sequential Write Speed: Up to 480 MB/s
- Random Read Performance (4KB): Up to 97,000 IOPS
- Random Write Performance (4KB): Up to 16,000 IOPS
- Consistent steady-state performance for enterprise applications
Enterprise Reliability & Security
- Power-Loss Protection (PLP) safeguards in-flight data during unexpected outages
- 256-Bit AES Hardware Encryption helps secure sensitive business data
- End-to-End Data Protection reduces risk of data corruption
- Advanced ECC Engine improves data integrity and reliability
- Dynamic Thermal Guard Protection helps prevent overheating
- 2,000,000-Hour MTBF enterprise reliability rating
- Engineered for continuous 24/7 operation
Technical Specifications
- Brand: Lenovo
- Part Number: 00LF232
- Original Manufacturer: Samsung
- Series: PM863 Enterprise SSD
- Capacity: 480GB
- Form Factor: 2.5-inch SFF (7mm)
- Interface: SATA III 6Gb/s
- NAND Type: 32-Layer Samsung V-NAND TLC
- Drive Class: Enterprise Entry / Read-Intensive
- Encryption: AES 256-Bit Hardware Encryption
- MTBF: 2,000,000 Hours
Ideal Applications
- Lenovo ThinkServer & System x Platforms
- Server Boot Drives
- Virtualization Environments
- Web Hosting Servers
- Read-Heavy Databases
- Business Application Servers
- Cloud Infrastructure
- Enterprise Storage Systems
Compatibility Notice
This SSD utilizes a standard 2.5-inch SATA Small Form Factor (SFF) design and is intended for compatible Lenovo server and storage environments. Hot-swap functionality is supported when installed in approved Lenovo drive bays and storage configurations.
Combining Samsung enterprise SSD technology with Lenovo-certified compatibility, the 00LF232 PM863 Series SSD delivers the reliability, security, and performance required for data centers, business servers, and mission-critical workloads.
