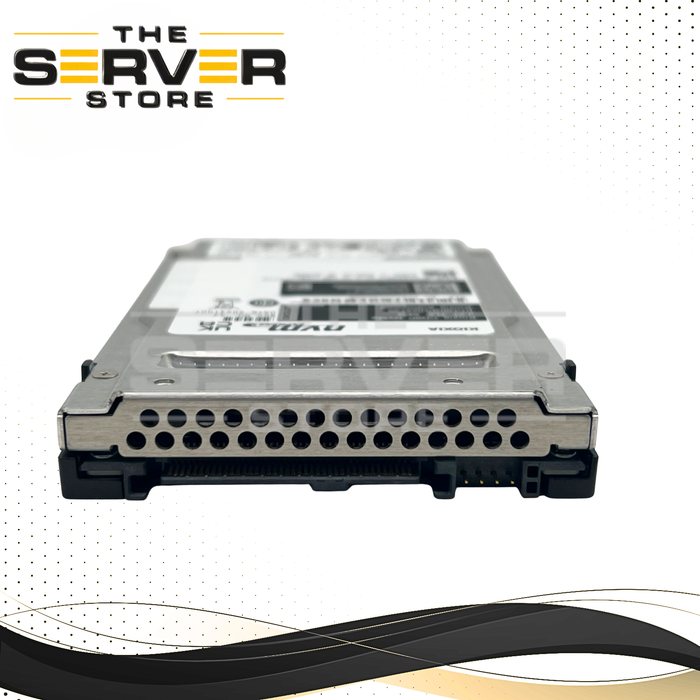

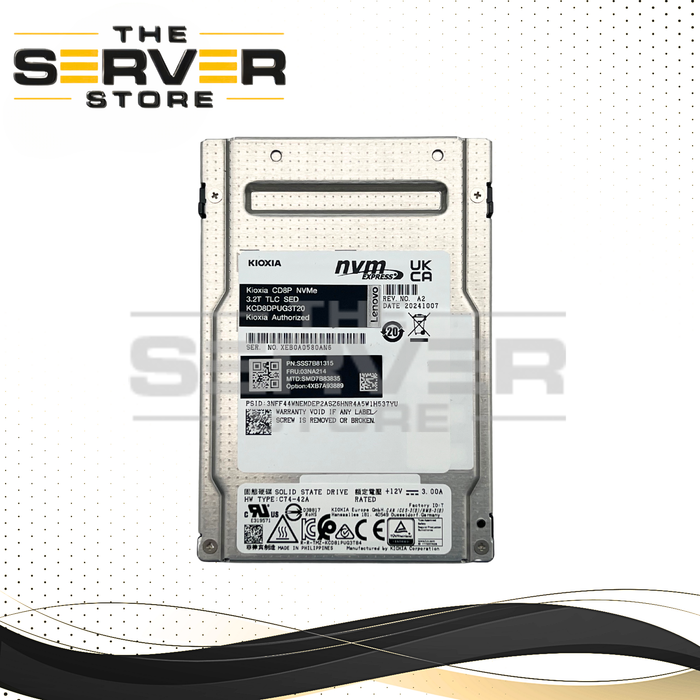

Lenovo 3.2TB NVMe U.3 PCIe Gen 5.0 x4 SFF 2.5" SED SSD Kioxia CD8P-V Series KCD8DPUG3T20 4XB7A93889 03NA214 (Tray Not Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 03NA214 / 4XB7A93889 |
| Manufacturer | Lenovo / Kioxia |
| Condition | New Open Box: 10 Power On Hours (POH) for initial testing |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | KCD8DPUG3T20 CD8P-V Series |
| Form Factor | SFF 2.5" SSD (Tray Not Included). |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo 3.2TB NVMe U.3 G5 MU 2.5" SED SSD CD8P-V KCD8DPUG3T20 4XB7A93889 03NA214 (Tray Not Included)
Product Overview
The Lenovo 3.2TB NVMe U.3 G5 Mixed Use (MU) Self-Encrypting Drive (SED) SSD is a high-performance enterprise-class storage solution designed for Lenovo ThinkSystem and ThinkEdge servers. Built on the KIOXIA CD8P Series platform, this SSD delivers exceptional performance, reliability, and security for data center, virtualization, database, and mixed-workload environments.
Featuring a PCIe Gen5 x4 NVMe interface, hot-swap capability, and Self-Encrypting Drive (SED) technology, this drive is ideal for organizations requiring low latency, high throughput, and enhanced data protection.
Note: Tray/Caddy is not included.
Part Numbers
Manufacturer Part Numbers
- 03NA214
- 4XB7A93889
- KCD8DPUG3T20
- XEB0A02B0AN6
Series
- KIOXIA CD8P Series
Key Features
- 3.2TB Enterprise NVMe SSD
- PCIe Gen5 x4 Interface
- U.3 2.5-Inch Form Factor
- Mixed Use (MU) Workload Rating
- Hot-Swap (HS) Support
- Self-Encrypting Drive (SED)
- Enterprise Data Center Performance
- Lenovo ThinkSystem Certified
- Built on KIOXIA CD8P Technology
- Optimized for Virtualization, Cloud, and Database Applications
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Lenovo |
| FRU / Part Number | 03NA214 |
| Option Part Number | 4XB7A93889 |
| Model | KCD8DPUG3T20 |
| Capacity | 3.2TB |
| Drive Type | Solid State Drive (SSD) |
| Interface | NVMe PCIe Gen5 x4 |
| Form Factor | 2.5" U.3 |
| Workload Type | Mixed Use (MU) |
| Hot Swap | Yes |
| Security | Self-Encrypting Drive (SED) |
| Endurance | 3 DWPD |
| Total Bytes Written (TBW) | 17,520 TB |
| Series | KIOXIA CD8P |
| Enterprise Grade | Yes |
Performance & Reliability
Designed for modern enterprise environments, the Lenovo CD8P-based SSD provides:
- Ultra-low latency NVMe performance
- High IOPS for transactional workloads
- Optimized mixed-use endurance
- Enhanced reliability for 24/7 operation
- PCIe Gen5 bandwidth for next-generation servers
- Enterprise-grade data protection and encryption
Compatible Lenovo Servers
ThinkEdge Systems
- Lenovo ThinkEdge SE455 V3 (Machine Type 7DBY)
ThinkSystem Rack & Tower Servers
- Lenovo ThinkSystem SR630 V2 (7Z70, 7Z71)
- Lenovo ThinkSystem SR650 V2 (7Z72, 7Z73)
- Lenovo ThinkSystem SR630 V3
- Lenovo ThinkSystem SR650 V3
- Lenovo ThinkSystem ST650 V3
Required Infrastructure
To achieve full PCIe Gen5 performance, Lenovo recommends:
Retimer Adapter
- ThinkSystem PCIe Gen5 NVMe Retimer Adapter
- Part Number: 4TA7A84579
Backplane Requirements
- Compatible 2.5-inch NVMe U.2/U.3 hot-swap backplane
- NVMe-enabled server configuration
Operating System Compatibility
Validated for deployment with:
- Microsoft Windows Server 2019
- Microsoft Windows Server 2022
- Microsoft Windows Server 2025
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
Applications
Ideal for:
- Virtualization Platforms
- Cloud Infrastructure
- Enterprise Databases
- Analytics Workloads
- Software-Defined Storage
- Hyper-Converged Infrastructure (HCI)
- High-Performance Computing (HPC)
- Mission-Critical Business Applications
Package Contents
- Lenovo 3.2TB NVMe U.3 PCIe Gen5 Mixed Use SED SSD
- Tray/Caddy Not Included
Alternate Part Numbers
03NA214, 4XB7A93889, KCD8DPUG3T20, XEB0A02B0AN6
This genuine Lenovo enterprise SSD provides a secure, high-endurance, and high-performance storage solution engineered for Lenovo ThinkSystem and ThinkEdge server environments.
