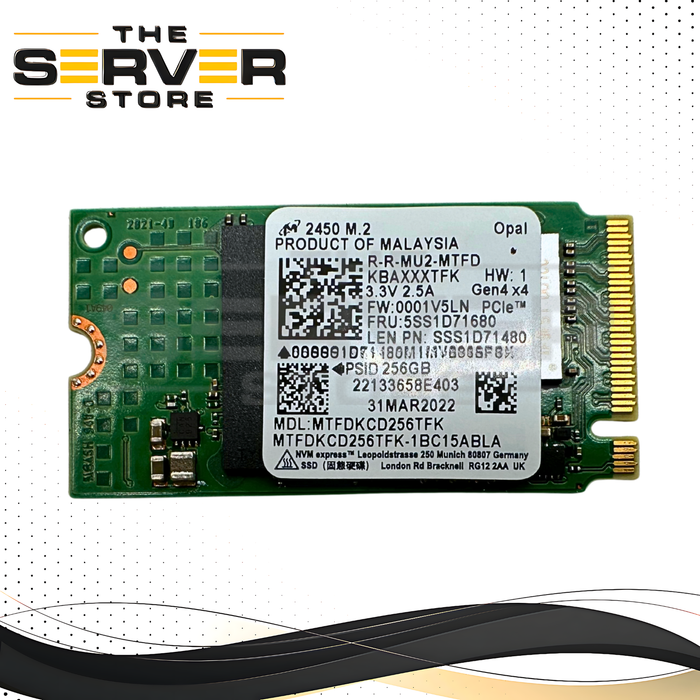

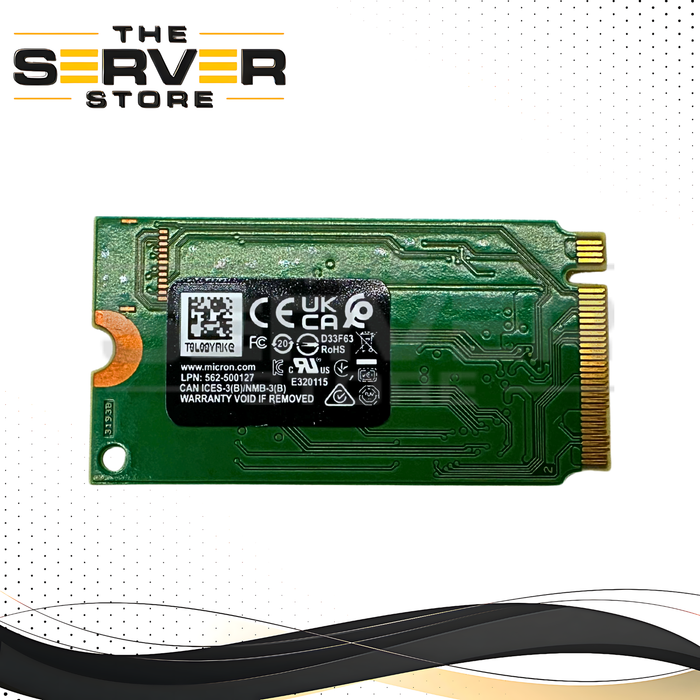

Lenovo 256GB NVMe 2242 M.2 PCIe G4 x4 OPAL SSD Micron Series 5SS1D71680
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 5SS1D71680 |
| Manufacturer | Lenovo |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Micron Series |
| Form Factor | M.2 2242 |
| Interface | PCIe Gen 4.0 x4 |
| External Interfaces | |
| Storage Capacity | 256GB |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo 256GB NVMe 2242 M.2 PCIe G4 x4 OPAL SSD Micron Series 5SS1D71680
Boost your system's speed, efficiency, and data security with the Lenovo 256GB NVMe 2242 M.2 PCIe G4 x4 OPAL SSD Micron Series 5SS1D71680. Designed for modern Lenovo laptops and mobile computing platforms, this compact OEM solid-state drive combines the power of PCIe Gen 4.0 x4, advanced Micron 176-layer 3D TLC NAND, and enterprise-grade security features to deliver exceptional responsiveness for everyday business and professional workloads.
Built around Micron's proven SSD architecture, the 5SS1D71680 offers fast application loading, rapid file transfers, and smooth multitasking performance. The compact M.2 2242 form factor makes it an ideal storage solution for ultrabooks, business laptops, and compact systems where space efficiency is essential. Leveraging the NVMe 1.4 protocol, this drive significantly outperforms traditional SATA SSDs while maintaining excellent power efficiency.
Engineered with a DRAM-less design and Host Memory Buffer (HMB) technology, the drive delivers reliable performance while reducing power consumption. Advanced security features including AES 256-bit hardware encryption, TCG Opal 2.01, and TCG Pyrite compliance help safeguard sensitive data, making it an excellent choice for corporate and security-focused environments.
With sequential read speeds reaching up to 3,500 MB/s and endurance rated for 180 TBW, the Lenovo Micron SSD provides a balance of speed, reliability, and long-term durability for demanding applications.
Key Features
✔ Lenovo OEM Micron SSD
✔ Lenovo Part Number: 5SS1D71680
✔ 256GB Storage Capacity
✔ M.2 2242 Form Factor (22mm x 42mm)
✔ PCIe Gen 4.0 x4 Interface
✔ NVMe 1.4 Protocol Support
✔ Micron 176-Layer 3D TLC NAND Technology
✔ Host Memory Buffer (HMB) Architecture
✔ Sequential Read Speeds Up to 3,500 MB/s
✔ Sequential Write Speeds Up to 1,600 MB/s
✔ Random Read Performance Up to 190,000 IOPS
✔ Random Write Performance Up to 400,000 IOPS
✔ AES 256-Bit Hardware Encryption
✔ TCG Opal 2.01 & TCG Pyrite Compliant
✔ Low Power Consumption for Mobile Devices
Technical Specifications
- Brand: Lenovo / Micron
- Part Number: 5SS1D71680
- Micron Model: MTFDKCD256TFK
- Capacity: 256GB
- Form Factor: M.2 2242
- Interface: PCIe Gen 4.0 x4
- Protocol: NVMe 1.4
- NAND Type: 176-Layer 3D TLC NAND
- Architecture: DRAM-less with HMB Support
- Sequential Read Speed: Up to 3,500 MB/s
- Sequential Write Speed: Up to 1,600 MB/s
- Random Read: Up to 190,000 IOPS
- Random Write: Up to 400,000 IOPS
- Read Latency: 50µs Typical
- Write Latency: 12µs Typical
- Endurance Rating: 180 TBW
- MTTF: 2,000,000 Hours
- Encryption: AES 256-Bit
- Security Standards: TCG Opal 2.01 / TCG Pyrite
- Operating Voltage: 3.3V ±5%
Reliability & Security
The Lenovo 256GB NVMe 2242 M.2 PCIe G4 x4 OPAL SSD Micron Series 5SS1D71680 is built for dependable operation in professional environments. Advanced error management, enterprise-class security protocols, and a robust endurance rating help protect your data while ensuring consistent long-term performance. Compatibility with Intel Modern Standby and Project Athena requirements further enhances efficiency for today's mobile platforms.
Whether you're upgrading an existing Lenovo laptop, replacing a failed SSD, or improving system performance, the Lenovo 256GB NVMe 2242 M.2 PCIe G4 x4 OPAL SSD Micron Series 5SS1D71680 delivers fast storage, strong security, and dependable reliability in a compact M.2 2242 design.
