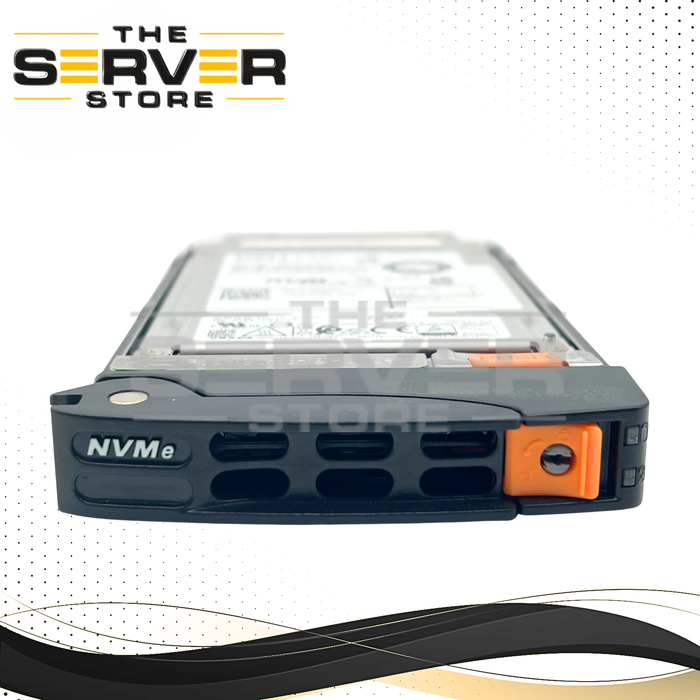

Kioxia 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD CM6-R Series KCM6XRUL3T84 for Supermicro Server (Supermicro Tray Included)

Kioxia 3.84TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" SSD CM6-R Series KCM6XRUL3T84 for Supermicro Server (Supermicro Tray Included)

Enterprise PCIe Gen4 NVMe SSD for Supermicro Servers

Enhance your Supermicro server performance with the Kioxia 3.84TB CM6-R Series NVMe SSD. Designed for enterprise data centers and cloud environments, this high-performance solid-state drive delivers exceptional speed, reliability, and efficiency for read-intensive workloads. Powered by PCIe Gen 4.0 technology and advanced 96-Layer BiCS FLASH™ 3D TLC NAND, the CM6-R Series provides the performance required for modern business-critical applications.

Featuring NVMe 1.4 architecture and a U.3 (SFF-8639) interface, the KCM6XRUL3T84 offers outstanding throughput for virtualization, software-defined storage, cloud computing, analytics, content delivery networks, database servers, and enterprise storage environments. With sequential read speeds up to 6,200 MB/s and random read performance up to 1,000,000 IOPS, this SSD helps reduce latency and accelerate access to critical data.

Built for 24/7 enterprise operation, the CM6-R Series includes dual-port architecture, power-loss protection, end-to-end data protection, hot-swap support, and Sanitize Instant Erase (SIE) functionality. With a 1 DWPD endurance rating and 2.5 million hour MTTF, this drive delivers dependable long-term performance for demanding data center workloads.

Note: Supermicro Tray Included.

Key Features

• 3.84TB Enterprise NVMe SSD
• Kioxia CM6-R Enterprise Read Intensive Series
• Model: KCM6XRUL3T84
• PCIe Gen 4.0 x4 Interface
• NVMe 1.4 Compliant
• U.3 (SFF-8639) Connector
• 2.5-inch Small Form Factor (SFF)
• 15mm Z-Height
• 96-Layer BiCS FLASH™ 3D TLC NAND
• 1 DWPD Endurance Rating
• Dual-Port Enterprise Architecture
• Power Loss Protection (PLP)
• Sanitize Instant Erase (SIE)
• Hot-Swap Support
• Supermicro Tray Included

Technical Specifications

• Manufacturer: Kioxia
• Condition: Reconditioned
• Model: KCM6XRUL3T84
• Series: CM6-R
• Storage Capacity: 3.84TB
• Form Factor: 2.5-inch SFF
• Drive Height: 15mm
• Interface: PCIe Gen 4.0 x4
• Protocol: NVMe 1.4
• Connector: U.3 (SFF-8639)
• Workload Type: Read Intensive (RI)
• Endurance: 1 DWPD
• Flash Type: 96-Layer BiCS FLASH™ 3D TLC NAND
• Sequential Read Speed: Up to 6,200 MB/s
• Sequential Write Speed: Up to 2,350 MB/s
• Random Read (4K): Up to 1,000,000 IOPS
• Random Write (4K): Up to 250,000 IOPS
• MTTF: 2,500,000 Hours
• UBER: 1 Sector per 10¹⁷ Bits Read
• Power Loss Protection: Supported
• Sanitize Instant Erase (SIE): Supported
• Dual-Port Support: Supported
• Hot-Swap: Supported
• Maximum Power Consumption: Up to 25W
• Typical Active Power: 19W
• Typical Idle Power: 5W
• Width: 69.85 mm
• Length: 100.45 mm
• Maximum Weight: 130g

Compatible Supermicro Platforms

• Supermicro Ultra Servers
• Supermicro Hyper Servers
• Supermicro CloudDC Systems
• Supermicro BigTwin Servers
• Supermicro TwinPro Systems
• Supermicro GPU Servers
• Supermicro Storage Servers
• Supermicro NVMe Storage Platforms
• Systems Supporting U.3 NVMe Drives
• Compatible with Supermicro Tray Included

Ideal Applications

• Cloud Computing Infrastructure
• Virtualization Platforms
• Software-Defined Storage (SDS)
• Enterprise Databases
• Business-Critical Applications
• Big Data Analytics
• Content Delivery Networks (CDN)
• Data Center Storage Arrays
• High-Performance Computing (HPC)
• Read-Optimized Enterprise Workloads
• Hyper-Converged Infrastructure (HCI)
• Private and Hybrid Cloud Deployments
