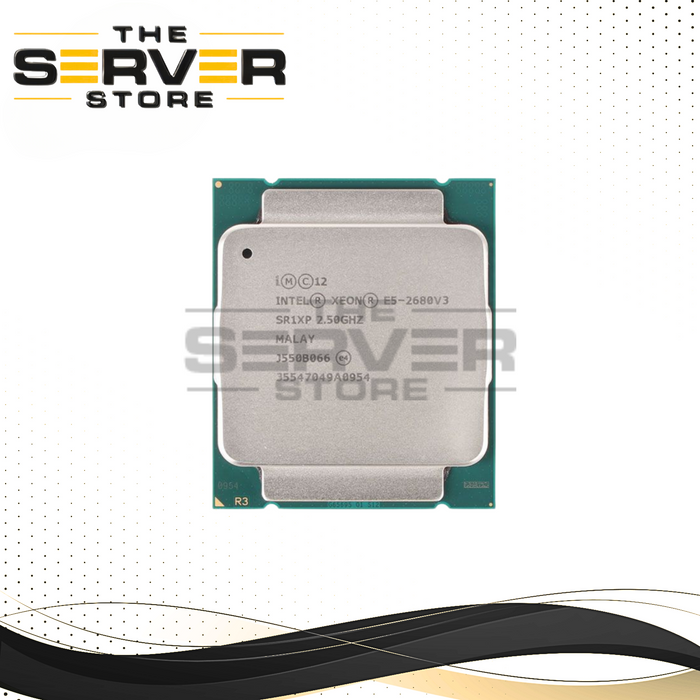

Intel Xeon E5-2680 v3 2.50GHz 12-Core 30MB 120W FCLGA2011-3 Server Processor CM8064401439612 SR1XP
Product Overview
The Intel Xeon E5-2680 v3 is a high-performance enterprise server processor based on Intel's Haswell-EP architecture, designed for virtualization, cloud computing, database management, software-defined storage, and high-performance enterprise workloads. Featuring 12 cores, 24 threads, a 2.50GHz base clock speed, and 30MB Intel Smart Cache, the E5-2680 v3 delivers excellent multi-threaded performance and scalability for demanding server environments.
Built for the FCLGA2011-3 (Socket R3) platform, this processor supports DDR4 ECC memory, Intel Hyper-Threading Technology, Intel Turbo Boost Technology 2.0, and up to 40 PCIe 3.0 lanes, making it ideal for enterprise servers and workstation deployments.
Key Features
- Intel Xeon E5-2680 v3 Server Processor
- Intel Ordering Code: CM8064401439612
- Intel Spec Code: SR1XP
- Haswell-EP Architecture
- 12 Cores / 24 Threads
- Base Clock Speed: 2.50GHz
- Max Turbo Frequency: 3.30GHz
- 30MB Intel Smart Cache
- 120W TDP
- FCLGA2011-3 Socket
- DDR4-2133 ECC Memory Support
- Quad-Channel Memory Architecture
- Up to 40 PCIe 3.0 Lanes
- Intel Hyper-Threading Technology
- Intel Turbo Boost Technology 2.0
- Intel VT-x and VT-d Virtualization Support
- Intel AES-NI Security Acceleration
- Supports Dual-Processor (2S) Configurations
- Optimized for Enterprise Servers and Workstations
Technical Specifications
General Specifications
- Manufacturer: Intel
- Product Family: Xeon E5-2600 v3 Series
- Model: E5-2680 v3
- Ordering Code: CM8064401439612
- S-Spec Number: SR1XP
- Architecture: Haswell-EP
- Launch Date: Q3 2014
- Manufacturing Process: 22nm
- Processor Type: Server / Workstation CPU
Processor Specifications
- Core Count: 12 Cores
- Thread Count: 24 Threads
- Base Frequency: 2.50GHz
- Max Turbo Frequency: 3.30GHz
- Intel Smart Cache: 30MB
- TDP: 120W
- Socket Type: FCLGA2011-3
- QPI Speed: 9.6 GT/s
Memory Specifications
- Memory Type: DDR4 ECC Registered / Load Reduced
- Maximum Memory Speed: DDR4-2133
- Memory Channels: 4 (Quad Channel)
- ECC Memory Support: Yes
- Maximum Memory Capacity: Up to 768GB
- Maximum Memory Bandwidth: 68 GB/s
Expansion & Virtualization
- PCIe Version: PCIe 3.0
- PCIe Lanes: 40
- Intel Hyper-Threading Technology: Yes
- Intel Turbo Boost Technology 2.0: Yes
- Intel VT-x: Yes
- Intel VT-d: Yes
- Intel AES-NI: Yes
- Intel Trusted Execution Technology: Yes
- Intel 64 Architecture: Yes
Compatible Dell PowerEdge Servers
Compatible With: Dell PowerEdge R430, R530, R630, R730, R730XD, R830, R930, T430, T630, FC430, FC630, FC830, M630, C4130, C6320, and other Dell PowerEdge 13th Generation servers supporting Intel Xeon E5-2600 v3 processors.
Compatible HPE ProLiant Servers
Compatible With: HPE ProLiant DL160 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, DL580 Gen9, ML350 Gen9, BL460c Gen9, and other HPE ProLiant servers supporting Intel Xeon E5-2600 v3 processors.
Compatible Lenovo Servers
Compatible With: Lenovo System x3550 M5, x3650 M5, x3850 X6, x3950 X6, ThinkServer RD550, ThinkServer RD650, and other Lenovo systems supporting Intel Xeon E5-2600 v3 Series processors.
Compatible Cisco UCS Servers
Compatible With: Cisco UCS C220 M4, C240 M4, C3160, B200 M4, B420 M4, C460 M4, and other Cisco UCS platforms supporting Intel Xeon E5-2600 v3 Series processors.
Compatible Supermicro Servers
Compatible With: Supermicro SYS-1028 Series, SYS-2028 Series, SYS-6028 Series, SuperServer Ultra, TwinPro, FatTwin, BigTwin, MicroCloud, and other Supermicro systems utilizing Intel C612 chipset motherboards with FCLGA2011-3 socket support.
Ideal Applications
- Virtualization Platforms
- VMware vSphere
- Microsoft Hyper-V
- Cloud Computing
- Database Servers
- Software Defined Storage (SDS)
- High-Performance Computing (HPC)
- Enterprise Web Hosting
- Data Analytics
- AI Development Environments
- Backup & Recovery Solutions
- ERP Applications
- Business-Critical Workloads
Alternate Part Numbers
- E5-2680V3
- E5-2680 v3
- CM8064401439612
- SR1XP
- BX80644E52680V3
Package Contents
- Intel Xeon E5-2680 v3 Processor
- SR1XP FCLGA2011-3 CPU
Important Notes
- Requires an FCLGA2011-3 (Socket R3) motherboard.
- Compatible with systems supporting Intel Xeon E5-2600 v3 Series processors.
- Supports DDR4 ECC Registered and Load-Reduced memory.
- Supports single and dual-socket server configurations.
- No integrated graphics controller.
- BIOS updates may be required for processor support on certain systems.
The Intel Xeon E5-2680 v3 SR1XP delivers an excellent combination of core density, memory bandwidth, and enterprise reliability, making it an ideal choice for virtualization hosts, cloud infrastructure, database servers, storage platforms, and other demanding business-critical workloads.
