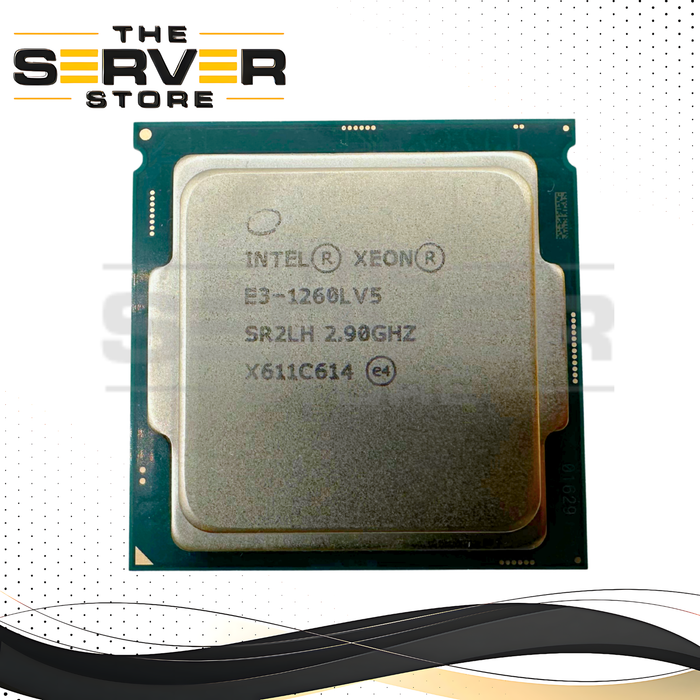

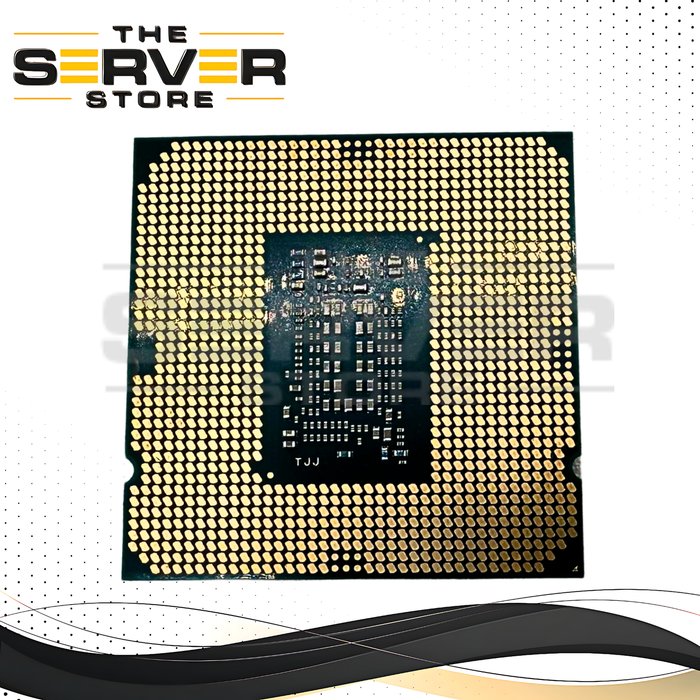

Intel Xeon E3-1260Lv5 2.90GHz 8MB 45W FCLGA1151 CPU CM8066201921903 SR2LH
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | CM8066201921903 |
| Manufacturer | Intel |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Processors |
| Model | Intel Xeon E3-1200 v5 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | Intel Xeon E3-1260L v5 |
| Clock Speed | |
| Number of Cores | 4 |
| Cache | 8MB |
| Socket Type | LGA 1151 (FCLGA1151) |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel Xeon E3-1260L v5 2.90GHz Quad-Core Low-Power Server Processor (CM8066201921903 / SR2LH)
The Intel Xeon E3-1260L v5 is a power-efficient server and workstation processor engineered for environments where performance, reliability, and energy efficiency are equally important. Built on Intel's proven Skylake architecture, this low-power Xeon delivers enterprise-class features including ECC memory support, Intel Hyper-Threading Technology, advanced virtualization capabilities, and integrated professional graphics.
With 4 cores, 8 threads, a 2.90GHz base frequency, and turbo speeds up to 3.90GHz, the E3-1260L v5 is ideal for compact servers, virtualization appliances, business workstations, edge computing deployments, and low-power infrastructure applications where thermal efficiency is a priority.
Key Features
- Intel Xeon E3-1260L v5 Processor
- 4 Cores / 8 Threads with Intel Hyper-Threading Technology
- 2.90GHz Base Clock Speed
- Up to 3.90GHz Turbo Boost Technology 2.0
- 8MB Intel Smart Cache
- 45W Low-Power Thermal Design
- ECC Memory Support
- Intel HD Graphics P530 Integrated Graphics
- Optimized for energy-efficient server deployments
- Designed for professional workstation and business infrastructure environments
Processor Specifications
- Processor Family: Intel Xeon E3-1200 v5 Series
- Model: Xeon E3-1260L v5
- Ordering Code: CM8066201921903
- S-Spec: SR2LH
- Architecture: Skylake
- Manufacturing Process: 14nm
- Cores: 4
- Threads: 8
- Base Frequency: 2.90GHz
- Maximum Turbo Frequency: 3.90GHz
- Cache: 8MB Intel Smart Cache
- Bus Speed: 8 GT/s DMI3
- TDP: 45W
Memory Support
- Maximum Memory Capacity: 64GB
- Supported Memory Types: DDR4-2133 and DDR3L-1333/1600
- Memory Channels: Dual-Channel
- Maximum Memory Bandwidth: 34.1 GB/s
- ECC Memory Support: Yes
- Improved data integrity for business-critical applications
Integrated Graphics
- Intel HD Graphics P530
- Graphics Base Frequency: 350 MHz
- Maximum Dynamic Frequency: 1.05 GHz
- 4K Display Support
- Supports up to 3 Independent Displays
- Maximum DisplayPort Resolution: 4096 x 2304 @ 60Hz
- Maximum HDMI Resolution: 4096 x 2304 @ 24Hz
Expansion & Platform Compatibility
- Socket: FCLGA1151 (Socket H4)
- Compatible Chipsets: Intel C232 and Intel C236
- PCI Express Revision: PCIe 3.0
- Maximum PCIe Lanes: 16
- Supports 1x16, 2x8, or 1x8 + 2x4 PCIe configurations
- Single-Socket (1S) Server Platform Support
Advanced Security & Virtualization Technologies
- Intel vPro® Technology Eligible
- Intel Software Guard Extensions (SGX)
- Intel AES-NI Hardware Encryption
- Intel Secure Key Technology
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Intel VT-x Virtualization Technology
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
Ideal Applications
- Low-Power Business Servers
- Virtualization Appliances
- Edge Computing Platforms
- Network Attached Storage (NAS)
- Remote Office Infrastructure
- Professional Workstations
- Compact Server Deployments
- 24/7 Business Environments
Compatibility Notice
Important: The Intel Xeon E3-1260L v5 requires an Intel C232 or C236 workstation/server motherboard. Although it uses the FCLGA1151 socket, it is not compatible with standard consumer Intel chipsets such as H110, B150, H170, or Z170.
Why Choose the Intel Xeon E3-1260L v5?
The Intel Xeon E3-1260L v5 delivers the ideal balance of enterprise reliability and energy-efficient performance. With ECC memory support, integrated professional graphics, advanced security technologies, and a low 45W power envelope, it is an outstanding choice for organizations seeking dependable computing performance in power-conscious server and workstation deployments.
