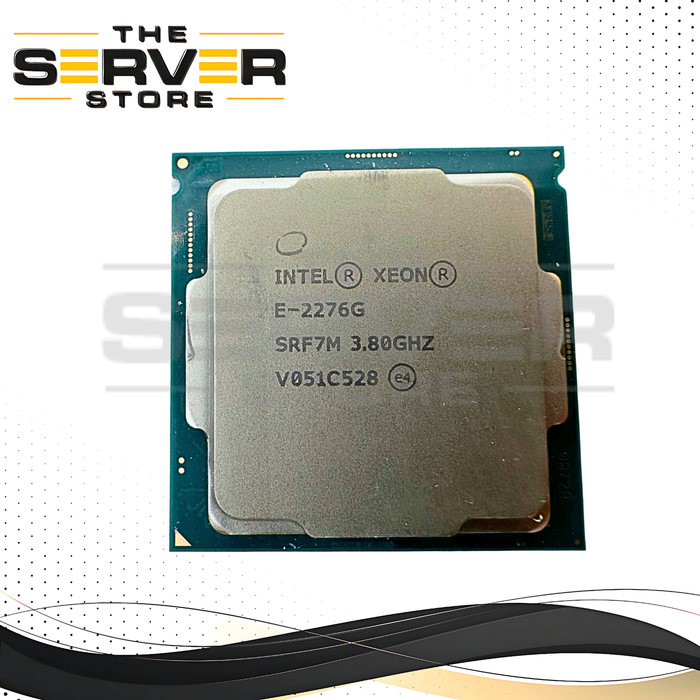

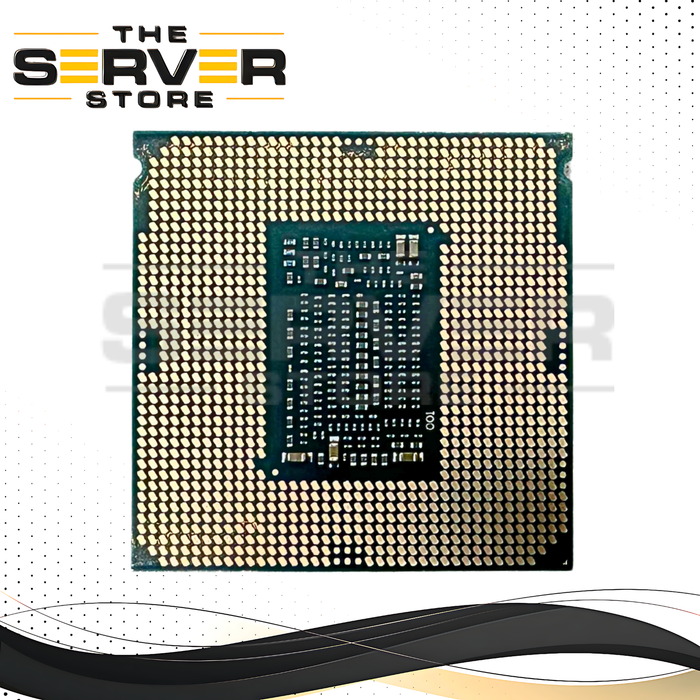

Intel Xeon E-2276G 3.80GHz 6 Core 12MB FCLGA1151 CPU CM8068404227703 SRF7M

Intel Xeon E-2276G 3.80GHz 6-Core Server & Workstation Processor (CM8068404227703 / SRF7M)

Power your professional workstation or business server with the Intel Xeon E-2276G, a high-performance processor engineered for demanding workloads that require reliability, security, and exceptional processing power. Built on Intel's Coffee Lake Refresh architecture, this enterprise-class CPU combines six physical cores, twelve processing threads, ECC memory support, and integrated professional-grade graphics to deliver outstanding performance for modern business environments.

With a 3.80GHz base clock speed and Turbo Boost frequencies up to 4.90GHz, the Xeon E-2276G offers the responsiveness needed for virtualization, content creation, CAD applications, database management, engineering workloads, and mission-critical server operations.

Key Features

• Intel Xeon E-2276G Processor
• 6 Cores / 12 Threads with Intel Hyper-Threading Technology
• 3.80GHz Base Frequency
• Up to 4.90GHz Turbo Boost Technology 2.0
• 12MB Intel Smart Cache
• 80W Thermal Design Power (TDP)
• ECC Memory Support
• Intel UHD Graphics P630 Integrated Graphics
• Intel vPro® Platform Eligible
• Optimized for professional workstations and single-socket servers

Processor Specifications

• Processor Family: Intel Xeon E-2200 Series
• Model: Xeon E-2276G
• Ordering Code: CM8068404227703
• S-Spec: SRF7M
• Architecture: Coffee Lake Refresh
• Manufacturing Process: 14nm
• Cores: 6
• Threads: 12
• Base Clock Speed: 3.80GHz
• Maximum Turbo Frequency: 4.90GHz
• Cache: 12MB Intel Smart Cache
• Bus Speed: 8 GT/s DMI3
• TDP: 80W

Memory Support

• Maximum Memory Capacity: 128GB
• Memory Type: DDR4-2666
• Memory Channels: Dual-Channel
• ECC Memory Support: Yes
• Designed for enhanced reliability and data integrity in professional environments

Integrated Professional Graphics

• Intel UHD Graphics P630
• Graphics Base Frequency: 350 MHz
• Maximum Dynamic Frequency: 1.20 GHz
• 4K UHD Support at 60Hz
• Supports up to 3 Independent Displays
• Maximum DisplayPort Resolution: 4096 x 2304 @ 60Hz
• Maximum HDMI Resolution: 4096 x 2160 @ 24Hz

Enterprise Security & Reliability

• Intel vPro® Technology
• Intel Software Guard Extensions (SGX)
• Intel AES-NI Encryption Acceleration
• Intel Secure Key
• Intel Boot Guard
• Intel Trusted Execution Technology (TXT)
• Designed for secure business and enterprise deployments

Virtualization & Expansion Capabilities

• Intel VT-x Virtualization Technology
• Intel VT-d Directed I/O Virtualization
• Extended Page Tables (EPT) Support
• PCI Express 3.0
• 16 PCIe Lanes Direct from CPU
• Supports configurations of 1x16, 2x8, or 1x8 + 2x4
• Single-Socket (1S) Architecture

Platform Compatibility

• Socket: FCLGA1151
• Compatible Chipsets: Intel C246 and qualified C242 workstation/server platforms
• Designed specifically for enterprise server and workstation motherboards
• Not compatible with standard Intel consumer 300-series desktop chipsets

Ideal Applications

• Business Servers
• Virtualization Hosts
• Professional CAD Workstations
• Engineering & Design Software
• Database Management Systems
• Content Creation Workstations
• Network Attached Storage (NAS)
• Enterprise Productivity Environments

Why Choose the Intel Xeon E-2276G?

The Intel Xeon E-2276G offers an exceptional balance of high clock speeds, multi-threaded performance, enterprise security, ECC memory support, and integrated professional graphics. With six cores, twelve threads, and turbo frequencies reaching 4.90GHz, it provides the power and dependability required for today's demanding workstation and server applications while maintaining the reliability expected from the Intel Xeon platform.
