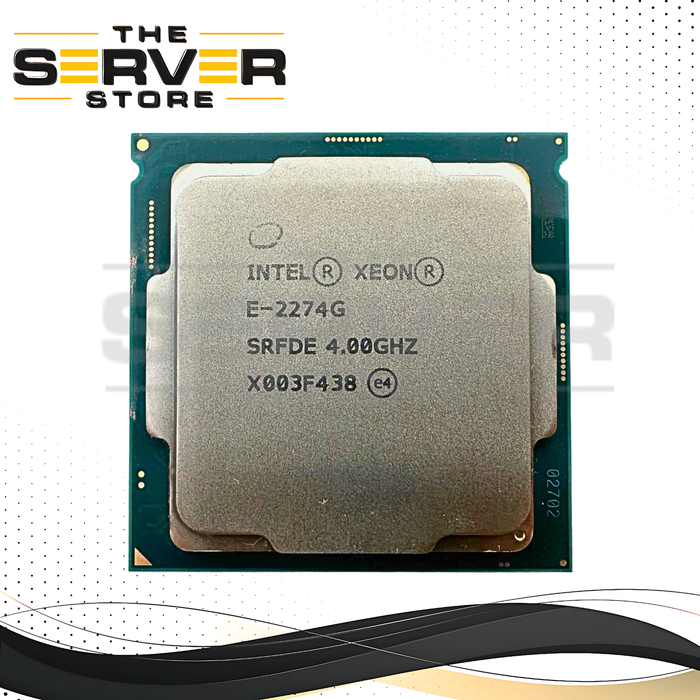

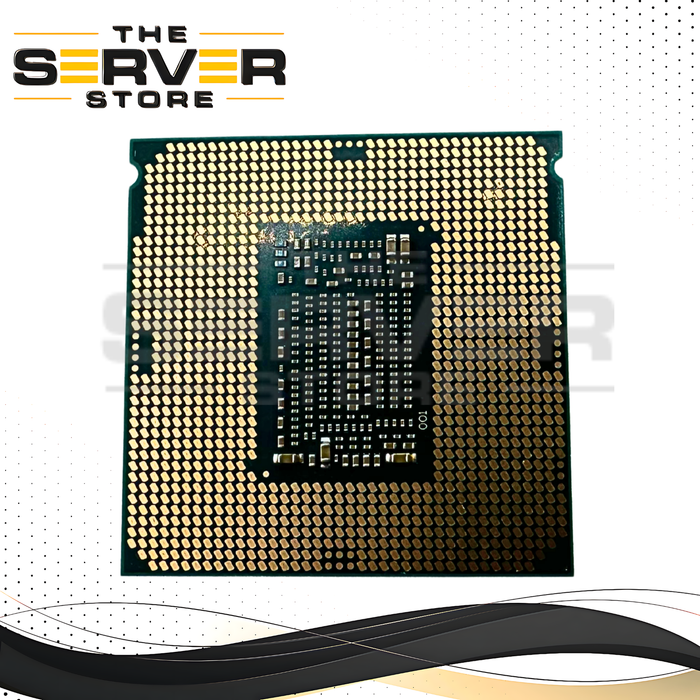

Intel Xeon E-2274G 4.00GHz Quad-Core Server & Workstation Processor (CM8068404174407 / SRFDE)
Built for professional workstations and entry-level server deployments, the Intel Xeon E-2274G delivers outstanding single-threaded performance, enterprise-class reliability, and advanced security features. Powered by Intel's proven Coffee Lake architecture, this processor combines high clock speeds with ECC memory support, integrated workstation graphics, and virtualization technologies to meet the demands of modern business environments.
With a blazing 4.00GHz base clock and Turbo Boost speeds up to 4.90GHz, the Xeon E-2274G is optimized for applications that benefit from strong per-core performance, making it an excellent choice for CAD workstations, business servers, virtualization hosts, database systems, and professional productivity platforms.
Key Features
- Intel Xeon E-2274G Processor
- 4 Cores / 8 Threads with Intel Hyper-Threading Technology
- 4.00GHz Base Clock Speed
- Up to 4.90GHz Turbo Boost Frequency
- 8MB Intel Smart Cache
- 71W TDP
- ECC Memory Support
- Intel UHD Graphics P630 Integrated Graphics
- Intel vPro® Platform Eligible
- Ideal for workstation and server environments
Processor Specifications
- Processor Family: Intel Xeon E-2200 Series
- Model: Xeon E-2274G
- Ordering Code: CM8068404174407
- S-Spec: SRFDE
- Architecture: Coffee Lake
- Manufacturing Process: 14nm
- Cores: 4
- Threads: 8
- Base Frequency: 4.00GHz
- Max Turbo Frequency: 4.90GHz
- Cache: 8MB Intel Smart Cache
- Bus Speed: 8 GT/s DMI3
- TDP: 83W
Memory Support
- Maximum Memory Capacity: 128GB
- Memory Type: DDR4-2666
- Memory Channels: Dual-Channel
- ECC Memory Compatibility: Yes
- Enhanced reliability for mission-critical business applications
Integrated Graphics
- Intel UHD Graphics P630
- Graphics Base Frequency: 350 MHz
- Maximum Graphics Frequency: 1.20 GHz
- 4K UHD Support at 60Hz
- Supports up to 3 Independent Displays
- Maximum DisplayPort Resolution: 4096 x 2304 @ 60Hz
- Maximum HDMI Resolution: 4096 x 2160 @ 24Hz
Enterprise Security & Virtualization
- Intel vPro® Technology
- Intel Software Guard Extensions (SGX)
- Intel AES New Instructions (AES-NI)
- Intel Secure Key
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Intel VT-x Virtualization Support
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
Expansion & Platform Compatibility
- Socket: FCLGA1151
- Server Chipset Required: Intel C246 (or validated C242 platforms)
- PCI Express Revision: PCIe 3.0
- Maximum PCIe Lanes: 16
- Scalability: Single-Socket (1S) Systems
Ideal Applications
- Business Servers
- Professional Workstations
- CAD & Engineering Applications
- Virtualization Hosts
- Database Servers
- Network Attached Storage (NAS)
- Content Creation Systems
- Enterprise Productivity Environments
Compatibility Notice
Important: While the Xeon E-2274G uses the FCLGA1151 socket, it requires a compatible Intel C246 server/workstation chipset (or validated C242 platform). It is not compatible with standard consumer Intel 300-series desktop motherboards such as H310, B360, B365, H370, Z370, or Z390.
Why Choose the Intel Xeon E-2274G?
The Intel Xeon E-2274G combines exceptional clock speeds, enterprise-grade stability, ECC memory support, integrated professional graphics, and advanced security technologies into a powerful workstation and server processor. Whether you're building a business server, engineering workstation, or virtualization platform, the E-2274G delivers the reliability and performance professionals demand.
