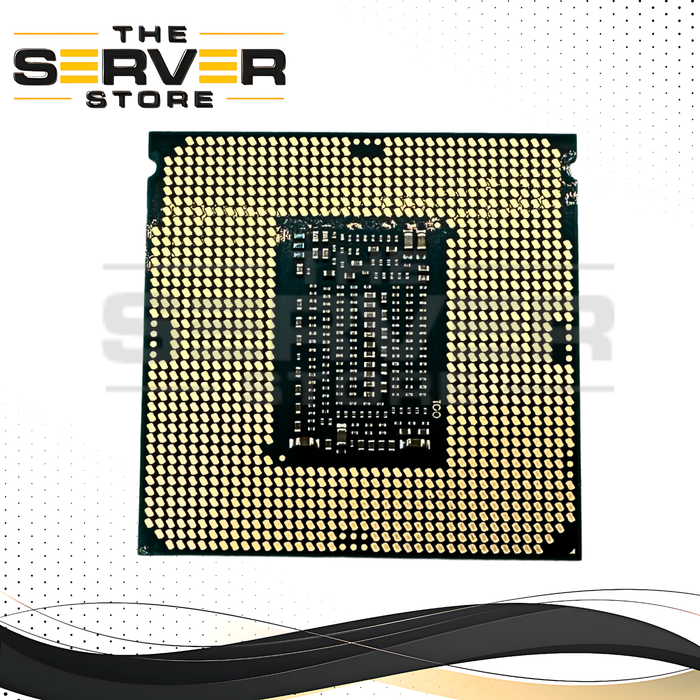

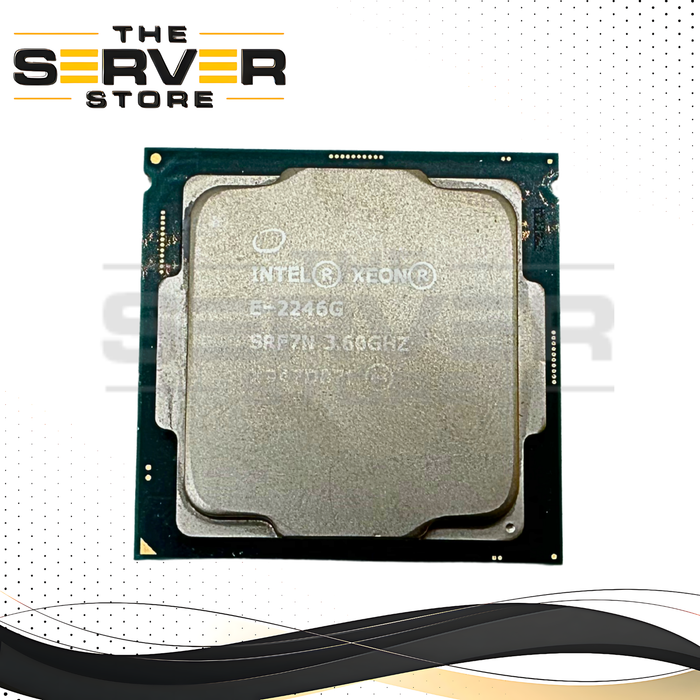

Intel Xeon E-2246G 3.60GHz 6 Core 12MB FCLGA1151 CPU CM8068404227903 SRF7N
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel Xeon E-2246G 3.60GHz 6-Core Server & Workstation Processor (CM8068404227903 / SRF7N)
Designed for professional workstations and business-critical servers, the Intel Xeon E-2246G delivers the performance, reliability, and security required for demanding enterprise environments. Built on Intel's advanced Coffee Lake Refresh architecture, this processor combines high clock speeds, ECC memory support, integrated professional graphics, and enterprise-class security technologies to power modern workloads with confidence.
Featuring 6 cores, 12 threads, a 3.60GHz base frequency, and Turbo Boost speeds up to 4.80GHz, the Xeon E-2246G is an ideal solution for virtualization, CAD applications, content creation, database workloads, business servers, and professional workstations that require dependable multi-threaded performance.
Key Features
- Intel Xeon E-2246G Processor
- 6 Cores / 12 Threads with Intel Hyper-Threading Technology
- 3.60GHz Base Clock Speed
- Up to 4.80GHz Turbo Boost Technology 2.0
- 12MB Intel Smart Cache
- 80W Thermal Design Power (TDP)
- ECC Memory Support for enhanced data integrity
- Intel UHD Graphics P630 Integrated Graphics
- Intel vPro® Platform Eligibility
- Optimized for professional workstation and server deployments
Processor Specifications
- Processor Family: Intel Xeon E-2200 Series
- Model: Xeon E-2246G
- Ordering Code: CM8068404227903
- S-Spec: SRF7N
- Architecture: Coffee Lake Refresh
- Manufacturing Process: 14nm
- Cores: 6
- Threads: 12
- Base Frequency: 3.60GHz
- Maximum Turbo Frequency: 4.80GHz
- Cache: 12MB Intel Smart Cache
- Bus Speed: 8 GT/s DMI3
- TDP: 80W
Memory Support
- Maximum Memory Capacity: 128GB
- Memory Type: DDR4-2666
- Memory Channels: Dual-Channel
- ECC Memory Support: Yes
- Engineered for reliable workstation and server operation
Integrated Professional Graphics
- Intel UHD Graphics P630
- Graphics Base Frequency: 350 MHz
- Maximum Dynamic Frequency: 1.20 GHz
- 4K UHD Display Support
- Supports up to 3 Independent Displays
- Maximum DisplayPort Resolution: 4096 x 2304 @ 60Hz
- Maximum HDMI Resolution: 4096 x 2160 @ 24Hz
Security & Enterprise Technologies
- Intel vPro® Technology Support
- Intel Software Guard Extensions (SGX)
- Intel AES-NI Hardware Encryption
- Intel Secure Key
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Enterprise-class protection for sensitive workloads
Virtualization & Expansion
- Intel VT-x Virtualization Technology
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
- PCI Express 3.0
- 16 PCIe Lanes Direct from CPU
- Supports 1x16, 2x8, or 1x8 + 2x4 PCIe configurations
- Designed for Single-Socket (1S) server architectures
Platform Compatibility
- Socket: FCLGA1151
- Compatible Chipsets: Intel C246 and qualified C242 workstation/server platforms
- Supports enterprise-grade motherboards with ECC functionality
- Not compatible with standard consumer Intel 300-Series desktop chipsets
Ideal Applications
- Professional Workstations
- Business Servers
- Virtualization Environments
- CAD & Engineering Software
- Database Management Systems
- Content Creation & Media Production
- Network Attached Storage (NAS)
- Enterprise Productivity Platforms
Why Choose the Intel Xeon E-2246G?
The Intel Xeon E-2246G delivers an outstanding blend of clock speed, multi-core performance, enterprise reliability, and integrated graphics capability. With support for ECC memory, advanced virtualization features, and robust security technologies, this processor is an excellent choice for organizations seeking a dependable solution for workstation and server workloads.
