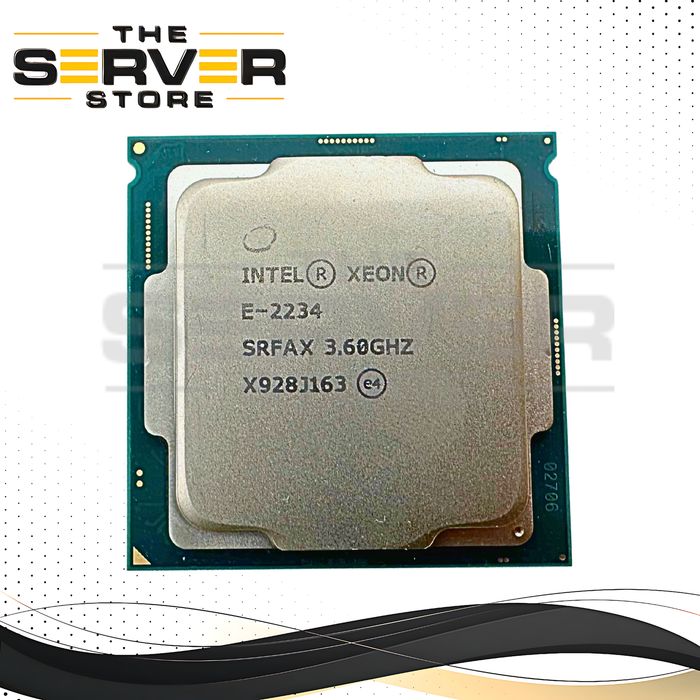

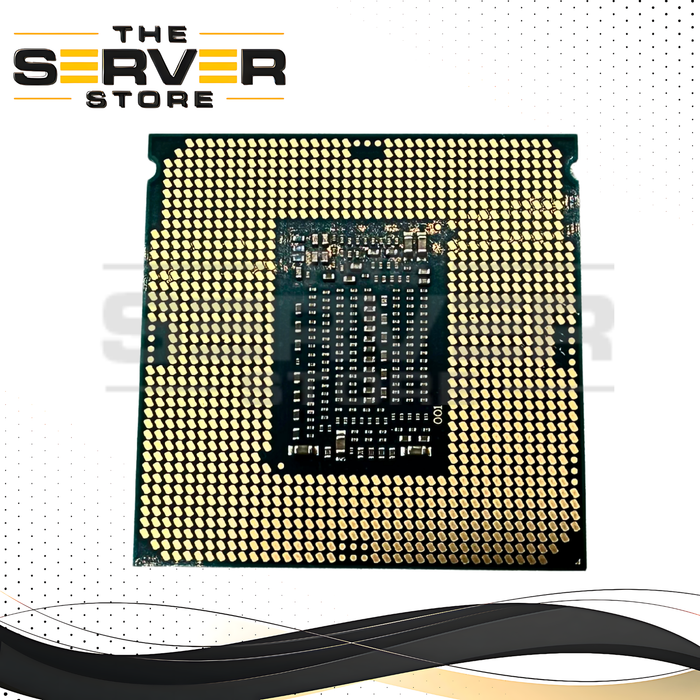

Intel Xeon E-2234 3.60GHz Quad Core 8MB 71W FCLGA1151 CPU CM8068404174806 SRFAX
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel Xeon E-2234 3.60GHz Quad-Core Server Processor (CM8068404174806 / SRFAX)
Designed for professional workstations and business server environments, the Intel Xeon E-2234 delivers the reliability, security, and high-frequency performance organizations depend on for mission-critical workloads. Built on Intel's proven Coffee Lake architecture, this Xeon processor combines powerful clock speeds with enterprise-class features such as ECC memory support, advanced virtualization technologies, and Intel security enhancements.
With 4 cores, 8 threads, a base frequency of 3.60GHz, and Turbo Boost speeds reaching 4.80GHz, the Xeon E-2234 provides exceptional responsiveness for business applications, virtualization, engineering software, database workloads, and professional workstation deployments.
Key Features
- Intel Xeon E-2234 Processor
- 4 Cores / 8 Threads with Intel Hyper-Threading Technology
- 3.60GHz Base Clock Frequency
- Up to 4.80GHz Turbo Boost
- 8MB Intel Smart Cache
- 71W Thermal Design Power (TDP)
- ECC Memory Support
- PCIe 3.0 Support with up to 16 CPU lanes
- Enterprise-grade security and virtualization technologies
- Optimized for server and workstation environments
Processor Specifications
- Processor Family: Intel Xeon E-2200 Series
- Model: Xeon E-2234
- Ordering Code: CM8068404174806
- S-Spec: SRFAX
- Architecture: Coffee Lake
- Process Technology: 14nm
- Cores: 4
- Threads: 8
- Base Clock: 3.60GHz
- Turbo Frequency: Up to 4.80GHz
- Cache: 8MB Intel Smart Cache
- Bus Speed: 8 GT/s DMI3
- TDP: 71W
Memory Support
- Maximum Memory Capacity: 128GB
- Memory Type: DDR4-2666
- Memory Channels: Dual-Channel
- ECC Memory Support: Yes
- Enhanced data integrity for professional and business environments
Enterprise Security & Reliability
- Intel vPro® Platform Eligible
- Intel Software Guard Extensions (SGX)
- Intel AES New Instructions (AES-NI)
- Intel Secure Key Technology
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Built for secure business and server deployments
Virtualization & Expansion
- Intel VT-x Virtualization Technology
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
- PCI Express 3.0
- 16 PCIe Lanes Direct from CPU
- Single-Socket (1S) Server Platform Support
Graphics Requirement
Important: The Intel Xeon E-2234 does not include integrated graphics. A dedicated graphics card or a server motherboard equipped with onboard video management hardware (such as an ASPEED IPMI controller) is required for video output.
Platform Compatibility
- Socket: FCLGA1151
- Recommended Chipset: Intel C246
- Supported Platforms: Select workstation-grade Intel C242 and C246 motherboards
- Not compatible with standard consumer Intel 300-series desktop motherboards
Ideal Applications
- Business Servers
- Virtualization Hosts
- Professional Workstations
- Engineering & CAD Systems
- Database Applications
- Network Attached Storage (NAS)
- IT Infrastructure Deployments
- Enterprise Productivity Platforms
Why Choose the Intel Xeon E-2234?
The Intel Xeon E-2234 combines enterprise-class reliability with impressive clock speeds and modern security features. With ECC memory capability, Hyper-Threading support, virtualization technologies, and turbo frequencies up to 4.80GHz, this processor is an excellent choice for organizations seeking dependable performance in workstation and server environments.
