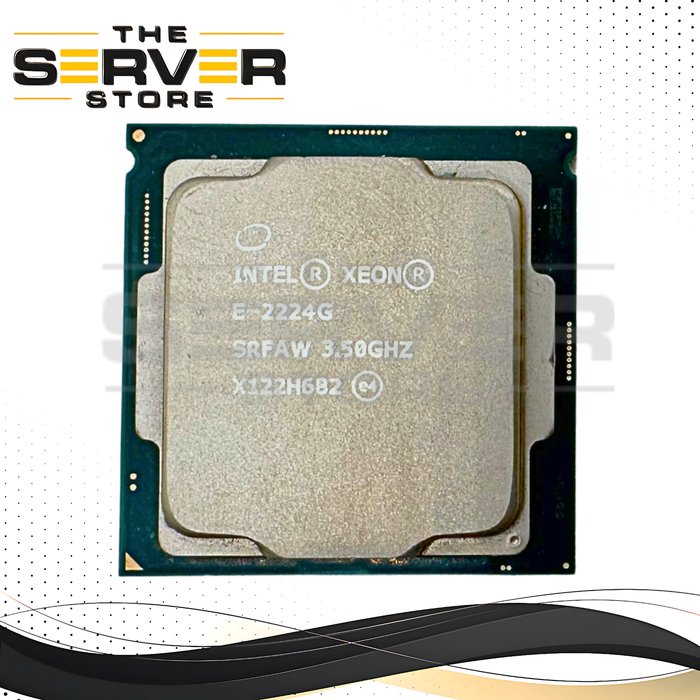

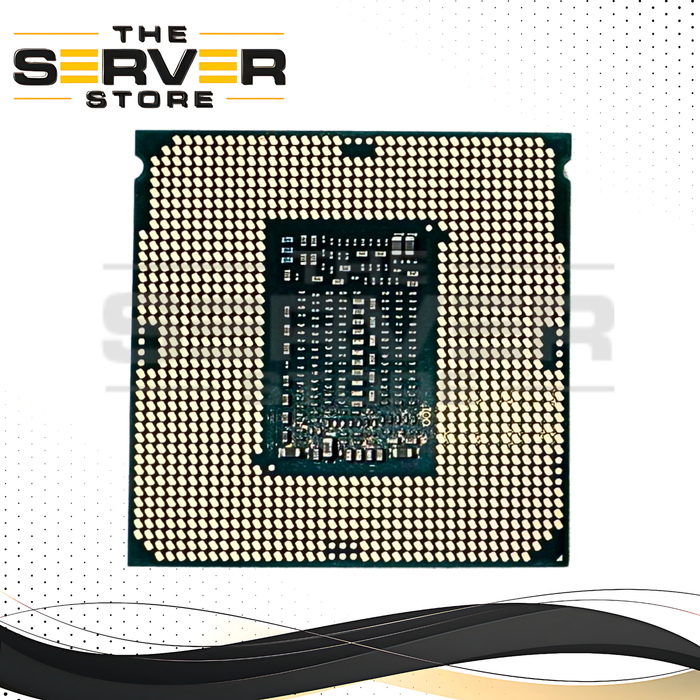

Intel Xeon E-2224G 3.50GHz Quad Core 8MB 71W FCLGA1151 CPU CM8068404173806 SRFAW
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel Xeon E-2224G 3.50GHz Quad-Core Server Processor (CM8068404173806 / SRFAW)
The Intel Xeon E-2224G is a professional-grade server and workstation processor engineered for reliability, security, and consistent performance in business-critical environments. Built on Intel's proven Coffee Lake architecture, this Xeon processor delivers a powerful combination of high clock speeds, ECC memory support, integrated workstation-class graphics, and enterprise security technologies.
Featuring 4 physical cores, a turbo frequency of up to 4.70GHz, and support for up to 128GB of DDR4 ECC memory, the Xeon E-2224G is an excellent choice for entry-level servers, workstations, virtualization hosts, CAD systems, business applications, and professional computing environments.
Key Features
- Intel Xeon E-2224G Server Processor
- 4 Cores / 4 Threads
- 3.50GHz Base Frequency
- Up to 4.70GHz Turbo Boost Speed
- 8MB Intel Smart Cache
- 71W Thermal Design Power (TDP)
- ECC Memory Support
- Intel UHD Graphics P630 Integrated Professional Graphics
- Intel vPro® Technology Support
- Designed for workstation and single-socket server deployments
Processor Specifications
- Processor Family: Intel Xeon E-2200 Series
- Model: Xeon E-2224G
- Ordering Code: CM8068404173806
- S-Spec: SRFAW
- Architecture: Coffee Lake
- Manufacturing Process: 14nm
- Cores: 4
- Threads: 4
- Base Clock Speed: 3.50GHz
- Maximum Turbo Frequency: 4.70GHz
- Cache: 8MB Intel Smart Cache
- Bus Speed: 8 GT/s DMI3
- TDP: 71W
Memory Support
- Maximum Memory Capacity: 128GB
- Memory Type: DDR4-2666
- Memory Channels: Dual-Channel
- ECC Memory Support: Yes
- Optimized for server and workstation reliability
Integrated Graphics
- Intel UHD Graphics P630
- Graphics Base Frequency: 350 MHz
- Maximum Dynamic Frequency: 1.20 GHz
- Supports up to 3 Independent Displays
- 4K Resolution Support at 60Hz
- Maximum DisplayPort Resolution: 4096 x 2304 @ 60Hz
- Maximum HDMI Resolution: 4096 x 2160 @ 24Hz
Enterprise Security & Reliability
- Intel vPro® Platform Support
- Intel Software Guard Extensions (SGX)
- Intel AES New Instructions (AES-NI)
- Intel Secure Key
- Intel Boot Guard
- Intel Trusted Execution Technology (TXT)
- Built for secure and reliable server operation
Virtualization & Expansion
- Intel VT-x Virtualization Technology
- Intel VT-d Directed I/O Virtualization
- Extended Page Tables (EPT) Support
- PCI Express 3.0
- 16 PCIe Lanes Direct from CPU
- Single-Socket (1S) Server Configuration Support
Compatibility Notice
Important: Although the Xeon E-2224G uses the FCLGA1151 socket, it requires a compatible Intel C246 workstation/server chipset (or select validated C242 platforms). It is not compatible with standard consumer Intel desktop chipsets such as H310, B360, B365, H370, Z370, or Z390.
Ideal Applications
- Entry-Level Business Servers
- Professional Workstations
- Network Attached Storage (NAS)
- Virtualization Hosts
- CAD and Engineering Systems
- Database Servers
- Business Productivity Platforms
- Remote Management Environments
Why Choose the Intel Xeon E-2224G?
With enterprise-class stability, ECC memory support, advanced security technologies, integrated professional graphics, and turbo speeds reaching 4.70GHz, the Intel Xeon E-2224G provides an ideal balance of performance and reliability for organizations that require dependable computing in server and workstation environments.
