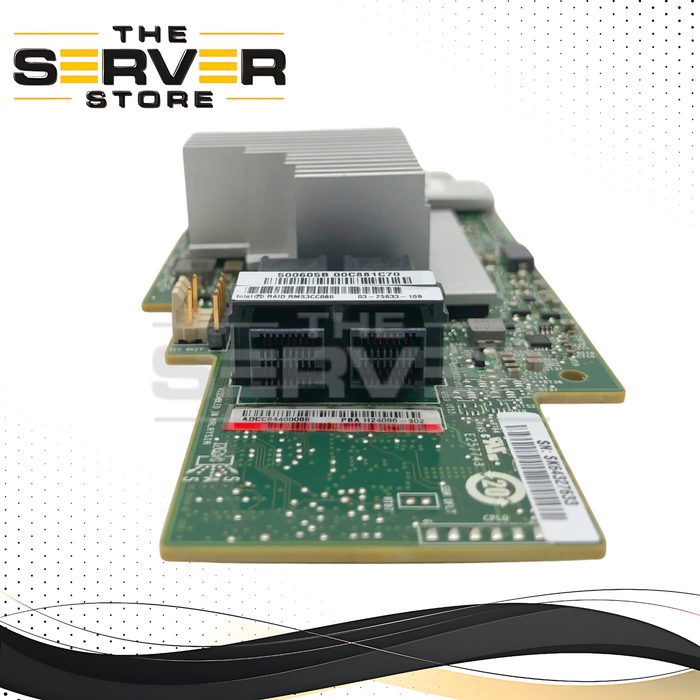

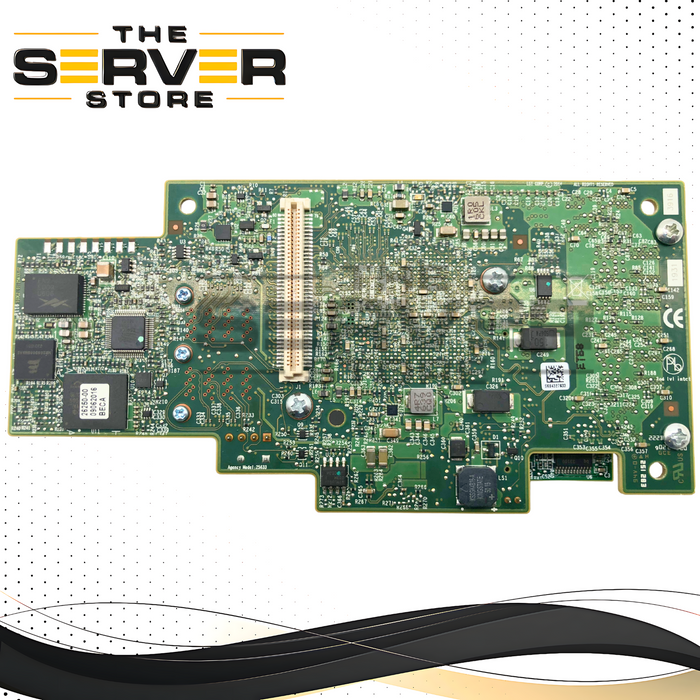

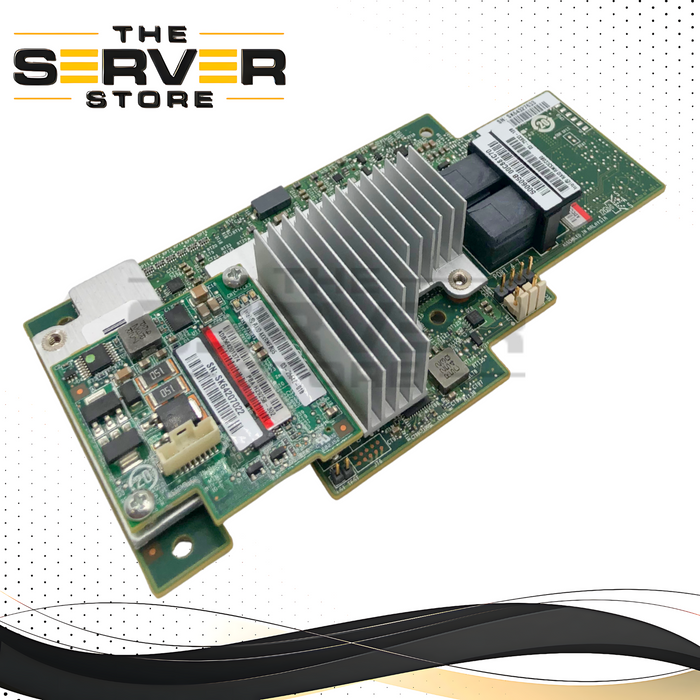

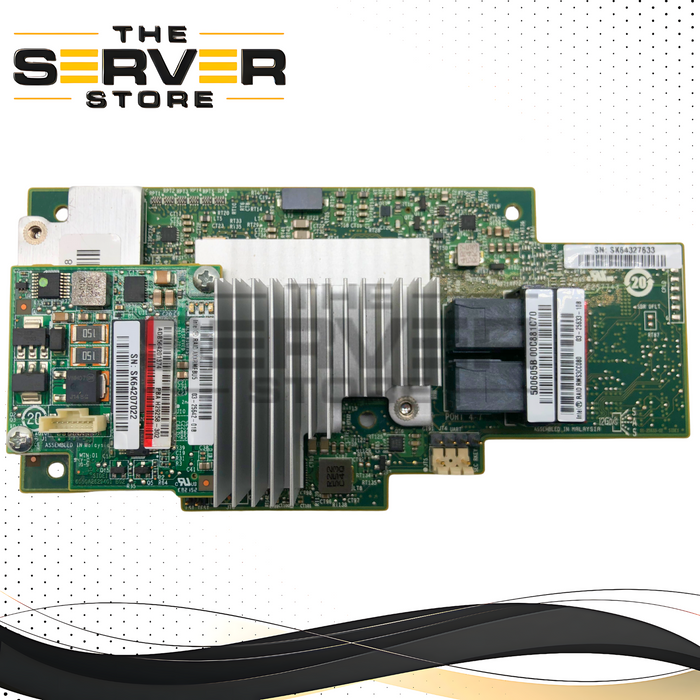

Intel RMS3CC080 8-Port 12Gb/s SAS/SATA RAID Controller *Card Only* H29258-302
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | RMS3CC080, H29258-302 |
| Manufacturer | Intel |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID Controller Card |
| Model | RMS3CC080 |
| Form Factor | Integrated RAID Module |
| Interface | SAS / SATA |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | 12 Gb/s |
| Network Management Type | |
| Processor Type | LSI SAS3108 |
| Clock Speed | 1.2 GHz (Dual-Core) |
| Number of Cores | 2 |
| Cache | 2 GB |
| Socket Type | |
| TDP | ~25 W |
| Compatible Port | |
| Number of Ports | 8 (internal) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a genuine Intel Integrated RAID Module RMS3CC080 (P/N: H29258-302). This is a specialized, high-performance storage controller designed to provide enterprise-class data protection and performance for compatible Intel Server Boards and Systems. Powered by the robust LSI SAS3108 RAID-on-Chip (ROC), this module offers 12Gb/s SAS connectivity and a full suite of hardware RAID levels without occupying a standard PCIe slot.
Key Features
-
Genuine Intel Part: Ensures "plug and play" compatibility and validated performance within the Intel server ecosystem.
-
Integrated Module Form Factor: This specialized form factor connects directly to a dedicated slot on the motherboard, saving valuable PCIe slots for other hardware like GPUs or high-speed network adapters.
-
12Gb/s SAS3 Performance: Features eight internal 12Gb/s SAS/SATA ports, providing high-throughput connectivity for modern SSDs and hard drives.
-
LSI SAS3108 ROC: Built on the industry-leading LSI (Broadcom) SAS3108 RAID-on-Chip, known for its powerful performance and robust hardware RAID capabilities.
-
Advanced RAID Levels: Supports a full suite of RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, for ultimate flexibility in data protection and performance optimization.
