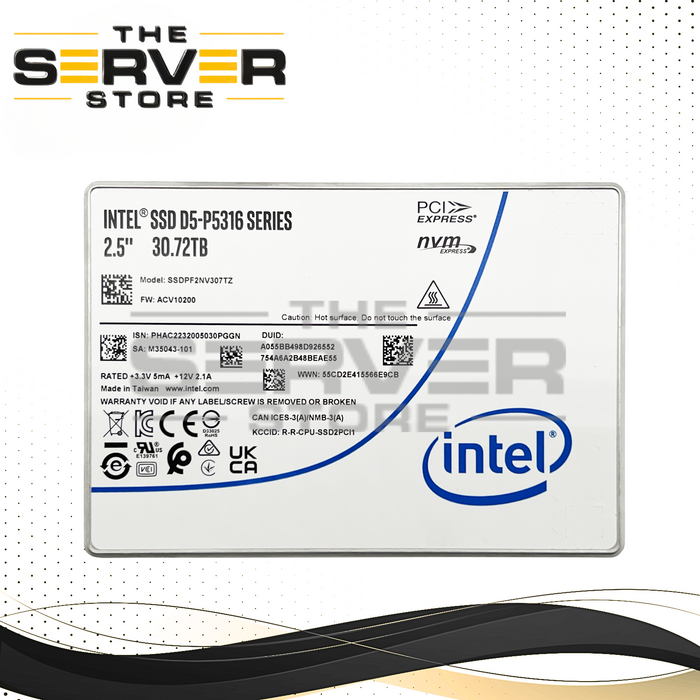

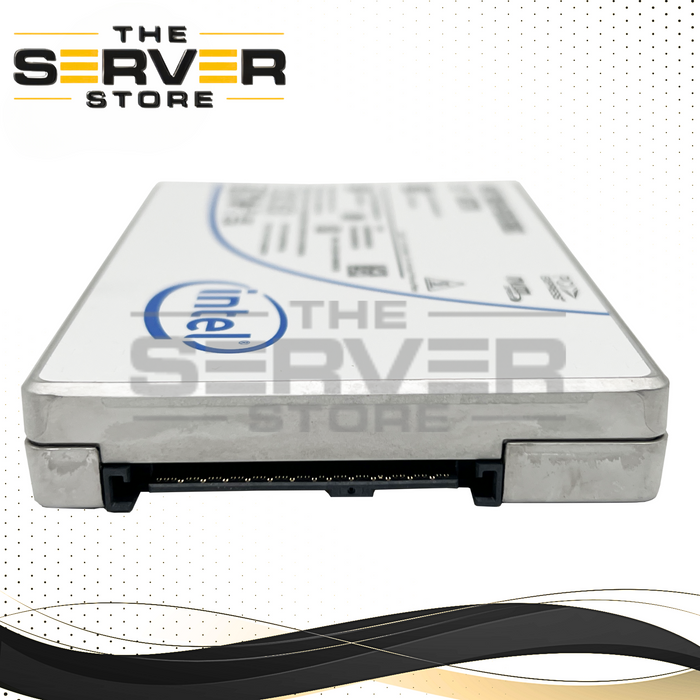

Intel 30.72TB NVME U.2 PCIe G4 x4 RI SED SFF 2.5" SSD D5-P5316 SSDPF2NV307TZ

Intel 30.72TB NVME U.2 PCIe G4 x4 RI SED SFF 2.5" SSD D5-P5316 SSDPF2NV307TZ

Sold out
$3,561.24 - $3,561.24
$3,561.24
$4,378.99
$4,378.99 - $4,378.99
$4,378.99
SKU SSDPF2NV307TZ
Availability:
Out of stock

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number SSDPF2NV307TZ
Manufacturer Intel
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category Solid State Drives
Model D5-P5316 Series
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface PCIe / NVMe
SSD Storage Capacity 30.72 TB
SSD Transfer Rate 30.72 TB
SSD Type

The Intel 30.72TB NVMe U.2 PCIe Gen4 SSD (D5-P5316 Series) is an ultra-high-capacity, read-intensive enterprise solid-state drive designed for hyperscale data centers, cloud storage, and large-scale analytics platforms. Identified by manufacturer part numbers SSDPF2NV307TZ and M35043-101, this drive delivers industry-leading density and performance in a standard 2.5" SFF U.2 form factor.

Built on 144-layer QLC 3D NAND and leveraging a PCIe Gen4 x4 NVMe interface, the D5-P5316 provides exceptional throughput while maintaining power efficiency and enterprise-grade reliability. It is ideal for workloads such as content delivery, object storage, virtualization, and data lakes where maximum capacity per server is critical.

General Specifications

  • Capacity: 30.72TB

  • Series: Intel / Solidigm D5-P5316

  • Part Numbers: SSDPF2NV307TZ, M35043-101

  • Form Factor: 2.5" SFF (15mm), U.2

  • Interface: PCIe Gen4 x4, NVMe v1.3c

  • NAND Type: 144-Layer QLC 3D NAND

  • Usage: Enterprise, Server, Data Center

  • Workload Type: Read-Intensive (RI)

Performance

  • Sequential Read: Up to 7,000 MB/s

  • Sequential Write: Up to 3,600 MB/s

  • Random Read (4K): Up to 800,000 IOPS

  • Random Write (4K): Up to 7,800 IOPS

  • Average Latency: 160 µs

Endurance & Reliability

  • Endurance Rating: 0.41 – 0.5 DWPD

  • Total Bytes Written (TBW):

    • Up to 104.55 PB (Sequential 64K)

    • Up to 22.93 PB (Random 64K)

  • MTBF: 2,000,000 hours

  • UBER: < 1 sector per 10¹⁷ bits read

Security & Data Protection

  • Encryption: 256-bit AES hardware encryption (SED-enabled)

  • Security Features: NVMe Sanitize, Firmware Measurement, Intel Remote Secure Erase

  • Data Protection: Enhanced Power Loss Protection (PLP), End-to-End Data Protection

Power & Environmental

  • Power Consumption: 25W active / 5W idle

  • Operating Temperature: 0°C to 70°C

  • Shock Resistance: 1,000G (0.5ms)

  • Vibration: 2.17 Grms (operating), 3.13 Grms (non-operating)

The Intel / Solidigm D5-P5316 30.72TB NVMe SSD is a best-in-class solution for enterprises seeking maximum storage density, Gen4 performance, and secure read-intensive endurance in a compact U.2 form factor—perfect for modern hyperscale and cloud-native infrastructures.
