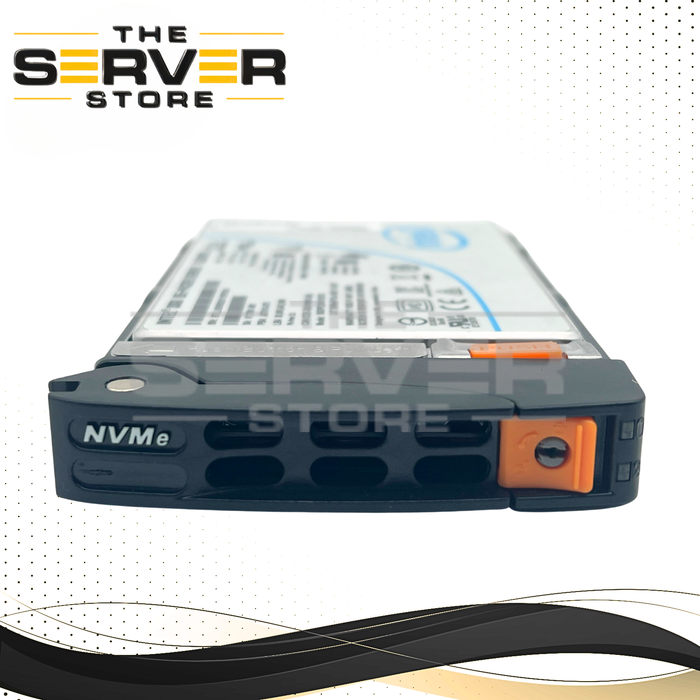

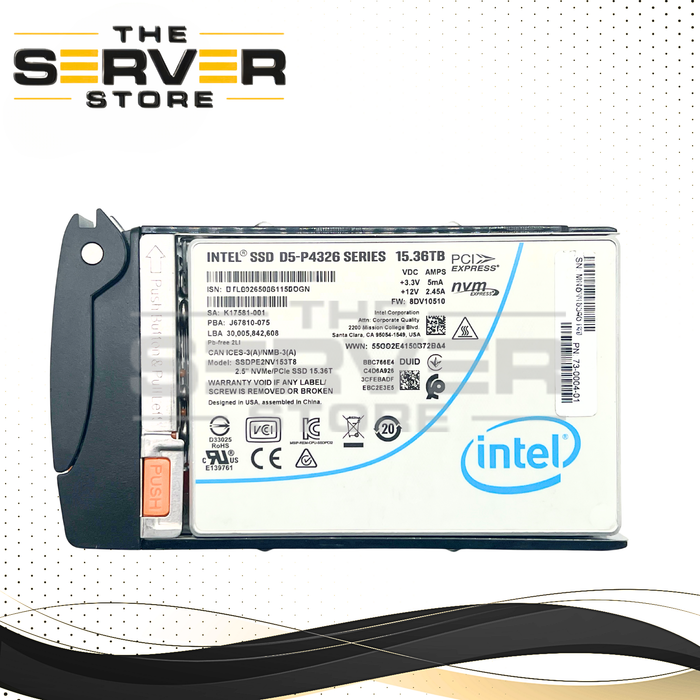

Intel 15.36TB NVMe U.2 PCIe Gen3.0 x4 RI 2.5" SSD D5-P4326 Series for Supermicro Server SSDPE2NV153T8
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | SSDPE2NV153T8 (with Supermicro Tray) (This tray may vary depending on our inventory) |
| Manufacturer | Intel |
| Condition | (90%+ Health). Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | D5-P4326 Series (Read Description) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel 15.36TB NVMe U.2 PCIe Gen3.0 x4 Read Intensive (RI) 2.5" SSD D5-P4326 Series SSDPE2NV153T8 for Supermicro Server
The Intel D5-P4326 Series (Model: SSDPE2NV153T8) is a high-capacity, enterprise-grade NVMe solid-state drive engineered for read-intensive workloads in modern data center environments. Built with 64-layer QLC 3D NAND, it delivers exceptional storage density and reliable performance in a standard 2.5-inch U.2 form factor, making it ideal for Supermicro NVMe-enabled systems.
Related Part Numbers
SSDPE2NV153T8, SSDPE2NV153T801, J67810-075, 73-0004-01
Supermicro Internal PN: HDS-IUN0-SSDPE2NV153T8
Key Technical Specifications
- Capacity: 15.36TB
- Interface: PCIe 3.1 x4 (NVMe)
- Form Factor: 2.5" U.2 (SFF-8639), 15mm
- NAND Type: 64-Layer QLC 3D NAND
- Sequential Read: Up to 3,200 MB/s
- Sequential Write: Up to 1,600 MB/s
- Random Read (4KB): Up to 580,000 IOPS
- Random Write: Up to 15,000 IOPS
- Read Latency: 135 µs
- Write Latency: 60 µs
Reliability & Endurance
-
Endurance:
- Up to 24.6 PBW (Sequential)
- Up to 5 PBW (Random)
- MTBF: 2 million hours
- UBER: 1 sector per 10¹⁷ bits read
- Power Loss Protection: Yes (Enhanced PLI)
- Data Protection: End-to-End Data Protection
Power & Environmental
- Active Power: ~20W
- Idle Power: ~5W
- Operating Temperature: 0°C to 70°C
- Shock/Vibration: 1000G / 2.17 GRMS
Security
- Encryption: AES 256-bit hardware-based
Supermicro Compatibility
This SSD is fully compatible with Supermicro systems that support U.2 NVMe (SFF-8639) drives.
Supported Supermicro Platforms Include:
- Ultra SuperServers: SYS-1029U-TN10RT, SYS-2029U-TN24R4T
- BigTwin / FatTwin: Multi-node high-density platforms
- Hyper A+ (AMD): AS-2115HS-TNR, AS-2125HS-TNR
- SuperStorage Systems: SSG-2029P-E1CR24H
Supported NVMe Tray (Supermicro)
-
Tool-less NVMe Tray: MCP-220-00167-0B
- Designed for quick installation and removal
- Compatible with 2.5" U.2 NVMe drives
- Common in modern Supermicro chassis
Important Notes
- Requires NVMe-enabled backplane (SATA/SAS-only backplanes are NOT compatible)
- Compatible with PCIe Gen4/Gen5 systems (operates at Gen3 speeds)
- Ideal for read-intensive workloads such as:
- Data lakes
- Content delivery networks (CDN)
- Warm storage tiers
- Read-heavy databases
Summary
The Intel D5-P4326 15.36TB NVMe SSD (SSDPE2NV153T8) is a high-density, cost-efficient storage solution optimized for read-heavy enterprise workloads. When deployed in Supermicro NVMe-enabled platforms with the proper tool-less tray, it delivers excellent scalability, reliability, and performance for modern data center environments.
