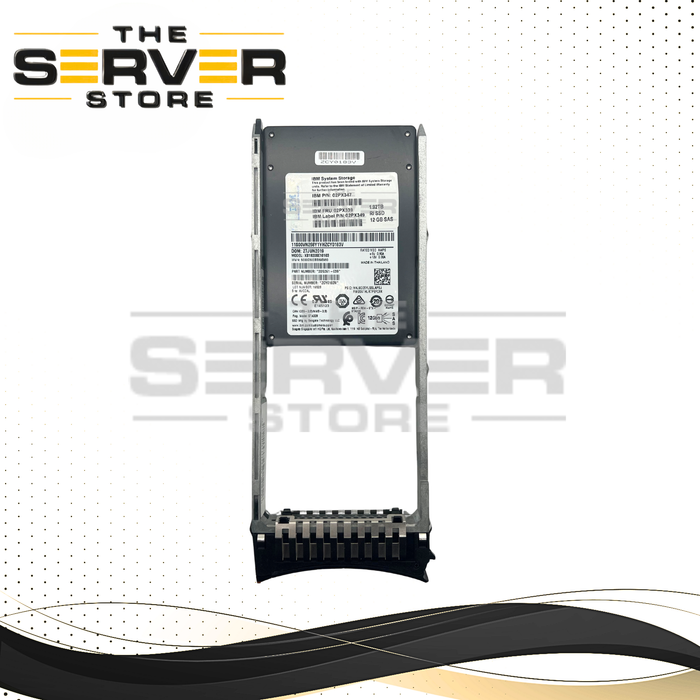

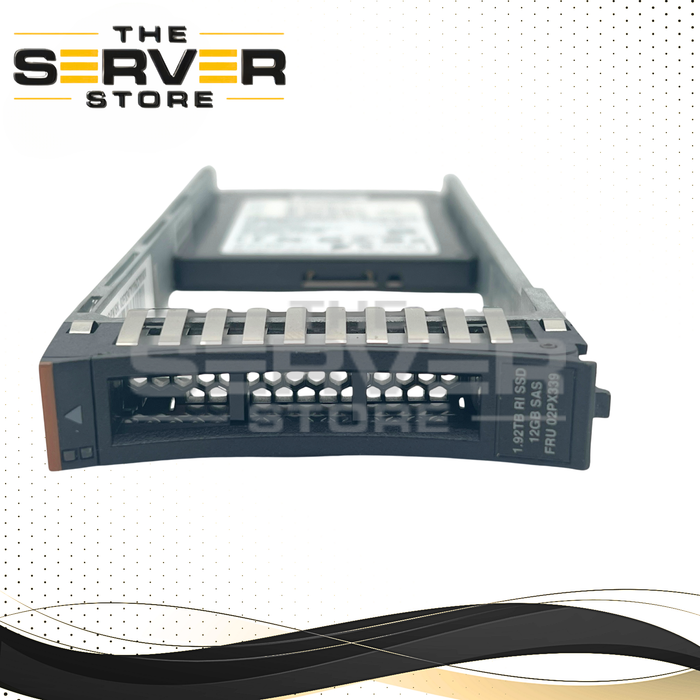

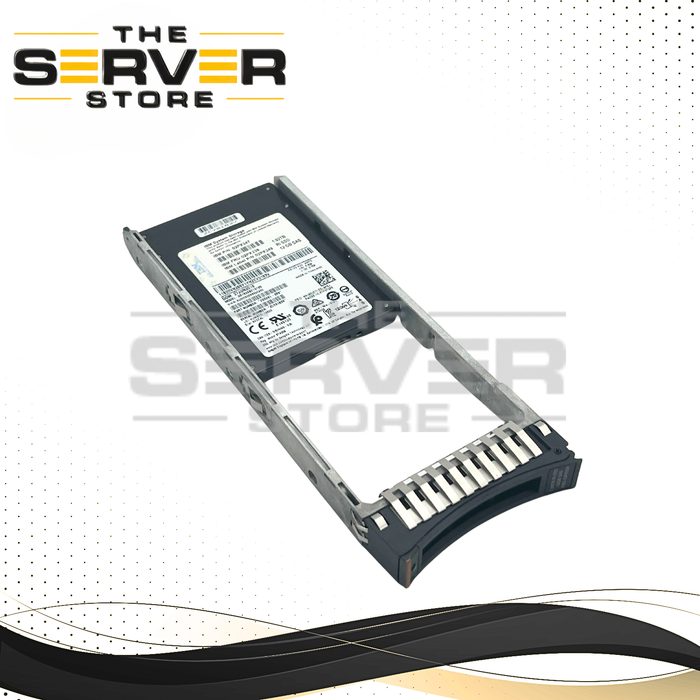

IBM 1.92TB SAS 12G 2.5" SSD Seagate Nytro 3330 Series XS1920SE10103 02PX349 02PX347 02PX339
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 02PX349 02PX347 02PX339 |
| Manufacturer | IBM / Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 3330 Series XS1920SE10103 (Read Description) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
IBM 1.92TB SAS 12G 2.5" SSD Seagate Nytro 3330 Series – XS1920SE10103 / 02PX349 / 02PX347
The IBM 1.92TB SAS 12Gb/s SSD, based on the Seagate Nytro 3330 platform (model XS1920SE10103), is an enterprise-grade solid-state drive engineered for high reliability and consistent performance in read-intensive environments.
Manufactured by Seagate Technology and branded for IBM systems, this drive is part of the Nytro 3000 family and delivers scalable endurance with dual-port SAS connectivity for mission-critical workloads.
Related Part Numbers
02PX349
02PX347
XS1920SE10103
2D5261-039
Key Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | Seagate (IBM branded) |
| Model | XS1920SE10103 |
| Series | Nytro 3330 (Nytro 3000 family) |
| Capacity | 1.92TB (1920GB) |
| Form Factor | 2.5-inch, 7mm height |
| Interface | Dual-port 12Gb/s SAS (SAS-3) |
| NAND Type | 3D Enterprise TLC (eTLC) |
| Endurance | 1.0 DWPD (Scaled Endurance – Read Intensive) |
| Sequential Read | Up to 2100 MB/s (dual-port) |
| Sequential Write | Up to 1200 MB/s (max power limit) |
| Random Read (4K) | Up to 375,000 IOPS |
| Random Write (4K) | Up to 70,000 IOPS |
| Average Latency | 120 μs |
| Data Protection | Power-loss protection, T10 DIF, advanced ECC |
| Security | Nytro series supports Seagate Secure™ SED models (specific model may vary) |
Enterprise Features
-
Dual-port SAS for high availability environments
-
Power-loss data protection
-
End-to-end data integrity
-
Optimized for read-intensive workloads
-
Designed for 24/7 data center operation
Ideal For
-
Enterprise servers
-
Storage arrays
-
Database read-heavy applications
-
Virtualization environments
-
High-availability SAS infrastructures
Please verify firmware compatibility and server/storage system support before purchasing to ensure proper integration.
