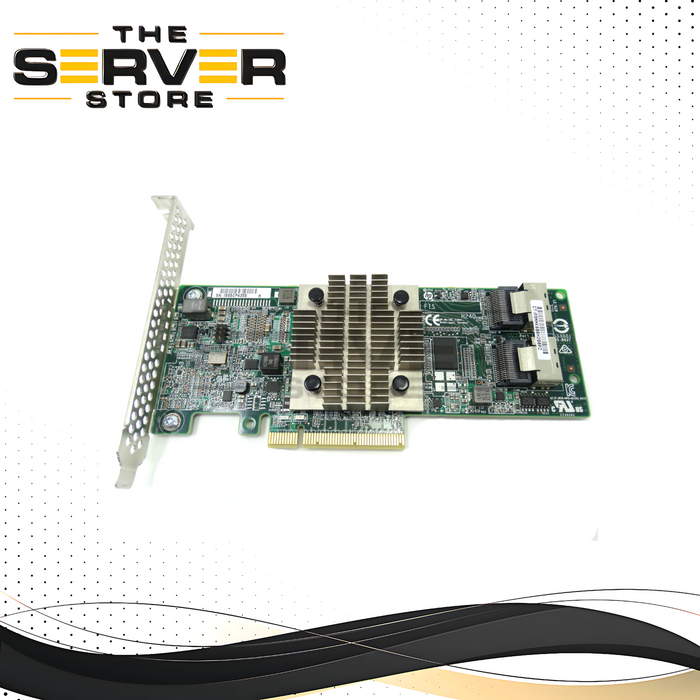

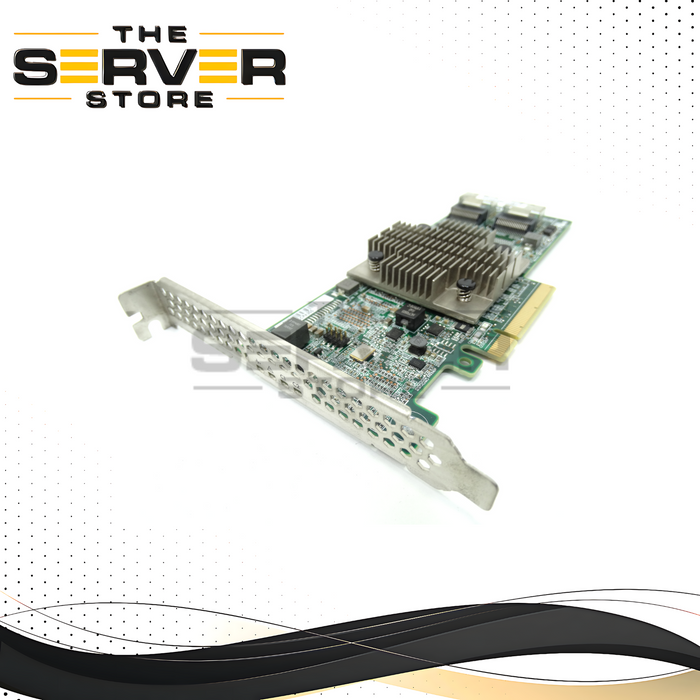

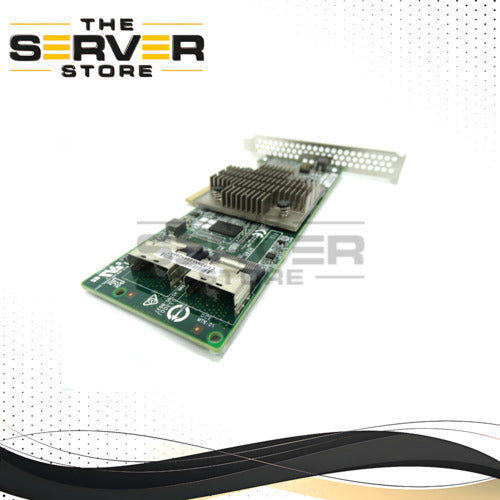

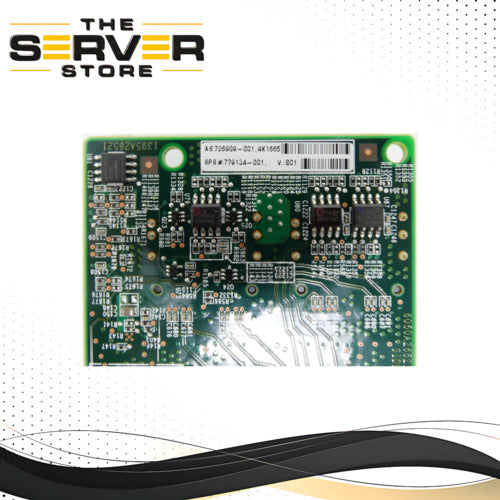

HPE H240 12G 2 Port SAS/SATA Smart Host Bus Adapter (HBA) 726907-B21 779134-001

HPE H240 12G 2 Port SAS/SATA Smart Host Bus Adapter (HBA) 726907-B21 779134-001

Save 20% Save 20%
$23.74
$23.74 - $23.74
$23.74
$18.99
$18.99 - $18.99
$18.99
SKU 779134-001
Availability:
Only 12 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number 726907-B21 / 779134-001
Manufacturer HPE
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category RAID, HBA, & Storage Controllers
Model Before you buy, please ask about the bracket we have — our inventory has variations.
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

HPE H240 12G 2-Port Internal SAS / SATA PCIe Smart Host Bus Adapter (HBA)

Option / Spare / Assembly Part Numbers: 726907-B21 · 726909-001 · 750053-001 · 779134-001

The HPE H240 Smart Host Bus Adapter (HBA) is a 12Gb/s internal SAS / 6Gb/s SATA storage controller designed for HPE ProLiant Gen9 servers. All listed part numbers — 726907-B21, 726909-001, 750053-001, and 779134-001 — refer to the same base HPE H240 product, with differences only reflecting HPE lifecycle designations such as option kit, spare, or assembly.

Part Number Relationship (Important)

  • 726907-B21 – HPE Option Kit

  • 726909-001 – HPE Spare Part

  • 750053-001 / 779134-001 – HPE Assembly / Manufacturing Numbers

Functionality, specifications, and compatibility are identical across all part numbers.

Compatibility

  • Supported Servers: HPE ProLiant Gen9

    • DL Series

    • ML Series

    • XL Series

Controller & Host Interface

  • Device Type: Smart Host Bus Adapter (HBA) / Simple RAID Controller

  • Host Bus: PCI Express Gen3 x8

  • Form Factor: Plug-in card, low profile
    (Full-height bracket included with some SKUs)

Storage Interfaces

  • Interface Support:

    • SAS 12Gb/s

    • SATA 6Gb/s

  • Ports: 2 × internal Mini-SAS (SFF-8087)

  • Channels: 8 physical links (4 per port)

Performance & Capacity

  • Data Transfer Rate:

    • Up to 12Gb/s per SAS lane

    • Up to 1.2 GB/s per port

  • Maximum Devices Supported:

    • Up to 200 physical drives in HBA mode

    • Up to 64 logical drives in RAID mode

RAID & Operating Modes

  • Selectable Modes:

    • HBA (pass-through) mode

    • Simple RAID mode

  • Supported RAID Levels:

    • RAID 0

    • RAID 1

    • RAID 5

  • Cache / Acceleration:

    • No cache support

    • No flash-backed write cache

Supported Devices

  • SAS HDDs

  • SATA HDDs

  • SAS & SATA SSDs

  • SAS tape drives

Physical Specifications

  • Dimensions: 6.6 × 2.7 × 0.6 in
    (16.8 × 6.86 × 1.6 cm)

Additional Features

  • Designed for software-defined storage (SDS) and pass-through deployments

  • Lower power consumption due to no cache

  • Optional HPE Secure Encryption license support
