HPE G2 BASIC 3PH 17.3KVA/60309 60A 18xC13 6xC19 PDU 866817-031 P9Q61A 868616-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 866817-031 / P9Q61A / 868616-001 |
| Manufacturer | HPE |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | PDU |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

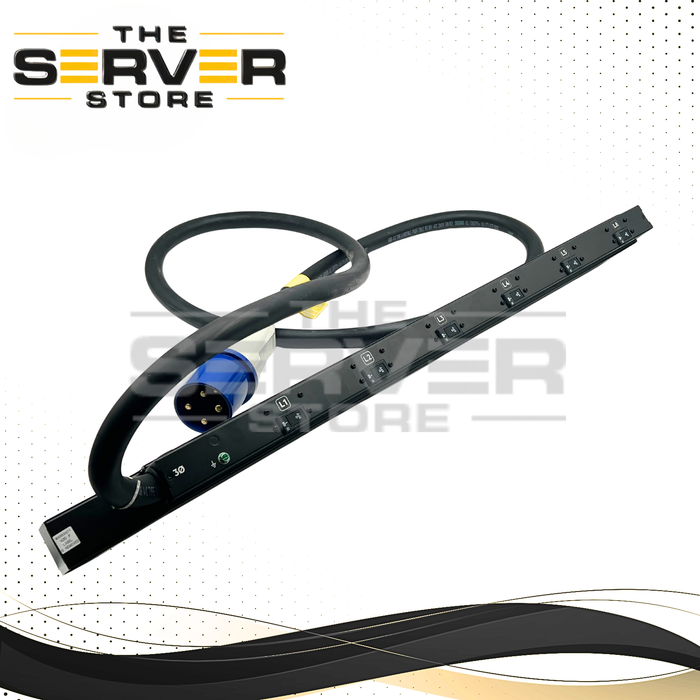

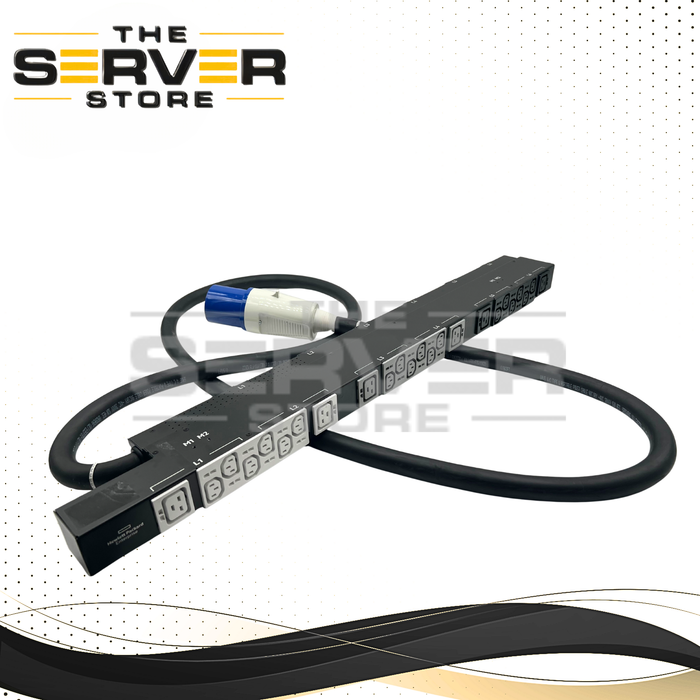

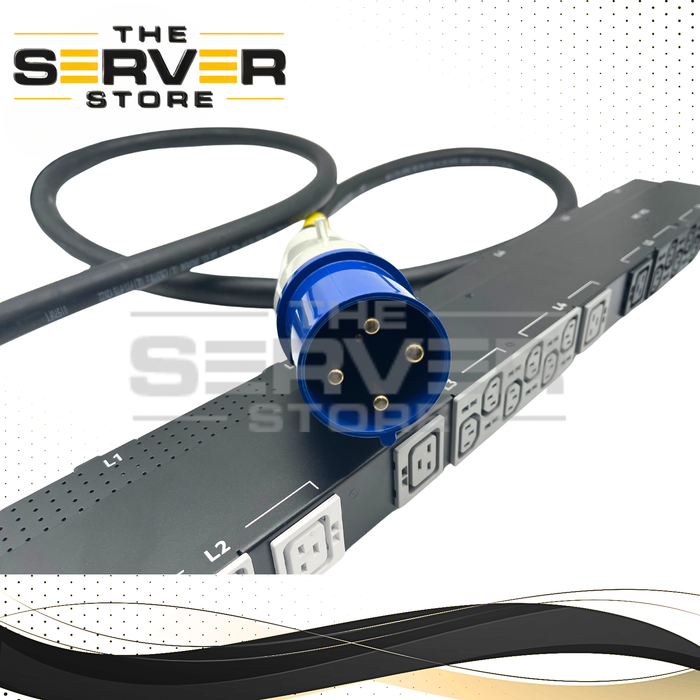

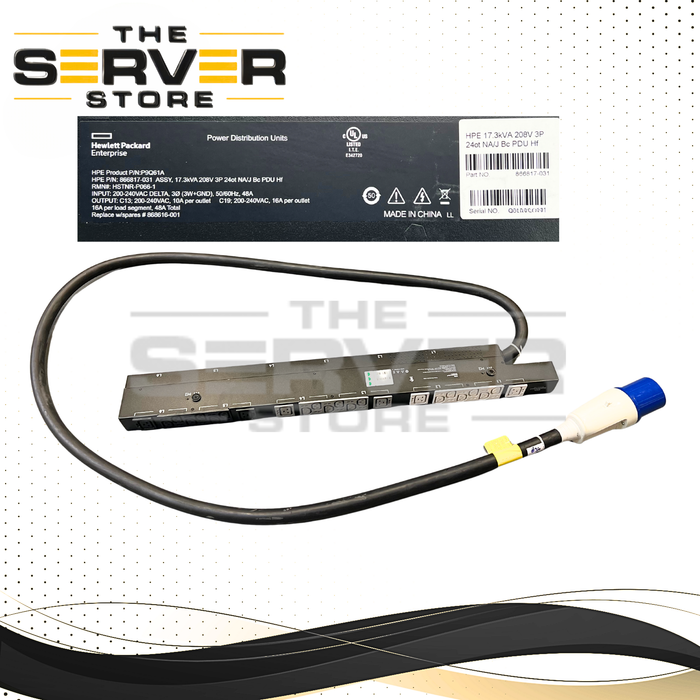

HPE G2 Basic 3PH 17.3kVA / 60309 60A 18xC13 6xC19 PDU 866817-031 P9Q61A
The HPE P9Q61A is a high-density G2 Basic 3-Phase Power Distribution Unit (PDU) engineered for enterprise rack environments requiring reliable, high-capacity power delivery. Designed for North American and Japanese data centers, this unit provides efficient power distribution with a compact vertical (0U) form factor.
Related Part Numbers
866817-031, P9Q61A, HSTNR-P066-1, 868616-001
Core Technical Specifications
- Model: HPE G2 Basic 3-Phase PDU
- Power Capacity: 17.3 kVA
- Input Voltage: 200–208V AC (3-Phase Delta)
- Input Current: 60A (Rated) / 48A (Derated for continuous load)
- Input Plug: IEC 60309, 60A, 4-Wire (3P+E)
Outlet Configuration
-
Total Outlets: 24
- (18) IEC C13
- (6) IEC C19
Electrical Protection
-
Circuit Breakers:
(6) 2-pole, 20A breakers for balanced load distribution and protection
Physical & Environmental
- Form Factor: 0U Vertical (Half-Height)
- Dimensions: Approx. 36" (H) x 2" (W) x 4.4" (D)
- Mounting: Tool-less mounting (button and keyhole compatible with HPE racks)
- Operating Temperature: Up to 60°C (140°F)
Key Features
-
High-Density Power Distribution:
Supports multiple servers and network devices within a single rack -
Color-Coded Outlets & Breakers:
Simplifies phase balancing and power path identification -
Locking Cable Support:
Compatible with IEC locking power cords to prevent accidental disconnections -
Compact Design:
0U vertical installation preserves valuable rack space -
Enterprise Reliability:
Built for continuous operation in high-demand data center environments
Compatibility
- Designed for HPE Advanced and Enterprise racks
- Compatible with standard 19-inch data center racks supporting vertical PDUs
- Suitable for servers, storage, and networking equipment using C13/C19 connectors
Important Notes
- This is a Basic PDU (no remote monitoring or metering features)
- Requires 3-phase 208V power source with IEC 60309 60A input
- Ensure proper load balancing across phases to maximize efficiency and safety
Summary
The HPE P9Q61A 17.3kVA G2 Basic PDU is a robust and space-efficient power distribution solution for enterprise racks. With a high outlet count, reliable circuit protection, and support for 3-phase power, it is ideal for dense server deployments requiring consistent and scalable power delivery.
