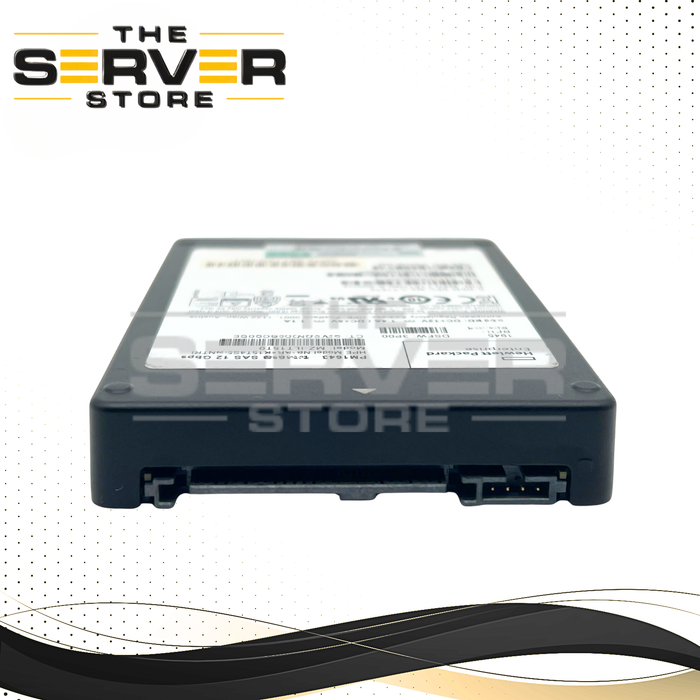

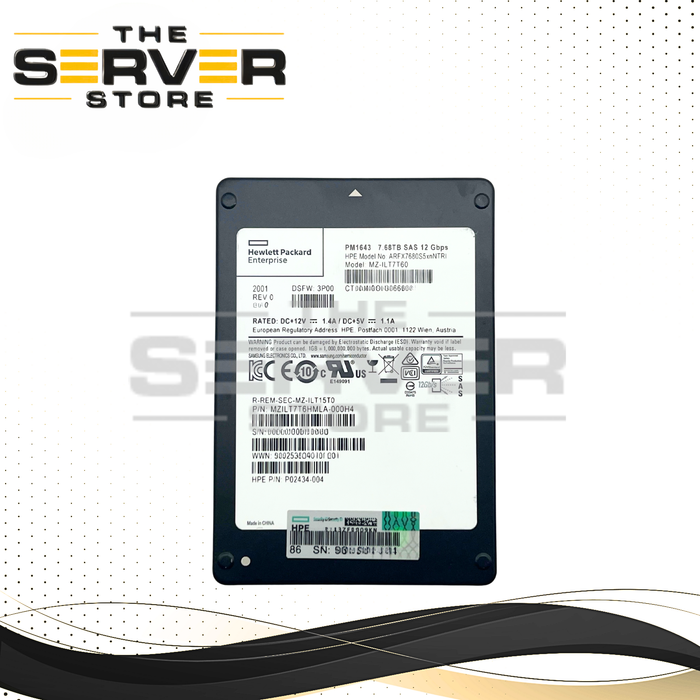

HPE 7.68TB SAS 12G RI SFF 2.5" 15mm SED SSD Samsung PM1643 Series MZ-IL7T60 P02434-004
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P02434-004 |
| Manufacturer | HPE / Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Samsung PM1643 Series MZ-IL7T60 |
| Form Factor | SFF 2.5" SSD (Tray Not Included) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 7.68TB SAS 12G RI SFF 2.5" SSD Samsung PM1643 Series MZ-ILT7T60 P02434-004
Product Description
Expand your enterprise storage capabilities with this genuine HPE 7.68TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, powered by the proven Samsung PM1643 Series architecture. Designed for mission-critical environments, this enterprise-class SSD delivers exceptional performance, reliability, endurance, and capacity for virtualization, cloud infrastructure, database acceleration, software-defined storage, and high-performance computing applications.
Featuring a 12Gb/s Dual-Port SAS interface and a compact 2.5-inch Small Form Factor (SFF), this SSD offers enterprise-grade storage performance while maintaining compatibility with a wide range of HPE servers, storage arrays, and enterprise platforms. The HPE firmware version provides full compatibility with HPE Smart Carrier environments and integrates seamlessly with HPE server management systems.
Whether you are upgrading an existing storage array or expanding your data center infrastructure, the HPE P02434-004 delivers the performance and reliability required for demanding enterprise workloads.
Key Features
- Genuine HPE Enterprise SSD
- Samsung PM1643 Series Architecture
- 7.68TB Storage Capacity
- SAS 12Gb/s Dual-Port Interface
- 2.5" Small Form Factor (SFF)
- Read Intensive (RI) Workload Rated
- Enterprise-Class Reliability
- Hot-Plug / Hot-Swap Compatible
- Power Loss Protection (PLP)
- AES 256-Bit Hardware Encryption Support
- Compatible with HPE Smart Carrier Systems
- Optimized for Data Center and Virtualization Environments
Technical Specifications
- Manufacturer: HPE
- OEM Manufacturer: Samsung
- Series: PM1643
- HPE Part Number: P02434-004
- Samsung Model: MZ-ILT7T60
- Capacity: 7.68TB
- Form Factor: 2.5" SFF
- Drive Height: 15mm
- Interface: SAS 3.0 12Gb/s
- Port Configuration: Dual Port SAS
- NAND Type: Enterprise 3D TLC V-NAND
- Sector Format: 512 Native
- Workload Type: Read Intensive (RI)
- Hot-Swap Support: Yes
- Encryption: AES 256-Bit
- Power Loss Protection: Yes
- MTBF: 2,000,000 Hours
- Endurance: 1 DWPD
- Enterprise Grade: Yes
Performance Specifications
- Sequential Read: Up to 2,100 MB/s
- Sequential Write: Up to 2,000 MB/s
- Random Read Performance: Up to 400,000 IOPS
- Random Write Performance: Up to 70,000 IOPS
- Optimized for Read Intensive Workloads
Power Specifications
- Operating Voltage: 5V ±5%, 12V ±5%
- Maximum Active Power Consumption: Up to 13.5W
- Typical Idle Power Consumption: Approximately 5W
- Operating Temperature: 0°C to 70°C
Compatible Part Numbers
- P02434-004
- ARFX7680S5xnNTRI
- MZ-ILT7T60
- MZILT7T6HMLA-000H4
- MZILT7T6HMLA
- P08736-001
- P08727-001
Compatible HPE Servers
HPE ProLiant Gen9 / Gen10 / Gen10+ / Gen11 / Gen12
- DL160
- DL180
- DL320
- DL360
- DL380
- DL385
- DL560
- DL580
- ML110
- ML150
- ML350
HPE Apollo Systems
- Apollo 2000
- Apollo 4200
- Apollo 4500
- Apollo 6000
HPE Synergy
- Synergy 480
- Synergy 660
- Synergy D3940 Storage Module
HPE Blade Systems
- BL460c
- BL465c
- BL660c
Compatible HPE Storage Platforms
- HPE Primera 600 Series
- HPE 3PAR StoreServ 8000 Series
- HPE 3PAR StoreServ 9000 Series
- HPE 3PAR StoreServ 20000 Series
- HPE StoreEasy 1830
- HPE StoreEasy 1840
- HPE StoreEasy 1850
- HPE StoreEasy 1860
- HPE D3700 Storage Enclosures
- HPE D3710 Storage Enclosures
Compatible SAS RAID & HBA Controllers
HPE Smart Array Controllers
- P408i-a
- P408i-p
- P816i-a
- E208i-a
- P440ar
- P840
- MR216i
- MR416i
Broadcom / LSI Controllers
- 9300-8i
- 9400-8i
- 9500-8i
- 9600-16i
Cross-Platform Compatibility
This SSD can also be utilized in non-HPE enterprise systems that support standard 2.5" SAS drives, including:
- Dell PowerEdge R640
- Dell PowerEdge R740
- Dell PowerEdge R650
- Dell PowerEdge R750
- Dell PowerEdge R660
- Dell PowerEdge R760
- Supermicro SuperServer Platforms
- Supermicro BigTwin Platforms
- Lenovo ThinkSystem Servers
- Cisco UCS Servers
- Any enterprise platform supporting 12Gb/s SAS drives
Package Includes
- HPE 7.68TB SAS 12G RI SSD
- HPE Smart Carrier Tray (if pictured)
Server, controller, cables, and additional accessories are not included unless otherwise stated.
