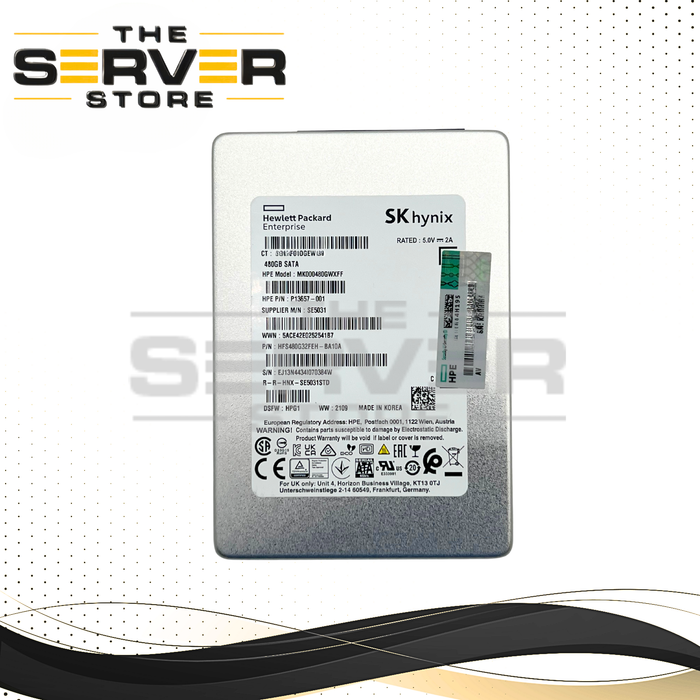

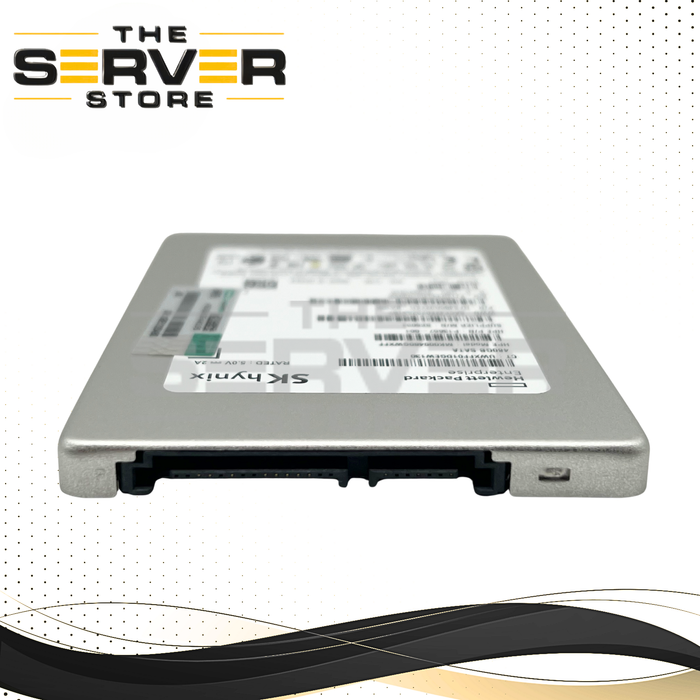

HPE 480GB SATA 6G MU SFF 2.5" SSD SK Hynix SE5031 Series MK000480GWXFF P13657-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 480GB SATA 6G Mixed Use (MU) SFF 2.5" SSD SK Hynix SE5031 HFS480G32FEH-BA10A MK000480GWXFF P13657-001 (Tray Not Included)
The HPE P13657-001 is a high-end enterprise solid-state drive featuring 480GB of storage capacity, built on the reliable SK Hynix SE5031 platform and enhanced with HPE Digitally Signed (DS) Firmware for secure server authentication, data path integrity, and advanced lifecycle monitoring. Designed for demanding enterprise environments, this Mixed Use (MU) SSD delivers the ideal balance of read and write performance for virtualization, database servers, cloud infrastructure, RAID arrays, and business-critical applications.
Utilizing a SATA 6Gb/s (AHCI) interface and 3D TLC NAND flash memory, the drive provides consistent enterprise-class performance with sequential transfer rates up to 510 MB/s read and 430 MB/s write, along with up to 72,000 random read IOPS and 50,000 random write IOPS. With an endurance rating of up to 7.4 DWPD and 6,480 TBW, this SSD is engineered for intensive workloads requiring exceptional reliability and durability.
This listing includes the bare SSD only. The original HPE Smart Carrier (SC) tray/caddy is NOT included. The drive can be installed into a compatible HPE carrier or third-party 2.5-inch SATA drive tray as required.
Key Features
- 480GB Enterprise Solid State Drive
- SATA III 6Gb/s Interface
- 2.5-Inch Small Form Factor (SFF)
- 7mm Drive Height
- Mixed Use (MU) Workload Class
- SK Hynix SE5031 Enterprise Platform
- HPE Digitally Signed Firmware
- Multi-Vendor 3D TLC NAND Flash
- Up to 510 MB/s Sequential Read
- Up to 430 MB/s Sequential Write
- Up to 72,000 Read IOPS
- Up to 50,000 Write IOPS
- 7.4 DWPD Enterprise Endurance
- 6,480 TBW Lifetime Endurance Rating
- Hot-Swap Compatible
- SmartSSD Wear Gauge Support
- Low Power Consumption Design
- Tray/Caddy Not Included
Technical Specifications
- Manufacturer: Hewlett Packard Enterprise (HPE)
- OEM Manufacturer: SK Hynix
- Series: SK Hynix SE5031
- HPE Spare Part Number: P13657-001
- HPE Option Kit Number: P13658-B21
- HPE Base Model: MK000480GWXFF
- OEM Model: HFS480G32FEH-BA10A
- Capacity: 480GB
- Interface: SATA 6Gb/s
- Protocol: AHCI
- Port Configuration: Single Port
- Form Factor: 2.5" SFF
- Height: 7mm
- Flash Type: 3D TLC NAND
- Workload Type: Mixed Use (MU)
- Sequential Read Speed: Up to 510 MB/s
- Sequential Write Speed: Up to 430 MB/s
- Random Read Performance: Up to 72,000 IOPS
- Random Write Performance: Up to 50,000 IOPS
- Endurance Rating: 7.4 DWPD
- Total Bytes Written (TBW): 6,480 TB
- Peak Power Consumption: 3.56W
- Idle Power Consumption: 1.14W
- Firmware: HPE Digitally Signed (DS)
- Telemetry Support: HPE SmartSSD Wear Gauge
- Hot Swap Support: Yes
Alternate Part Numbers
- P13657-001
- P13658-B21
- MK000480GWXFF
- HFS480G32FEH-BA10A
- SK Hynix SE5031
Compatibility
Native HPE ProLiant Gen9 & Gen10 Compatibility
Compatible with a wide range of HPE servers utilizing 2.5-inch SFF drive bays, including:
HPE ProLiant DL Series
- DL20 Gen10
- DL160 Gen10
- DL180 Gen10
- DL325 Gen10
- DL360 Gen9 / Gen10
- DL380 Gen9 / Gen10
- DL385 Gen10
- DL560 Gen9 / Gen10
- DL580 Gen9 / Gen10
HPE ProLiant ML Series
- ML30 Gen10
- ML110 Gen10
- ML350 Gen9 / Gen10
HPE Apollo Systems
- Apollo 4200 Gen10
- Apollo 4500 Gen9
- XL220a Gen9
- XL230a Gen9
HPE Synergy
- Synergy 480 Gen10
Gen10 Plus / Gen11 / Gen12 Deployment
The SSD itself remains electrically compatible with newer HPE server generations. However, Gen10 Plus, Gen11, and Gen12 systems utilize the newer Basic Carrier (BC) design instead of the older Smart Carrier (SC). The drive may be transferred into a compatible HPE Basic Carrier for installation in these systems.
Cross-Platform Compatibility
Because the underlying drive is a standard 2.5-inch 7mm SATA enterprise SSD, it can also be deployed in:
- Dell PowerEdge Servers
- Lenovo ThinkSystem Servers
- Supermicro Servers
- Custom Enterprise Storage Platforms
- Standard SATA Storage Arrays
When installed in non-HPE environments, storage functionality remains fully operational. However, some management utilities such as Dell iDRAC or Lenovo XClarity may report the drive as a third-party or non-certified component due to the embedded HPE firmware signature.
Part Number: P13657-001
Option Kit: P13658-B21
Model: MK000480GWXFF
OEM Model: HFS480G32FEH-BA10A
Capacity: 480GB
Interface: SATA 6Gb/s
Form Factor: 2.5" SFF (7mm)
Series: SK Hynix SE5031
Firmware: HPE Digitally Signed (DS)
Condition: Enterprise SSD, Tested Working, Tray Not Included.
