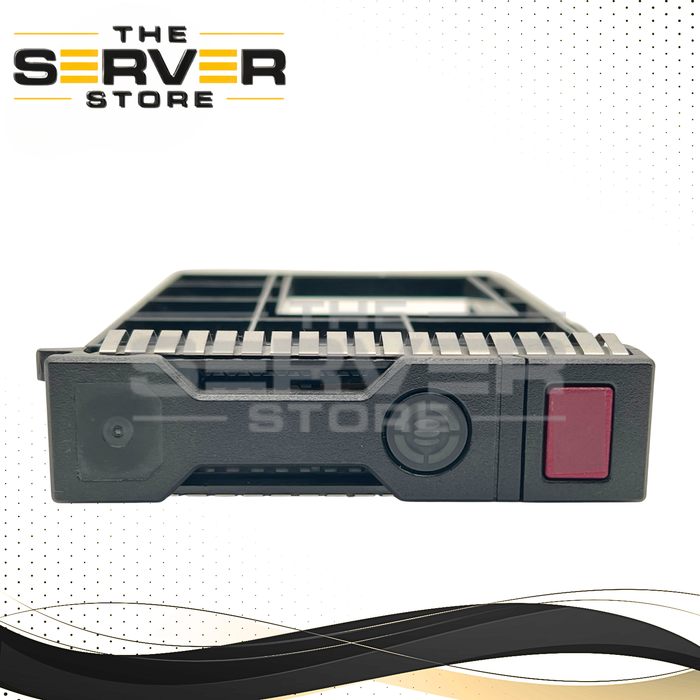

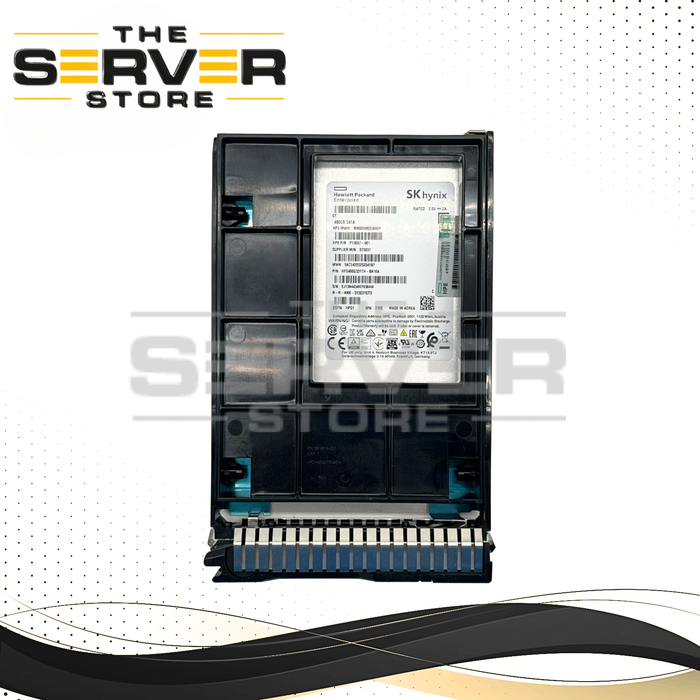

HPE 480GB SATA 6G MU 2.5" SSD SK Hynix SE5031 Series for ProLiant Server G8 G9 G10 (HPE LFF SCC Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 480GB SATA 6G MU 2.5" SSD SK Hynix SE5031 Series for ProLiant Server G8 G9 G10 (HPE LFF SCC Tray Included)
The HPE 480GB SATA 6Gb/s Mixed Use (MU) Enterprise Solid State Drive is designed for HPE ProLiant Gen8, Gen9, and Gen10 servers, delivering reliable enterprise storage performance for virtualization, databases, cloud infrastructure, RAID arrays, and other business-critical applications. Built on the proven SK Hynix SE5031 enterprise SSD platform, this drive combines enterprise-grade endurance, low latency, and consistent performance for demanding data center environments.
Featuring HPE Digitally Signed Firmware (DS), the SSD provides secure firmware validation, seamless integration with HPE systems, and compatibility with HPE storage monitoring tools. Utilizing 3D TLC NAND flash memory, the drive is optimized for mixed-use workloads that require a balanced combination of read and write performance.
This configuration is installed in an HPE Large Form Factor (LFF) Smart Carrier Converter (SCC) Tray, allowing the 2.5-inch SSD to be deployed in compatible 3.5-inch LFF drive bays commonly found in HPE ProLiant Gen8, Gen9, and Gen10 servers. The SCC carrier supports hot-plug functionality and enables enterprise SSD performance in systems configured for LFF storage.
Key Features
- 480GB Enterprise-Class SSD
- SATA III 6Gb/s Interface
- Mixed Use (MU) Workload Optimized
- SK Hynix SE5031 Enterprise SSD Platform
- HPE Digitally Signed Firmware
- 3D TLC NAND Flash Technology
- 2.5-Inch Enterprise SSD
- HPE LFF Smart Carrier Converter (SCC) Tray Included
- Fits 3.5-Inch HPE LFF Hot-Plug Drive Bays
- Hot-Pluggable Design
- Low Latency Enterprise Performance
- Ideal for Virtualization, Database, RAID, and Cloud Environments
Technical Specifications
- Manufacturer: Hewlett Packard Enterprise (HPE)
- OEM Manufacturer: SK Hynix
- Series: SK Hynix SE5031
- Model Number: MK000480GWXFF
- OEM Model: HFS480G32FEH-BA10A
- Capacity: 480GB
- Interface: SATA 6Gb/s
- Protocol: AHCI
- Port Type: Single Port
- Drive Form Factor: 2.5-Inch SFF
- Drive Height: 7mm
- Carrier Type: HPE LFF Smart Carrier Converter (SCC)
- Installed Bay Size: 3.5-Inch LFF
- Flash Type: 3D TLC NAND
- Workload Classification: Mixed Use (MU)
- Sequential Read Performance: Up to 510 MB/s
- Sequential Write Performance: Up to 430 MB/s
- Random 4K Read Performance: Up to 72,000 IOPS
- Random 4K Write Performance: Up to 50,000 IOPS
- Endurance Rating: Up to 7.4 DWPD
- Total Bytes Written (TBW): Up to 6,480 TB
- Maximum Power Consumption: 3.56W
- Idle Power Consumption: 1.14W
- Firmware: HPE Digitally Signed (DS)
- Hot Swap Support: Yes
Alternate Part Numbers
- MK000480GWXFF
- HFS480G32FEH-BA10A
- SK Hynix SE5031
- HPE 480GB SATA 6G MU SSD
- HPE 480GB SATA Mixed Use Enterprise SSD
- HPE 480GB SATA SSD with LFF SCC Tray
HPE Server Compatibility
HPE ProLiant DL Series
- DL160 Gen8 / Gen9 / Gen10
- DL180 Gen9 / Gen10
- DL320e Gen8
- DL360 Gen8 / Gen9 / Gen10
- DL380 Gen8 / Gen9 / Gen10
- DL560 Gen8 / Gen9 / Gen10
- DL580 Gen8 / Gen9 / Gen10
HPE ProLiant ML Series
- ML110 Gen9 / Gen10
- ML350 Gen8 / Gen9 / Gen10
HPE Apollo Platforms
- Apollo 4200 Gen9 / Gen10
- Apollo 4500 Gen9
- XL220a Gen8 / Gen9
- XL230a Gen9
- d6000 / d6500 Platforms
HPE Blade Systems
- BL460c Gen8 / Gen9
- Supported HPE blade and rack systems utilizing LFF storage bays
Gen10 Plus, Gen11 & Gen12 Compatibility
The underlying SK Hynix SE5031 SSD remains electrically compatible with newer server generations. However, Gen10 Plus, Gen11, and Gen12 platforms typically utilize the Basic Carrier (BC) architecture rather than the legacy Smart Carrier Converter (SCC) configuration. For deployment in newer systems, the SSD may need to be transferred to the appropriate HPE Basic Carrier compatible with the target server.
Cross-Platform Compatibility
When removed from the included HPE LFF Smart Carrier Converter (SCC) Tray, the drive functions as a standard 2.5-inch 7mm SATA enterprise SSD and can be used in supported:
- Dell PowerEdge Servers
- Lenovo ThinkSystem Servers
- Supermicro Servers
- Enterprise Storage Arrays
- Custom SATA-Based Systems
Some third-party systems may identify the drive as an HPE-branded SSD due to the digitally signed firmware, but normal storage functionality remains unaffected.
Model: MK000480GWXFF
OEM Model: HFS480G32FEH-BA10A
Capacity: 480GB
Interface: SATA 6Gb/s
Drive Form Factor: 2.5" SFF (7mm)
Carrier: HPE LFF Smart Carrier Converter (SCC) Tray Included
Installed Bay Size: 3.5" LFF Hot-Plug
Series: SK Hynix SE5031
Firmware: HPE Digitally Signed Firmware
Server Generation Support: Gen8, Gen9, Gen10
Condition: Enterprise SSD with Genuine HPE LFF SCC Tray, Tested Working.
